Loop-Powered, Isolated Toroidal Conductivity Transmitter - TCSMA

• Measuring Range: 0-100,000 uS
• Sensitivity: 0.1% of span
• Repeatability : 0.2% of span
• Power Requirement: 16-35 VDC (2-wire device)
• Response Time: 5 seconds to 90% full scale
• 4-20mA isolated output, loop-powered (16-35V DC)
• Operating Temperature: -20 to 60 deg C
• Operating Humidity: 0-95% R.H. non-condensing

  • Model Number: TCSMA
  • Data Sheet: Date Sheet File
- +
  • Loop-Powered, Isolated Toroidal Conductivity Transmitter
  • Loop-Powered, Isolated Toroidal Conductivity Transmitter
  • Loop-Powered, Isolated Toroidal Conductivity Transmitter
Mouse over image to zoom

Product Specification

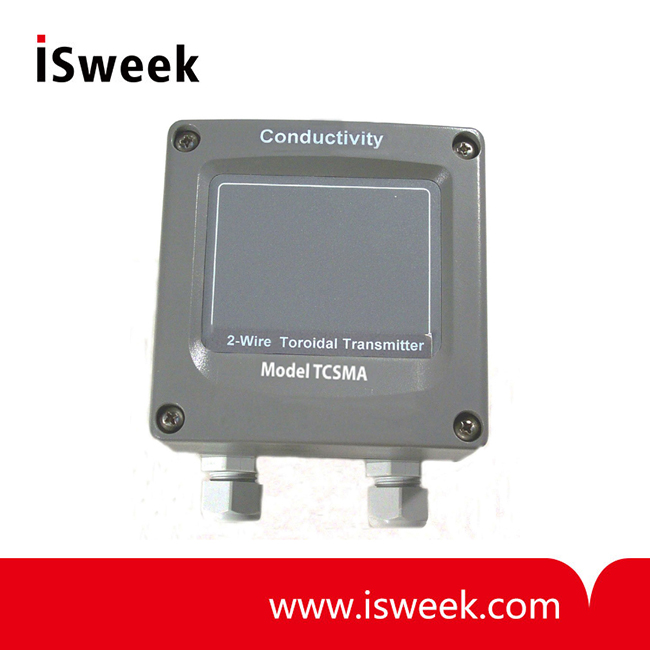

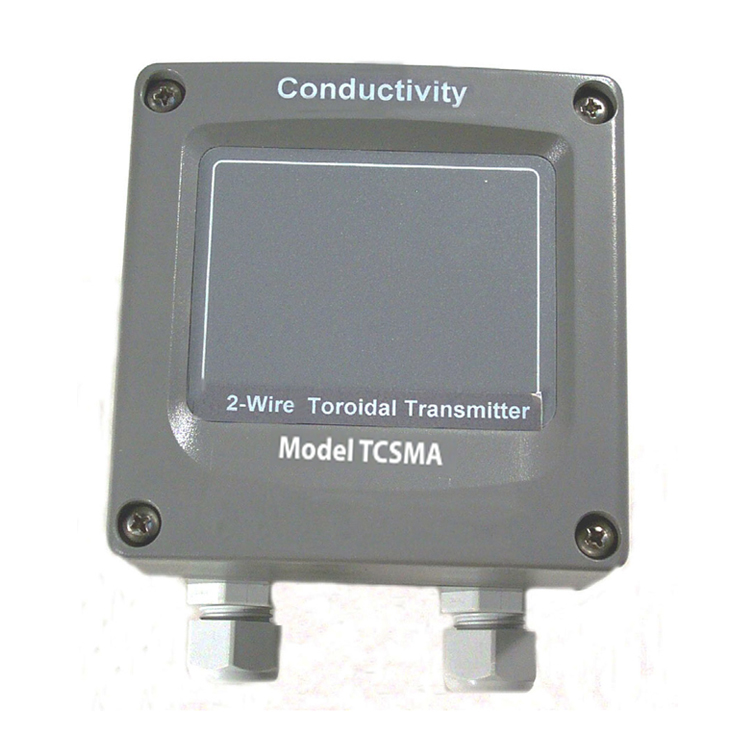

TCSMA - Loop-Powered, Isolated Toroidal Conductivity Transmitter

TCSMA Toroidal Conductivity Transmitter Features
• 4-20mA isolated output, loop-powered (16-35V DC)

• User-adjustable temperature compensation (0-4%/ deg C)
• Selectable measuring ranges

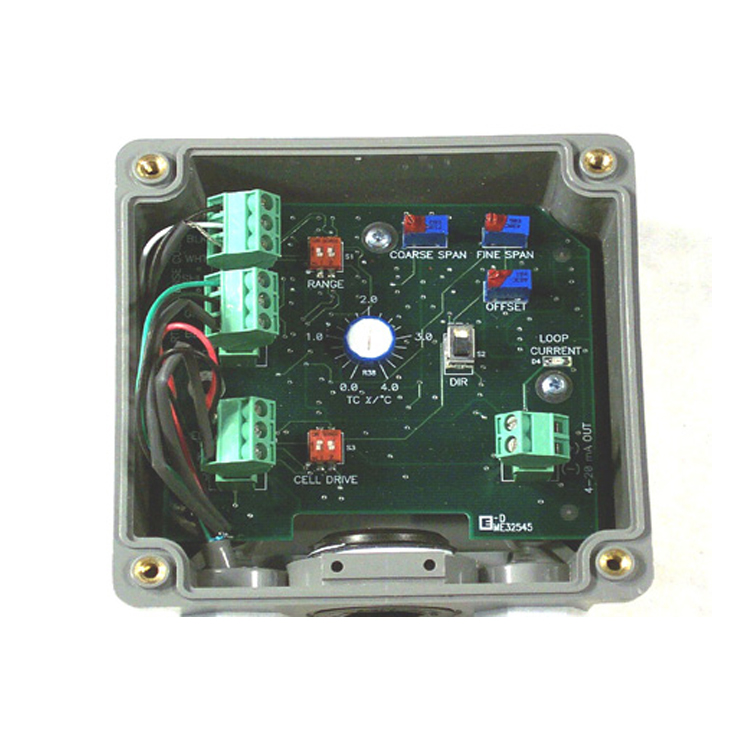

• Adjustable zero and span
• Direct/reverse operation
• Nema 4X enclosure with multiple mounting configurations

TCSMA Toroidal Conductivity Transmitter Description
The TCSMA model is designed for on-line monitoring of water treatment applications and aggressive process chemicals. This blind transmitter is ideally suited for applications where 4-20mA signals are required and reliable instrumentation is critical.

Key features include: selectable measuring ranges, adjustable temperature compensation (%/deg C), isolated output and reversible cell drive.

A Nema 4X (IP66) enclosure provides durability. A variety of mounting choices are available for Wall, Pipe or DIN Rail installation.

Pair the TCSMA with a TCS3020 toroidal sensor for trouble-free service. TCS3000 and TCS3020 sensors are offered in Noryl construction and can be mounted in a custom flow cell (FC95C) for in-line use.

TCSMA Toroidal Conductivity Transmitter Specifications-Transmitter

Measuring Range
 0-100,000 uS, - preset at factory as 4-20mA
Span Range
 2000-2500uS / 2500-15,00uS / 15,000-100,000uS / 100,00-1,000,000uS
 0.1% of span
 0.2% of span
 1% of span for span > 3000uS/cm --- 2% of span for span <3000uS/cm
Zero Drift
 <1% span per month, non-cumulative
Operating Conditions
 -20 to 60 deg C, 0-95% R.H. non-condensing conditions
Temperature Drift
 0.06% of range/deg C, span or zero
 0.2% of range per 24 hours, non-cumulative
Power Requirement
 16-35 VDC (2-wire device)
 Loss 16 V DC
Output Isolation
 Inherently isolated by sensor design
 NEMA 4X (IP66) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion
 resistant. Dimensions = 4.4" (112mm) H x 4.4" (112mm) W x 3.5" (89mm) D.
 1lb (0.45Kg)
Conduit Openings
 2 each PG-9. Cord grips included.
Temperature Input
 Pt1000RTD. Compensation adjustable from 0.0%/deg C to 4.0%/deg C
Maximum Cable Length
 200ft. (61.0m)
Response Time
 5 seconds to 90% full scale

TCSMA Toroidal Conductivity Transmitter Ordering Information

Part Number
Blind, Loop-powered, 4-20mA toroidal conductivity transmitter (16-35VDC power supply not included)
Keyed Noryl toroidal conductivity sensor. Includes 20ft of cable and tinned wire terminations
Keyed CPVC flow cell for TCS3020. Includes nut and o-ring seal.
