Cabinet mounted PH / ORP Analyzer - PH-160/PH-620

• PH measuring range: 0.00 ~ 14.00pH​
• ORP measuring range: -1000mV ~ +1000mV​
• ​Switch control​: High and low 2 points alarm​
• Output: 4~20mA/Rs485
• Digital temperature compensation

  • Model Number: PH-160/PH-620
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Cabinet mounted PH / ORP Analyzer
  • Cabinet mounted PH / ORP Analyzer
Mouse over image to zoom

Product Specification

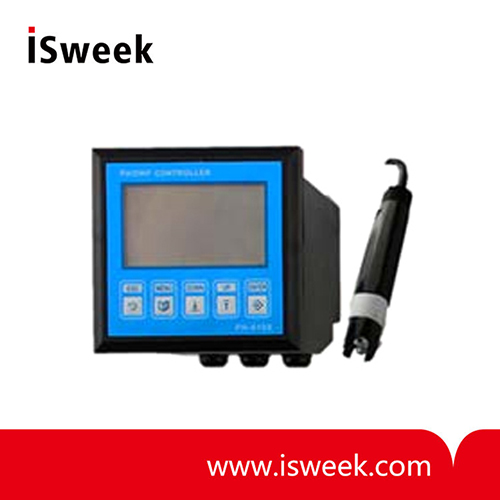

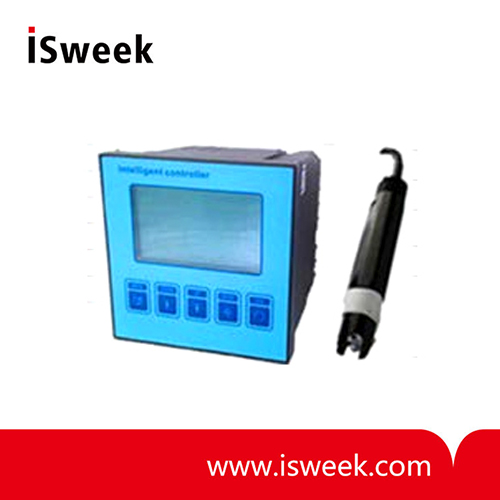

PH-160/PH-620 Cabinet Mounted PH / ORP Analyzer

This product is a cost-effective type of industrial Online pH / ORP measurement and control instruments, digital temperature compensation, 4 ~ 20mA current output, suitable for chemical, oil refining, paper, sugar, metallurgy, power generation, pharmaceutical and other industrial sectors and general on-line monitoring and control of industrial water.


PH-160/PH-620 Cabinet Mounted PH / ORP Analyzer Technical  Parameters

Model
PH-160
PH-620
Product picture


PH measuring range
0.00 ~ 14.00pH
0.00 ~ 14.00pH
ORP measuring range
-1000mV ~ +1000mV
-1000mV ~ +1000mV
Working temperature
pH: 0 ~ 60°C
ORP: 0 ~ 60°C
pH: 0 ~ 65°C/100°C
ORP: 0 ~ 65 °C
Switch control
High and low 2 points alarm
High and low 2 points alarm
Output
4 ~ 20mA/Rs485
4 ~ 20mA/Rs485
