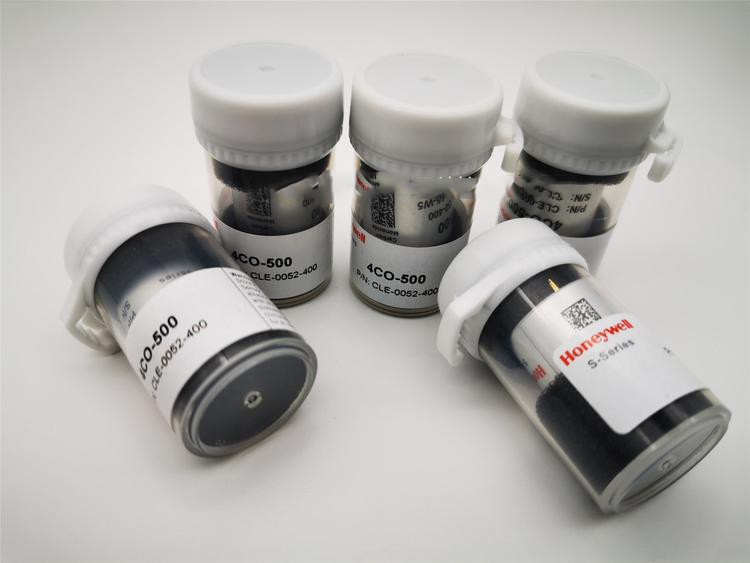

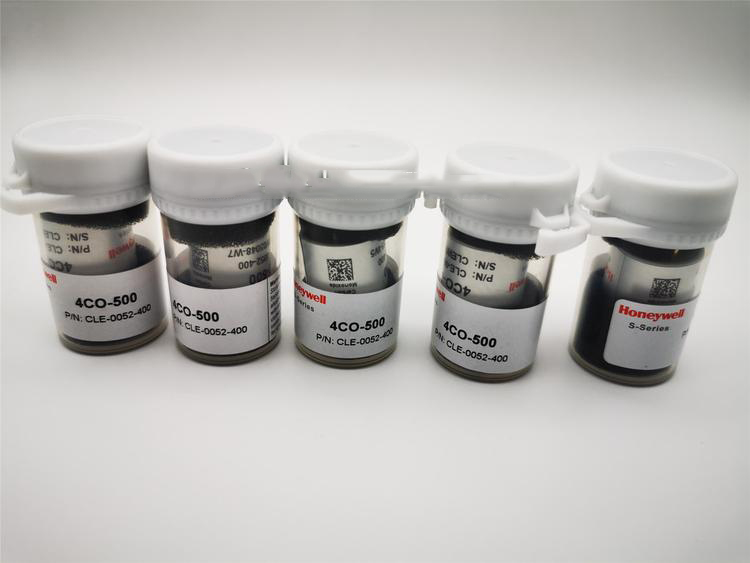

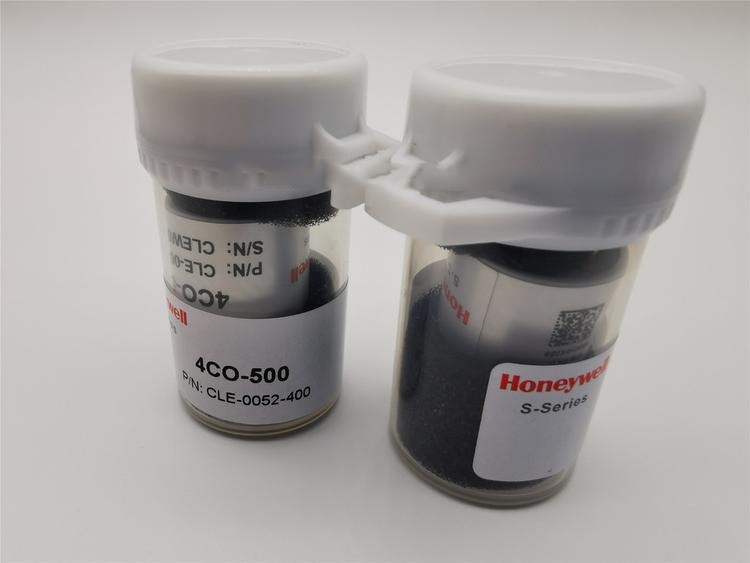

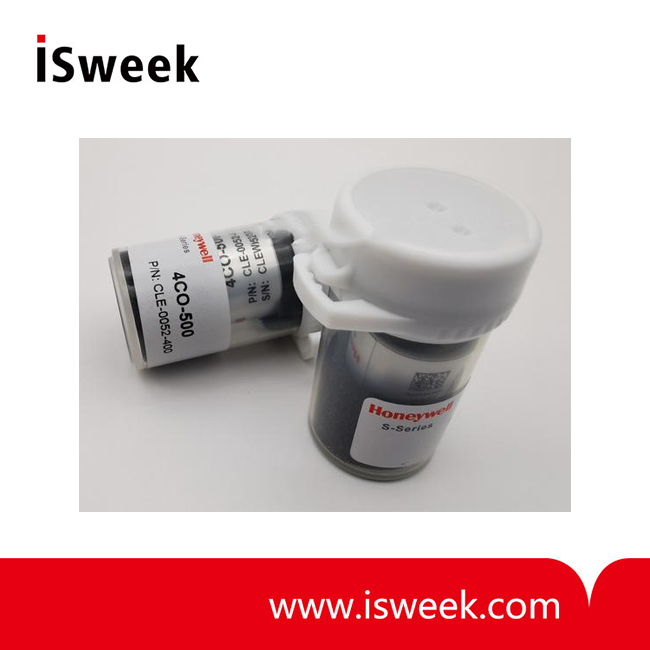

Carbon Monoxide Sensor - 4CO-500

Temperature Range: -20 oC to 50 oC
Operating Humidity:15 to 90 %RH non-condensing
Pressure Range:90 to 110 kPa
Bias Potential:0 mV
Storage Life:6 months in sealed container

  • Model Number: 4CO-500
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Carbon Monoxide Sensor
  • Carbon Monoxide Sensor
  • Carbon Monoxide Sensor
  • Carbon Monoxide Sensor
Mouse over image to zoom

Product Specification

Performance Characteristics:

Part Number

CLE-0052-400

Nominal Range

0 to 500 ppm

Maximum Overload

2000 ppm

Sensitivity

0.070±0.015µA/ppm

Baseline20 ℃)

<±0.2 µA

Baseline Drift-20 to 40 ℃)

0 to 3 ppm equivalent

Resolution

1 ppm

Response TimeT90

30 seconds

Linearity

Linear

Long Term Output Drift

< 2% signal/month



Operation Conditions:

Temperature Range

-20 to 50

Operating Humidity

15 to 90 %RH non-condensing

Pressure Range

90 to 110 kPa

Bias Potential

0 mV

Storage Life

6 months in sealed container

Storage Temperature

0 to 20

Expected Operating Life

3 years in air

Warranty

18 months from date of despatch



Physical Characteristics:

Weight

5 g (approx)

Orientation Sensitivity

None




Note: PCB sockets are recommended for the sensor pin connection.Soldering to the sensor should be avoided.
