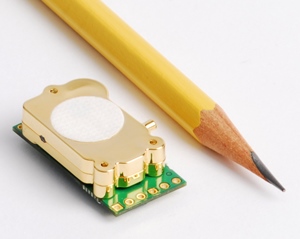

CO2 Sensor Module - T6713

▪A reliable sensor design based on 20 years of engineering and manufacturing expertise.
▪Flexible CO2 sensor platform designed to interact with other microprocessor devices.
▪Small compact design allowing simple product integration. 

Model Number: T6713
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CO₂ Sensor Module（Telaire T6713 Series）：  

Telaire T6713 Series is ideal for applications where Carbon Dioxide（CO₂）levels need to be measured and controlled for indoor air quality and energy saving applications, such as demand control ventilation. 

All units are factory-calibrated to measure CO₂ concentration levels up to 5000 ppm. 

CO₂ Sensor Module（Telaire T6713 Series）Features：

▪An affordable gas sensing solution for OEMs. 

▪Eliminates the need for calibration in most applications with Telaire's patented ABC Logic^TM software. Lifetime calibration warranty. 

▪A reliable sensor design based on 20 years of engineering and manufacturing expertise.

▪Flexible CO₂ sensor platform designed to interact with other microprocessor devices.

▪Small compact design allowing simple product integration. 

CO₂ Sensor Module（Telaire T6713 Series）Specifications：

Method		Non Dispersive Infrared (NDIR), gold plated optics, diffusion sampling (with Telaire's Patented ABC Logic Self Calibrated Algorithm)
Measurement Range^（²^）		0 to 5000 ppm
Dimensions		1.18 in X 0.61 in X 0.34 in (30 mm X 15.6 mm X 8.6 mm)
Accuracy^（¹^）（⁵^）		400-5000 ppm+/-30ppm±3% of reading 400-2000 ppm+/-25 ppm±3% of reading
Temperature Dependence		5 ppm per℃ or 0.5% of the reading per℃, whichever is greater
Stability		< 2% of FS over life of sensor (15 years typical)
Pressure Dependence		0.13% of reading per mm Hg
Calibration Interval		Not required
Response Time		< 3 minutes for 90% step change typical
Signal Update		Every 5 seconds
Warm Up Time		▪ < 2 minutes (operational) ▪ 10 minutes (maximum accuracy)
Operating Conditions		▪ 14°F to 140°F (-10℃ to 60℃) ▪ 0 to 95% RH, non-condensing
Storage Conditions		-22°F to 158°F (-30℃ to 70℃)
Output	Digital^（³^）	I²C slave up to 100kHz  UART@ 19200 Baud w/Modbus support
	PWM Output Mode	Two options: ▪ Cycle period 1002 ms(-1Hz) ▪ 40 us (25kHz)
	Power Supply Requirements^（⁴^）	▪ 4.5-5.5 VDC ▪ Peak200mA（155mAtypical） ▪ Average 25mA（20mAtypical）
	Interface Connections	Designed for six (6) pin male header with 0.1 in（2.54 mm）spacing.Header not included.
