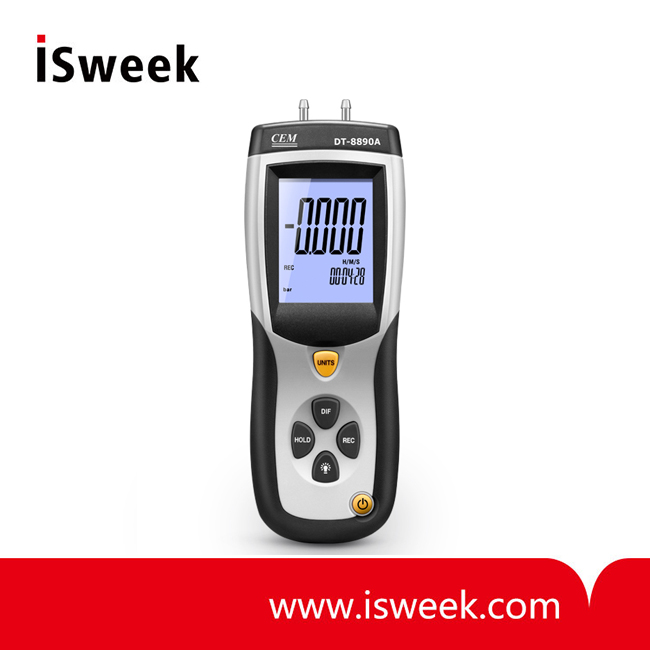

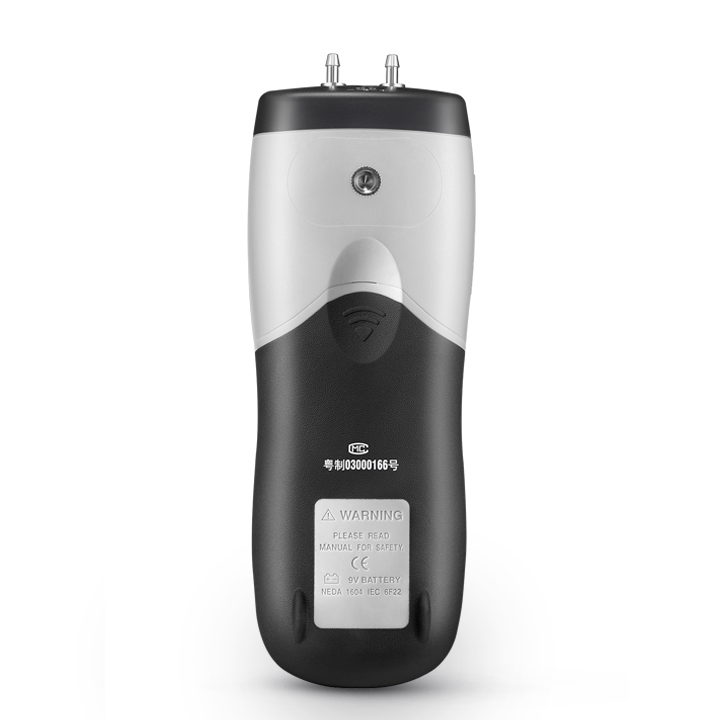

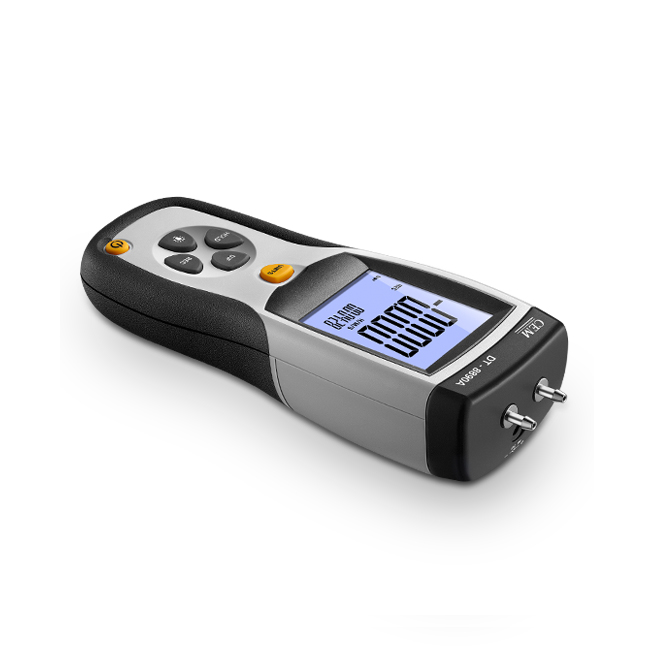

Differential Pressure Manometers - DT-8890/8890A/8890B/8890C

• Large Dual LCD with backlight
• Data Hold
• Max / Min / Avg value with relative time stamp
• Optional USB software
• Zero Adjust, Offset and DIF function
• Low battery indication and Auto Power Off

  • Model Number: DT-8890/8890A/8890B/8890C
Quantity:
- +
  • Differential Pressure Manometers
  • Differential Pressure Manometers
  • Differential Pressure Manometers
  • Differential Pressure Manometers
  • Differential Pressure Manometers
Mouse over image to zoom

Product Specification

Differential Pressure Manometers
The device measures Gauge/Differential Pressure, it features 11 selectable units of measurement: inH2O, psi, bar, mbar, kPa, inHg, mmHg, ozin, ftH2O, cmH2O, kgcm. Additional features including Data Hold, Auto Power Off disabled, and an USB for capturing reading to a PC using optional software. Careful use of this meter will provide years of reliable service.
DT-8890B measures Differential Pressure from -20Pa to +20Pa and connect to the printer
GPT-4379 with USB interface.
DT-8890C measures Gauge/Differential Pressure from -13.86 inH2O to +13.86 inH2O (0.5 psi)

DT-8890/8890A/8890B/8890C Differential Pressure Manometers Features
• Large Dual LCD with backlight
• Data Hold
• Max / Min / Avg value with relative time stamp
• Optional USB software
• Zero Adjust, Offset and DIF function
• Low battery indication and Auto Power Off


Size(HxWxD): 210mm x 75mm x 50mm

Weight: 280g


DT-8890/8890A/8890B/8890C Differential Pressure Manometers Specifications


8890

8890A

8890B

8890C

Accuracy

±0.3%FSO

±0.3%FSO

±2%FSO

±0.3%FSO

Repeatability

±0.2% (Max.+/ -0.5% FSO)

±0.2% (Max.+/ -0.5% FSO)

±0.2% (Max.+/ -0.5% FSO)

±0.2% (Max.+/ -0.5% FSO)

Linearity/Hysteresis

±0.29% FSO

±0.29% FSO

±2% FSO

±0.29% FSO

Pressure Range

±5PSI (±138.3 inH2O)

±2PSI (±55.40 inH2O)

±0.5PSI (±13.83 inH2O)

±20PSI (±554.0 inH2O)

Units and Resolution

inH2O

0.1

inH2O

0.01

inH2O

0.001

inH2O

0.01

PSI

0.001

PSI

0.001



PSI

0.001

mbar

0.1

mbar

0.1

mbar

0.001

mbar

0.01

kPa

0.01

kPa

0.01

Pa

0.1

kPa

0.001

inHg

0.001

inHg

0.001

inHg

0.0001

inHg

0.001

mmHg

0.1

mmHg

0.1

mmHg

0.001

mmHg

0.01

ozin2

0.01

ozin2

0.01



ozin2

0.01

ftH2O

0.01

ftH2O

0.001



ftH2O

0.001

cmH2O

0.1

cmH2O

0.1

cmH2O

0.001

cmH2O

0.01

kgcm

0.001

kgcm

0.001



kgcm

0.001

bar

0.001

bar

0.001



bar

0.001
