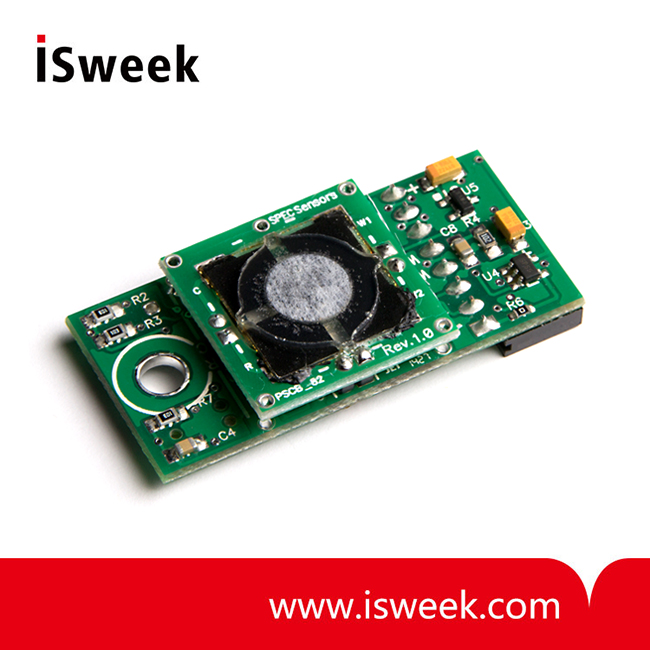

Digital Carbon Monoxide (CO) Gas Sensor Module - DGS-CO 968-034

• Measurement Range: 0 to 1000 ppm
• Resolution: 0.1 ppm
• Zero Accuracy: ± 1 ppm
• Measurement Accuracy: 15% of reading
• Measurement Repeatability: < ± 3% of reading or 2 ppm, whichever is greater
• T90 Response Time (100 ppm step): < 30 seconds (15 seconds typical)

Model Number: DGS-CO 968-034
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

DGS-CO 968-034 Digital CO Sensor Module DESCRIPTION
Easily add Carbon Monoxide sensing to your IoT application with our digital CO sensor module that provides a calibrated and temperature compensated output.

0 to 1000 ppm Carbon Monoxide sensor with digital output

DGS-CO 968-034 Digital CO Sensor Module BENEFITS
• Low Power – 1 mW @ 1 minute sampling
• Fast Response – 15 seconds typical
• Calibrated & Temp. Compensated Output
• Simple Digital UART Interface
• Integrated T & RH Sensors
• Robust 10-year Estimated Lifetime
• ROHS Compliant
• Small form Factor
• UART to USB adapter provided
• Lightweight (< 2 oz.)

DGS-CO 968-034 Digital CO Sensor Module APPLICATIONS
• Life Safety Levels
• Air Quality Levels

DGS-CO 968-034 Digital CO Sensor Module MEASUREMENT PERFORMANCE CHARACTERISTICS
Based on Standard Conditions 25 ºC, 50% RH and 1 atm

Measurement Range	0 to 1000 ppm
Resolution	0.1 ppm
Zero Accuracy	± 1 ppm
Measurement Accuracy	15% of reading
Measurement Repeatability	< ± 3% of reading or 2 ppm, whichever is greater
T90 Response Time (100 ppm step)	< 30 seconds (15 seconds typical)
Power Consumption	1 mW for 1 minute triggered samples 12 mW for continuous sampling 5, 10 30, 60 second intervals
Expected Operating Life	> 5 years (10 years @ 25± 10C; 60 ± 30% RH)
Operating Temperature Range	-20 to 40 °C (-30 to 55 °C intermittent)
Operating Humidity Range	15 to 95% (0 to 100% non-condensing intermittent)
Mechanical Dimensions	1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm)
Weight	< 2 Ounces

DGS-CO 968-034 Digital CO Sensor Module ABSOLUTE MAXIMUM RATINGS

Parameter	Conditions	Min.	Rec.	Max.	Units
Maximum Concentration	Short term exposure	0	1000	5000	ppm
Supply Voltage	Regulated	2.6		3.6	V
Storage Temperature	Vapor sealed @ 50% RH	5	20	30	̊C
Storage Humidity	Non-condensing, vapor sealed	20	50	80	% RH
Storage Pressure	Vapor sealed	0.8	1	1.2	atm
Storage Time	Vapor sealed	-	12	-	Months
Operating Temperature	< 10 hours	-40	-	50	̊C
Operating Humidity	< 10 hours, Non-Condensing	0	-	100	% RH
Operating Pressure	Transient pulses	-0.5	0	0.5	atm
Operating Temperature	Continuous	-30	25	50	̊C
Operating Humidity	Continuous, Non-Condensing	10	50	95	% RH
Operating Pressure	Continuous	0.8	1	1.2	atm
ESD Rating	Human Body Model	2		8	kV
