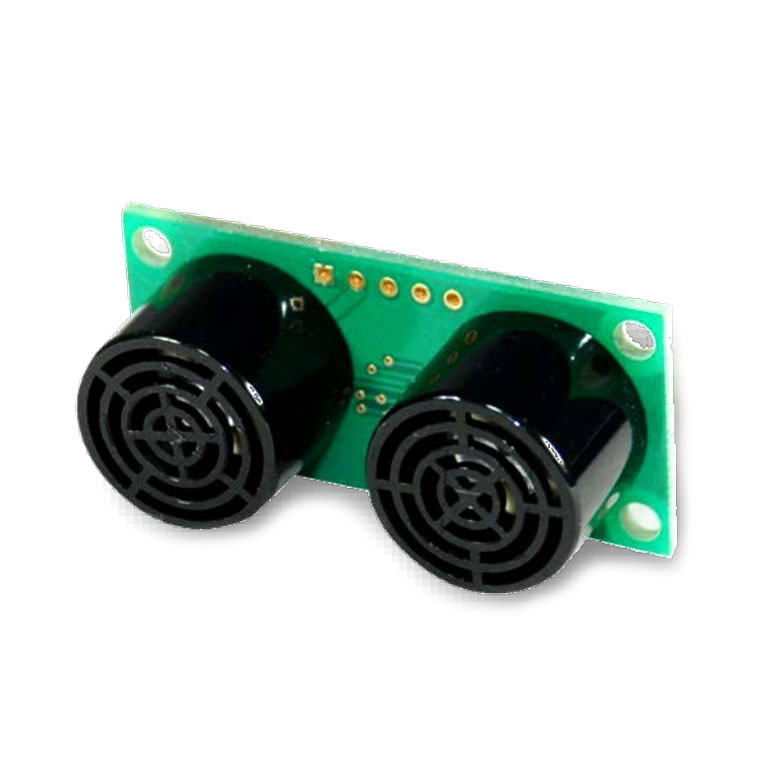

Distance Measurement Interface Boards - HG-LB40C-5V-DM

• Frequency (KHz): 40±2​
• Receiver Output Signal​:
Analog​: ±2 V max at 2.5 V Base Line​
Real Time Pulse​: 4~5 V TTL, All the objects detected​
Distance Pulse​: 4~5 V TTL Only the nearest Object​
• Input DC & Detecting Range: 0~3 m (Conventional, HG-LB40C)​ (5V)​
• Low-power, high-sensitivity module.

  • Model Number: HG-LB40C-5V-DM
  • Data Sheet: Date Sheet File
- +
  • Distance Measurement Interface Boards
  • Distance Measurement Interface Boards
Mouse over image to zoom

Product Specification


Distance Measurement Interface Boards with Combi ASIC Ultrasonic Sensor & Module

HG-LB40C-5V-DM Distance Measurement Interface Boards Features
• Low-power, high-sensitivity module.
• Choose from a wide variety of input/output Mode.
• Auto sensitivity control function as a distance proportional to the distance error captain.
• The same standards as existing foreign products and mutually replaceable.

HG-LB40C-5V-DM Distance Measurement Interface Boards Specification
Frequency (KHz)
Transmit Mode
External Trigger
TTL Pulse
(100~700 ㎲)

Repetition Rate
(10~30 time / sec)

Receiver Output Signal
±2 V max
at 2.5 V Base Line

Real Time Pulse
4~5 V TTL,
All the objects detected

Distance Pulse
4~5 V TTL
Only the nearest Object

Input DC & Detecting Range
(at in front angle flat plate)
Low Voltage Type (5V)
0~3 m
(Conventional, HG-LB40C)
