Dual O2/CO2 Monitor with 10+ Year Sensors - 99039

• Sampling Method & Range​: Diffusion, 0-25% O2, 0-10,000ppm CO2​
• Accuracy​: ±1% of full scale​
• Operating Temperature​: 0 to + 55°C​
• Display​: ¾" backlit LCD digital display​
• Sensor Type​: Long life zirconium oxide sensor for O2 and NDIR for CO2​
• Analog Output​: Analog 4-20mA output. Selectable for either Oxygen or CO2​
• Power Requirements​: 24VDC 350mA​

  • Model Number: 99039
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Dual O2/CO2 Monitor with 10+ Year Sensors
  • Dual O2/CO2 Monitor with 10+ Year Sensors
  • Dual O2/CO2 Monitor with 10+ Year Sensors
  • Dual O2/CO2 Monitor with 10+ Year Sensors
Mouse over image to zoom

Product Specification

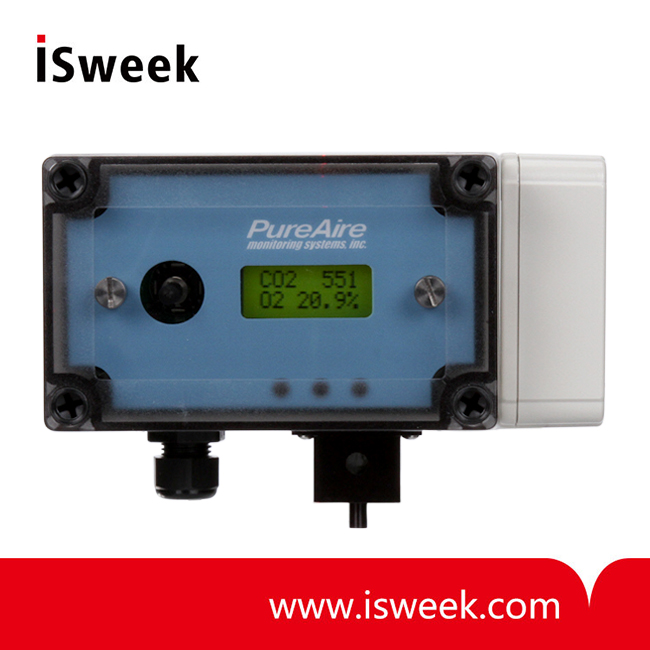

Dual O2/CO2 Monitor with 10+ Year Sensors
Item #: 99039

Dual O2/CO2 Monitor Product Summary
This dual sensor monitor is designed for use in areas containing Helium, Argon, and/or Nitrogen, that contain CO2 as well. It includes all of the top of the line features of our air check oxygen deficiency monitor, though it monitors the level of CO2 in the room as well. It is ideal for use in environments such as breweries, beverage or other bottling plants, pharmaceutical manufacturing facilities, or grow rooms. This monitor contains a 10+ year zirconium oxide sensor.

Dual O2/CO2 Monitor Features
• No maintenance zirconium O2 cell and long life CO2 sensor
• No calibration required for oxygen
• Self-calibrating CO2 sensor
• Local backlit concentration display
• Built-in audible horn
• Built-in visual LED alarm indicators
• Alarm level 1 and 2 for O2 and CO2
• 3 year warranty
• No drift due to environmental or temperature changes

The Dual O2/CO2 Monitor is a compact gas monitoring system that's ideal for the continuous monitoring of both gases simultaneously in N2 gas storage areas, CO2 beverage gas distribution areas, confined spaces, and other locations where low oxygen levels may pose a hazard to personnel. Unlike continuously depleting electrochemical sensor cells, the Dual O2/CO2 exclusive zirconium cell and patented NDIR cell provide stable oxygen and CO2 readings even in areas where temperature, barometric pressure and humidity levels are changing. The Dual O2/CO2 oxygen sensor requires no quarterly calibration or annual maintenance and the CO2 sensor automatically adjusts to ambient levels. Just plug it in and leave it alone.

Dual O2/CO2 Monitor Specifications

Sampling Method & Range
Diffusion, 0-25% O2, 0-10,000ppm CO2
Accuracy
±1% of full scale
Operating Temperature
0 to + 55°C
Display
¾" backlit LCD digital display
Sensor Type
Long life zirconium oxide sensor for O2 and NDIR for CO2
Alarm indicators
Built-in Audible 90dB horn
Orange LED alarm indicator for CO2
Red LED alarm indicator for O2
Signal Outputs
One user adjustable Alarm relay for Oxygen
One user adjustable Alarm relay for CO2
Relays are rated 2 amp 24VDC / 24VAC
Analog Output
Analog 4-20mA output. Selectable for either Oxygen or CO2
Power Requirements
24VDC 350mA
Dimensions
6.5 (W) x 4.5 (H) x 3.25 (D) inches; (160.1 mm x 114.3 mm x 82.5 mm)
Weight
1.6 lbs. (.8 kg)
Enclosure
Polycarbonate
Required calibration
None for Oxygen.
None for CO2 when Auto Cal function is activated.
