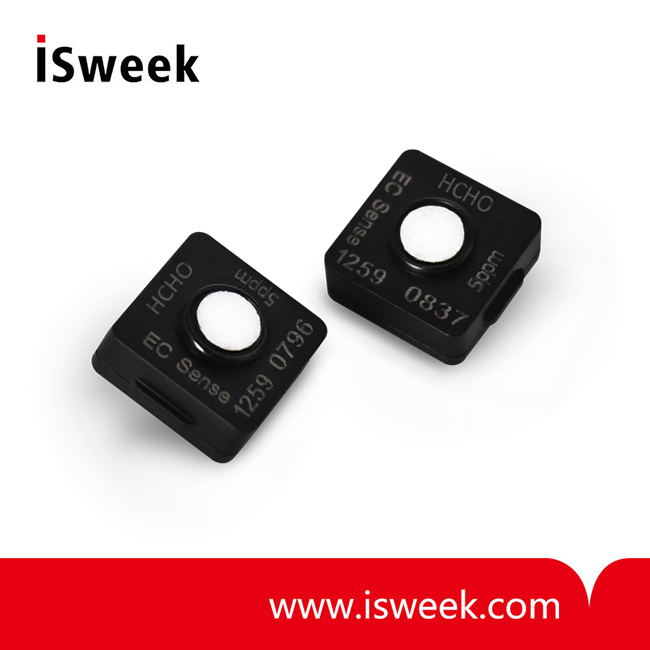

Easy Gas Sensor - ES1-HCHO-100

• Extreme linear response up to high concentration
• Fast response
• Low noise
• No electrolyte leakage
• Low cost at large volumes
• Individually calibrated including test report

Model Number: ES1-HCHO-100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Features：
•Extreme linear response up to high concentration
• Fast response
• Low noise
• No electrolyte leakage
• Low cost at large volumes
•Individually calibrated including test report

Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Typical applications：
• TLVmonitoring
• Indoor Air Aquality

Easy Gas Sensor（ES1-HCHO-100 Formaldehyde）Technical Specification：

Performance
Sensitivity	35±20 nA /ppm
Zero current	± 2 nA
Range	100ppm
Repeatability	1% Lower
Environment
Temperature Range	-20 to 50°C
Humidity Range (non condensing)	10 to 95 % R.H
Pressure Range	800 to 1200hPa
Operation
Operating principle	Amperometric，3-electrode
Bias voltage	0mV
Recommended load resistor	100Ω
Warm up time	< 20s
