Electrochemical Hydrogen Sulfide Gas Sensor (H2S Sensor) - 7H CiTiceL

• Operating Principle: 3-electrode electrochemical
• Measurement Range: 0-200 ppm H2S
• Maximum Overload: 1000 ppm H2S
• Sensitivity: 0.37 ± 0.07 µA/ppm
• Response Time (T90): <35 Seconds at 20°C
• Resolution: 0.25 ppm
• Repeatability: 1% of signal
• Linearity: Linear

  • Model Number: 7H CiTiceL
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

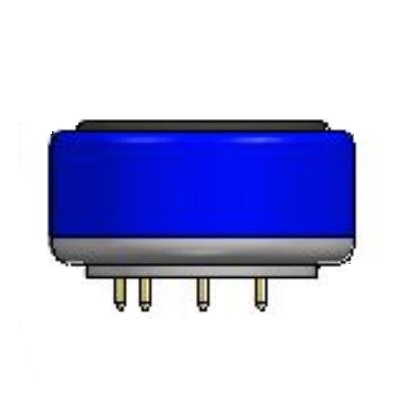

  • Electrochemical Hydrogen Sulfide Gas Sensor (H2S Sensor)
Mouse over image to zoom

Product Specification

7H CiTiceL Hydrogen Sulfide Sensor (H2S Sensor) Key Features & Benefits:
• Robust, industry standard 7-Series packaging
• Compact Size

7H CiTiceL Hydrogen Sulfide Sensor (H2S Sensor) Technical Specifications

MEASUREMENT
Operating Principle 3-electrode electrochemical
Measurement Range 0-200 ppm H2S
Maximum Overload 1000 ppm H2S
Filter None
Sensitivity* 0.37 ± 0.07 µA/ppm
Response Time (T90)* <35 Seconds at 20°C
Baseline Offset (clean air)* -0.6 to +1.9 ppm H2S equivalent
Zero Shift (+20°C to +40°C) < 2 ppm H2S equivalent
Resolution 0.25 ppm (when used with recommended electronics)
Repeatability 1% of signal
Linearity Linear
ELECTRICAL
Recommended Load Resistor 10 Ω
Bias Voltage Not Required
MECHANICAL
Weight 12 g
Housing Material:
  Cap Polycarbonate
  Body ABS
Orientation Any
ENVIRONMENTAL
Operating Temperature Range -40°C to +50°C
Recommended Storage Temp 0°C to 20°C
Operating Pressure Range Atmospheric ± 10%
Pressure Coefficient 0.008 ± 0.002 % signal/mBar
Operating Humidity Range 15 - 90% RH non-condensing
LIFETIME
Long Term Sensitivity Drift <2% signal loss/month
Expected Operating Life Two years in air
Storage Life 6 months in CTL container

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

Poisoning
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments and operation.

When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
