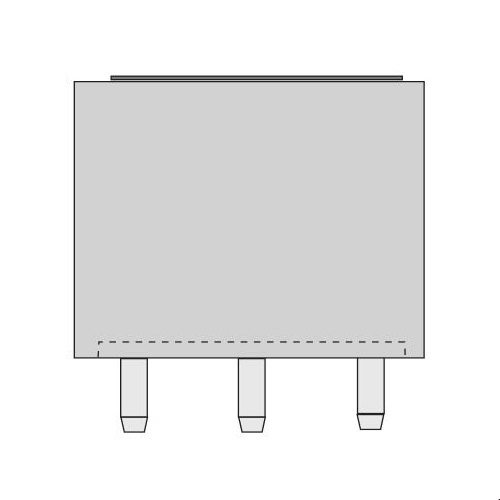

Electrochemical Nitric Oxide Gas Sensor (NO Sensor) - 4NT CiTiceL

• Operating Principle: 3-electrode electrochemical
• Measurement Range: 0-250 ppm NO
• Maximum Overload: 1000 ppm NO
• Resolution (Electronics dependent): 0.5 ppm
• Filter: None
• Sensitivity: 0.40 ± 0.08 mA/ppm
• Response Time (T90): < 40 seconds
• Repeatability: 2% of signal
• Linearity: Linear

  • Model Number: 4NT CiTiceL
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Electrochemical Nitric Oxide Gas Sensor (NO Sensor)
Mouse over image to zoom

Product Specification

4NT CiTiceL Nitric Oxide Gas Sensor (NO Sensor) Key Features & Benefits:
• Industry leading reliability
• Improved performance variability

4NT CiTiceL Nitric Oxide Gas Sensor (NO Sensor) Technical Specifications

MEASUREMENT
Operating Principle 3-electrode electrochemical
Measurement Range 0-250 ppm NO
Maximum Overload 1000 ppm NO
Resolution (Electronics dependent) 0.5 ppm
Filter None
Sensitivity* 0.40 ± 0.08 mA/ppm
Response Time (T90)* < 40 seconds
Baseline Offset (clean air)* 0 to +3 ppm equivalent
Zero Shift (+20°C to +40°C) < 4 ppm equivalent
Repeatability 2% of signal
Linearity Linear
ELECTRICAL
Recommended Load Resistor 10 Ω
Bias Voltage +300 mV
MECHANICAL
Housing Material ABS
Weight 5g (approx.)
Orientation Any
ENVIRONMENTAL
Operating Temperature Range -20°C to +50°C
 Operating Pressure Range 1 atm ± 10%
Operating Humidity Range 15% to 90% RH non-condensing
LIFETIME
Long Term Output Drift < 2% signal drift / month
Recommended Storage Temp 0 to 20°C
Expected Operating Life 2 years in air
Storage Life 6 months in sealed container

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.

Poisoning
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments, and operation.

When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
