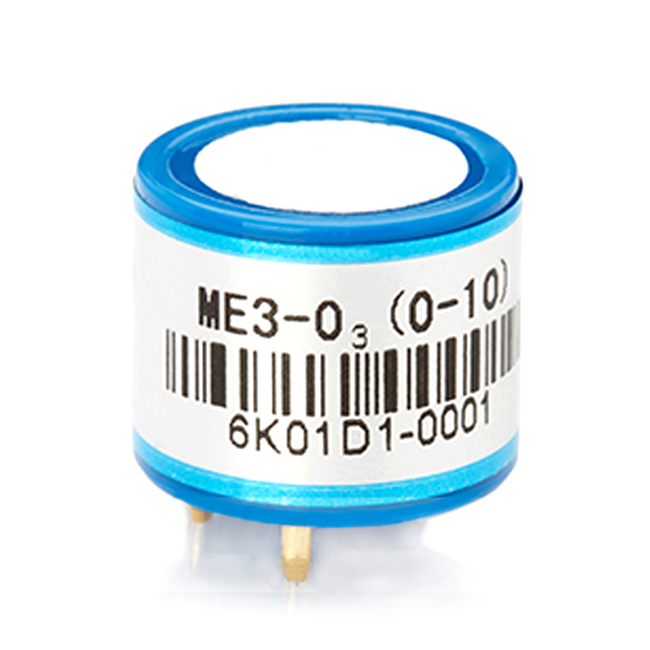

Electrochemical Ozone Sensor (O3 Sensor) 0~20ppm - ME3-O3

• Detection gas: O3
• Measurement Range: 0~20ppm
• Max detecting concentration: 100ppm
• Sensitivity: (0.60±0.15)µA/ppm
• Resolution ratio: 0.02ppm
• Response time (T90): ≤120S
• Repeatability: < 5% output value
• Stability (/month): <2%

  • Model Number: ME3-O3
  • Data Sheet: Date Sheet File
- +
  • Electrochemical Ozone Sensor (O3 Sensor) 0~20ppm
  • Electrochemical Ozone Sensor (O3 Sensor) 0~20ppm
Mouse over image to zoom

Product Specification

ME3-O3 Ozone Sensor (O3 Sensor) Principle Introduction
ME3-O3 electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

ME3-O3 Ozone Sensor (O3 Sensor) Features
• Low consumption
• High precision
• High sensitivity
• Wide linear range
• Good anti-interference ability
• Excellent repeatability and stability

ME3-O3 Ozone Sensor (O3 Sensor) Applications
Widely used in industrial and environmental protection fields

ME3-O3 Ozone Sensor (O3 Sensor) Technical parameters

Item Parameter
Detection gas O3
Measurement Range 0~20ppm
Max detecting concentration 100ppm
Sensitivity (0.60±0.15)µA/ppm
Resolution ratio 0.02ppm
Response time (T90) ≤120S
Bias voltage 0mV
Load resistance (recommend) 10Ω
Repeatability <5% output value
Stability (/month) <2%
Output Linearity linear
Zero drift (-20°C~40°C) 0.2ppm
Storage temperature -20°C~50°C
Storage Humidity 15%~90%RH
Pressure range (kPa) 90-110
Anticipated using life 2 years (In air)
