Epoxy-Sealed NTC Thermistor Series Temperature Sensors - MF5A

• Epoxy enclosed, small in volume, with quick response time and high sensitivity.
• Stable in working, high in reliability and precision.
• Consistent and easy to interchange.
• Precision temperature measurement
• Temperature compensation for electric wire
• Circuit of temperature measurement and control

  • Model Number: MF5A
  • Data Sheet: Date Sheet File
Quantity:
- +

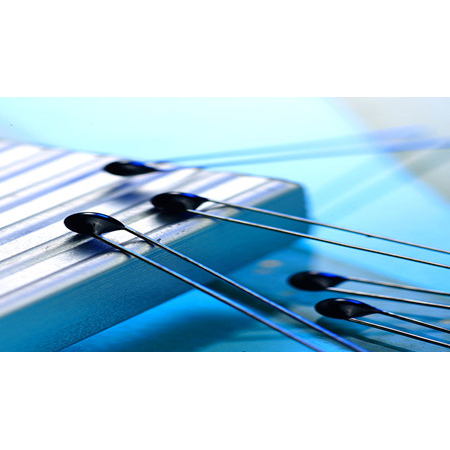

  • Epoxy-Sealed NTC Thermistor Series Temperature Sensors

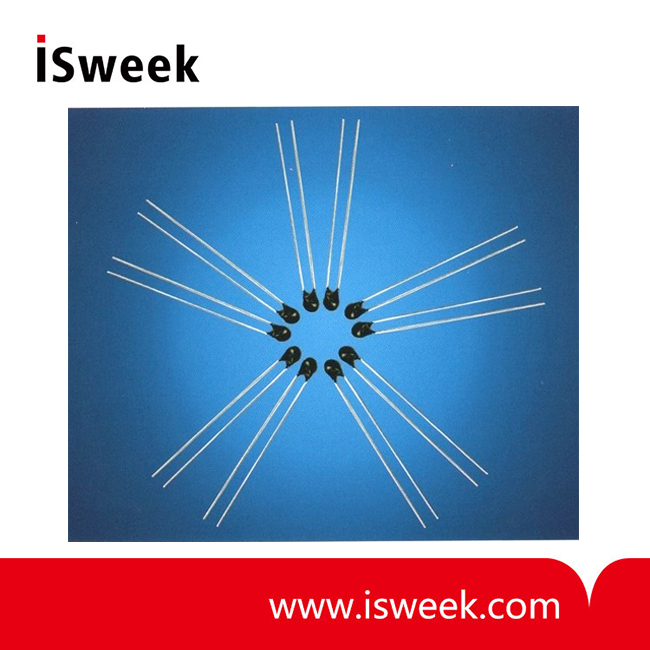

  • Epoxy-Sealed NTC Thermistor Series Temperature Sensors
Mouse over image to zoom

Product Specification

MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Features

• Epoxy enclosed, small in volume, with quick response time and high sensitivity.
• Stable in working, high in reliability and precision.
• Consistent and easy to interchange.



MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Purpose
• Precision temperature measurement
• Temperature compensation for electric wire
• Circuit of temperature measurement and control

MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Application
• Electronic thermometer, electronic calendar, electronic clock temperature display, electronicpresent
• Cooling and heating equipment, heating of constant-temperature electrical appliances.
• Electronic temperature measurement and control circuit of automobile.
• Temperature sensor, temperature meter.
• Medical electronic equipment, electronic washing equipment.
• Molile phone battery and charging electri appliance
• Bread furnace and other small appliances


MF5A Epoxy-Sealed NTC Thermistor Series Description of Product Types and Specifications


(1) KPD — Abbreviations for KePengDa.
(2) MF — Indicates negative temperature (NTC) coefficient thermistor.
(3) 5A — Temperature measurement type epoxy enclosed thermistor.
(4) 103 — Nominal resistance of thermistor, e.g. 103 indicates that the nominal resistance of the thermistor is 10*103 (Ω).
(5) G — Resistance error (precision), e.g. G indicates the error (precision) of the thermistors is ± 2%.
(6) 360 — Material factor B25/50 value of thermistor, e.g.395 indicates the material factor B25/50 value of the thermistor is 395*10K.
(7) F — B25/50 error (precision), e.g. F indicates the B25/50 error (precision) of the thermistor is ±1% .
Note : R25 precision:F (±1%), G (±2%), H (±3%), J (±5%), K (±10%).
           B25/50 precision :F (±1%), G (±2%), H (±3%).


MF5A Epoxy-Sealed NTC Thermistor Series Temperature Sensors Main Technical Parameters

 Parameters  Parameter range  Test conditions
 R25 (nominal resistance value)  500 Ω ~ 1 MΩ  Constant temperature 25 ℃± 0.05 ℃
 R25 Premissible variance (%)  ± 1, ± 2, ± 3, ±5  Constant temperature 25 ℃± 0.05 ℃
 B25/50 (material coefficient)
 (thermal-sensitivity index)
 3000 ~ 5000K  Constant temperature 25 ℃± 0.05 ℃
 Constant temperature  50 ℃± 0.05 ℃
 B25/50 value premissible variance(%)  ± 1, ± 2  Constant temperature 25 ℃± 0.05 ℃
 Constant temperature 50 ℃± 0.05 ℃
 δ(dissipation coefficient)  ≥ 1.5mw/ ℃  Static in still air
 T(thermal time constant)  ≤ 5S  Static in still air
 TA(working temperature)  -40 ℃ ~ +125 ℃
 PN(rated power)  50 mw  Within working temperature
