General Purpose Purity Oxygen Sensor O2 > 21% - PO2-1120

• Sensor Technology: Micro Fuel Cell
• Signal Output: 28 - 52 uA
• Measuring Range: 0 - 100 Percent
• Response Time T90: 13 Seconds
• Accuracy Full Scale: ±1% of Signal
• Repeatability F.S.: ±0.5%
• Operating Temp: 0 to 50ºC
• Humidity: 0 - 100% RH (Non - Condensing)

  • Model Number: PO2-1120
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart

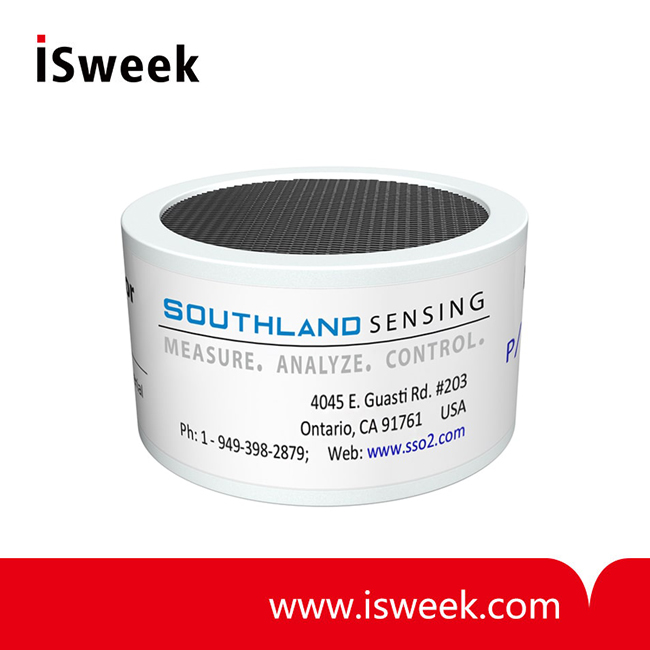

  • General Purpose Purity Oxygen Sensor O2 > 21%
Mouse over image to zoom

Product Specification

PO2-1120 Percent Oxygen Sensor
General Purpose Purity Oxygen Sensor; O2 > 21%. Designed for measuring 100% oxygen purity.

PO2-1120 Percent Oxygen Sensor Direct Replacement Guide
Analytical Industries: GPR-11-120; GPR-11-120OP


PO2-1120 Percent Oxygen Sensor Specifications:

Sensor Technology

 Micro Fuel Cell

Signal Output1

 28 - 52 uA

Measuring Range

 0 - 100 Percent

Response Time T90

 13 Seconds

Accuracy Full Scale2

 ±1% of Signal

Repeatability F.S.

 ±0.5%

Temp Coefficient

 2.54 % /°C

Operating Temp

 0 to 50°C

Storage Temp

 0 to 45°C

Recommended Flow

 0.5 - 2 SCFH

Humidity

 0 - 100% RH (Non - Condensing)

Expected Life3

 120 Months

Storage

 9 Months

Warranty4

 12 Months

PCB Connection

 Center Foil Negative Outer Foil Positive


1. Signal output is measured in air at 25°C, sea level.
2. Accuracy full scale is calculated with constant pressure and temperature & proper calibration (90% O2 value on full scale range). Drastic temperature change can result in a maximum error of ± 10%.
3. Expected life is calculated when O2 is 20.9% @ 25°C, sea level
4. Southland Sensing warrants these sensors for the period noted above to be free from defects in materials and workmanship. Southland Sensing will not be held liable for sensors damaged due to customer neglect.
