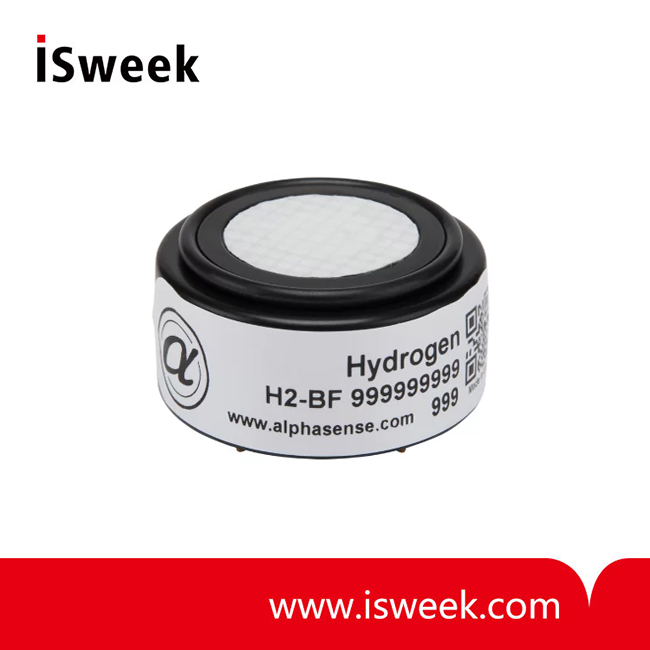

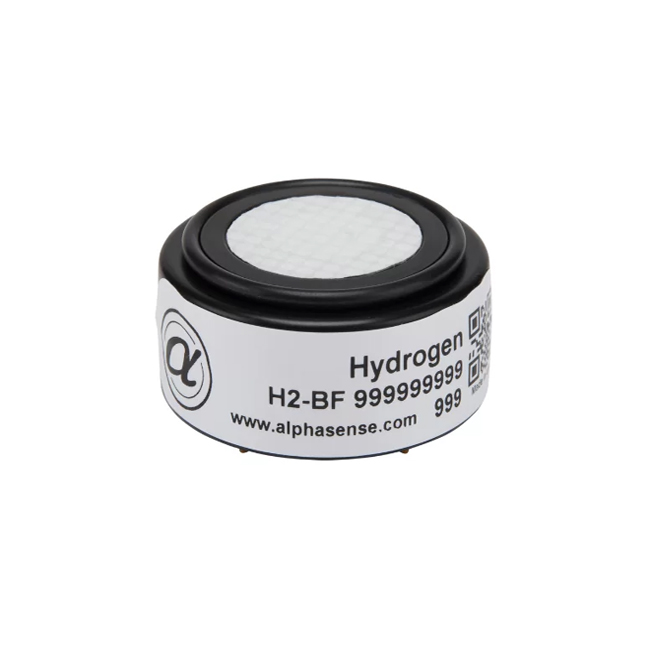

Hydrogen Sensor (H2 Sensor) - H2-BF

• Range: 5,000 ppm H2 limit of performance warranty
• Sensitivity: 10 to 25 nA/ppm in 400ppm H2
• Response time t90: < 55s from zero to 400ppm H2
• Resolution: < 0.8 RMS noise (ppm equivalent)
• Temperature range: -30 to 50°C
• Pressure range: 80 to 120 kPa
• Humidity range: 15 to 90 % rh
• Weight: < 13g

  • Model Number: H2-BF
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Hydrogen Sensor (H2 Sensor)
  • Hydrogen Sensor (H2 Sensor)
Mouse over image to zoom

Product Specification

H2-BF Hydrogen Sensor H2 Sensor Description
Alphasense is expanding its line of electrochemical Toxic Gas Sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.

Hydrogen (H2)
The Hydrogen sensor has excellent ppm sensitivity for low concentrations to 2,000ppm H2. The very low sensitivity to CO makes this one of the most selective Hydrogen sensors on the market.
As with all Hydrogen sensors, temperature compensation for sensitivity must be applied carefully.
Available in A series.


H2-BF Hydrogen Sensor H2 Sensor PERFORMANCE
Sensitivity
nA/ppm in 400ppm H2
10 to 25
Response time
t90 (s) from zero to 400ppm H2
< 55
Zero current
ppm equivalent in zero air
< ±15
Resolution
RMS noise (ppm equivalent)
< 0.8
Range
ppm H2 limit of performance warranty
5,000
Linearity
 ppm error at full scale, linear at zero and 4000ppm H2
-200 to -500
Overgas limit
 maximum ppm for stable response to gas pulse
20,000



H2-BF Hydrogen Sensor H2 Sensor LIFETIME
Zero drift
ppm equivalent change/year in lab air
< 10
Sensitivity drift
% change/year in lab air, monthly test
nd
Operating life
months until 80% original signal  (24 month warranted)
> 24



H2-BF Hydrogen Sensor H2 Sensor ENVIRONMENTAL
Sensitivity @ -20°C
% (output @ -20°C/output @ 20°C) @ 400 ppm H2
10 to 40
Sensitivity @ 50°C
% (output @ 50°C/output @ 20°C) @ 400 ppm H2
190 to 220
Zero @ -20°C
ppm equivalent change from 20°C
30 to 40
Zero @ 50°C
ppm equivalent change from 20°C
-5 to -20



H2-BF Hydrogen Sensor H2 Sensor CROSS SENSITIVITY
Filter capacity
ppm·hrs H2S
250,000
NO2   sensitivity
% measured gas @ 10ppm NO2
< 1
Cl2     sensitivity
% measured gas @ 10ppm Cl2
< 1
NO     sensitivity
% measured gas @ 50ppm NO
< 1
SO2   sensitivity
% measured gas @ 20ppm SO2
< 1
CO     sensitivity
% measured gas @ 400ppm CO
< 2
H2S   sensitivity
% measured gas @ 20ppm H2S
< 1
C2H4 sensitivity
% measured gas @ 400ppm C2H4
< 60
NH3   sensitivity
% measured gas @ 400ppm NH3
< 1
CO2   sensitivity
% measured gas @ 5% CO2
< 1



H2-BF Hydrogen Sensor H2 Sensor KEY SPECIFICATIONS
Temperature range
°C
-30 to 50
Pressure range
kPa
80 to 120
Humidity range
% rh
15 to 90
Storage period
months @ 3 to 20°C (stored in sealed pot)
6
Load resistor
 Ω (recommended)
10 to 47
Weight
g
< 13
