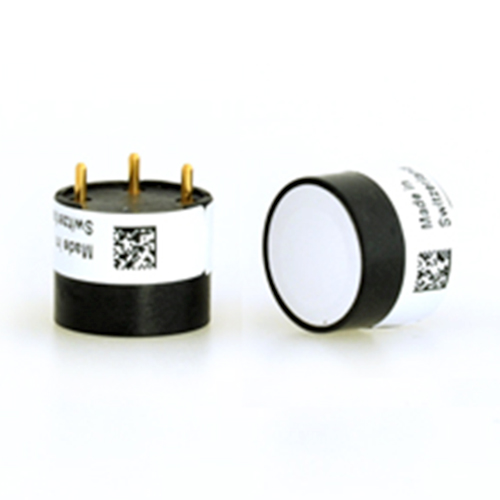

Oxygen Gas Sensor (O2 Sensor) - O2/M-100

• Nominal Range: 0 - 30 ppm
• Maximum Overload: 100 ppm
• Expected Operation Life: >3 years in air
• Output Signal: 1.6 to 2.6 mA in ai
• Sensitivity: 100 ± 24 μA/%
• Resolution: 0.05%
• T90 Response Time: < 20 sec
• Temperature Range: -20°C to 50°C
• Relative Humidity Range: 15 % to 90 % R.H. non-condensing

Model Number: O2/M-100
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Miniature Gas Sensors
Industry standard for portable gas detectors. Widely-used format for personal safety.

Features
Smallest siz

Dimensions
Conforms to 4-Series
Diameter: 20 mm
Height: 16.6 mm
Pin diameter: 1.5 mm

O2/M-100 Oxygen Sensor (O2 Sensor) Applications
• Safety and Environmental Control
• For Portable Gas Detectors
• Biogas applications (see MEM3 Background Gas Compatibility)

O2/M-100 Oxygen Sensor (O2 Sensor) Performance Characteristics
Performance data conditions: 20°C, 50% RH and 1013 mbar

Nominal Range	0 - 30 ppm
Maximum Overload	100 ppm
Expected Operation Life	>3 years in air
Output Signal	1.6 to 2.6 mA in ai
Sensitivity	100 ± 24 μA/%
Resolution	0.05%
T90 Response Time	< 20 sec
Temperature Range	-20°C to 50°C
Temperature Coefficient	0.3% signal / °C
Pressure Range	Atmospheric ± 20%
Pressure Coefficient	No data
Relative Humidity Range	15 % to 90 % R.H. non-condensing
Baseline in pure Nitrogen	0.1% equivalent
Expected Long Term Output Drift	< ±4% signal / 3 years
Recommended Load Resistor	10 Ohm
Bias Voltage	-600 mV
Repeatability	< 2 % of signal
Output Linearity	Linear

O2/M-100 Oxygen Sensor (O2 Sensor) Physical Characteristics

Weight	~ 5.4 g
Position Sensitivity	None
Storage Life	Six months in container
Recommended Storage Temperature	5°C - 20°C
Warranty Period	12 months from date of dispatch
Conformity to RoHS directive	RoHS compliance
