SemeaTech Electrochemical CO-1000 Sensor - CO-1000

This sensor is designed for the measurement of CO concentration in gas phase.

  • Model Number: CO-1000
  • Data Sheet: Date Sheet File
- +

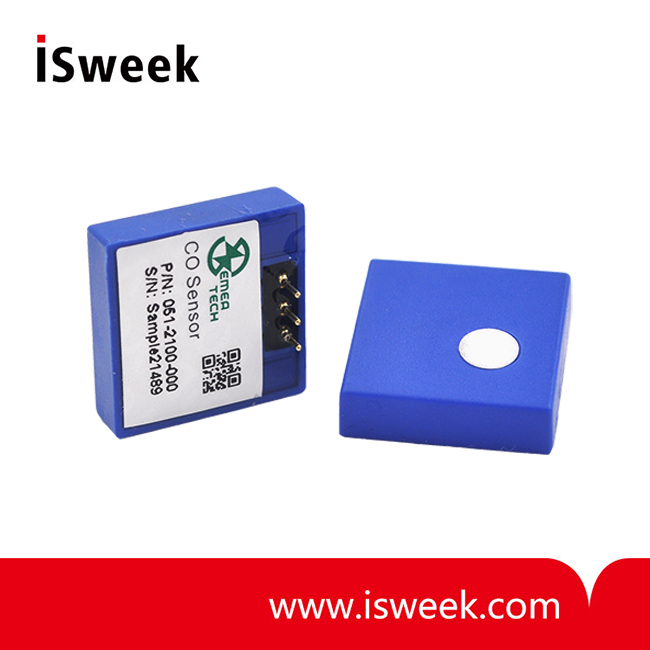

  • SemeaTech  Electrochemical CO-1000 Sensor
Mouse over image to zoom

Product Specification

Product Description

    This sensor is designed for the measurement of CO concentration in gas phase. It can be used as the pin-to-pin replacement of the commercial electrochemical CO sensors which made by the other manufacturers.


Performance Characteristics

Nominal Range

0 ~1000 ppm

Maximum Overload

2,000 ppm

Sensitivity (20)

0.04 ± 0.01 μA/ppm

Response Time (T90)

 30 s

Zero Signal (20)

< ±0.2 μA

Baseline Shift (-20~ 50)

< 10 ppm


1 ppm


Linear up to 1,000 ppm

Bias Voltage

0 mV

Temperature Range

-20~ 50

Pressure Range

1 ± 0.1 atm

Humidity Range

15% ~ 90%RH non-condensing


Reliability and Lifespan

Long Time Output Drift

< 5% signal/month

Expected Operating Life

> 7 years in clean air



Recommended Storage Temp

0~ 20

Storage Life

6 months in original packaging


15 months


Physical Characteristics:

Housing Material


Weight (Nominal)

2 g




Product Dimensions:


All dimensions in mm

All tolerances ±0.10mm unless otherwise stated


Temperature Data:



Safety Note:

    This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

    It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
