SemeaTech Electrochemical CO-10000 Sensors - 4-Series CO-10000

This sensor is designed for the measurement of Carbon Monoxide concentration in gas phase.

  • Model Number: 4-Series CO-10000
  • Data Sheet: Date Sheet File
Quantity:
- +

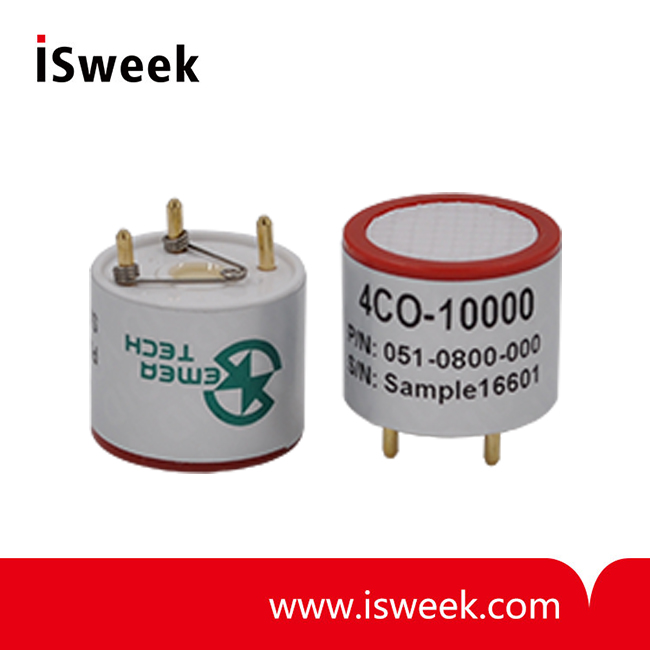

  • SemeaTech Electrochemical CO-10000 Sensors
Mouse over image to zoom

Product Specification

Product Description

    This sensor is designed for the measurement of Carbon Monoxide concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 4-series electrochemical Carbon Monoxide sensors which made by the other manufacturers.



Performance Characteristics

Nominal Range

0 ~ 10,000 ppm

Maximum Overload

20,000 ppm

Sensitivity (20)

0.0175 ± 0.0075 μA/ppm

Response Time (T90)

 30 s

Zero Signal (20)

< ±0.2 μA

Baseline Shift (-40~ 50)

< 10 ppm

Resolution

10 ppm

Linearity

Linear up to 10,000 ppm

Bias Voltage

0 mV



Environmental

Temperature Range

-40~ 50

Pressure Range

1 ± 0.1 atm

Humidity Range

15% ~ 90%RH non-condensing



Life Time

Long Time Output Drift

< 2% signal/month

Recommended Storage Temp

10~ 30

Expected Operating Life

2 years in clean air

Storage Life

6 months in original packaging

Warranty

12 months



Intrinsic Safety Data

Max. Current at 20,000ppm CO

< 1 mA

Max. O/C Voltage

1.3 V

Max. S/C Current

< 1.0 A



Physical Characteristics:

Housing Material

ABS

Weight (Nominal)

5 g

Orientation

None

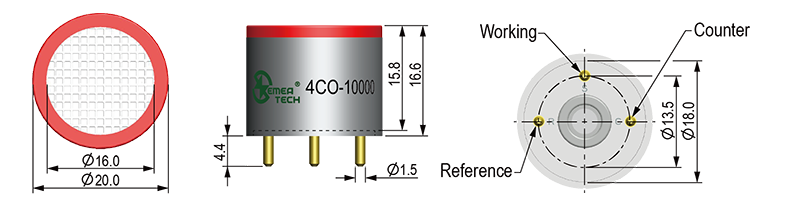

Product Dimensions:



All dimensions in mm

All tolerances ±0.10mm unless otherwise stated



Temperature Data:





Safety Note:

    This sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functions per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the electrolyte and other chemicals stored inside are harmful.

    It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
