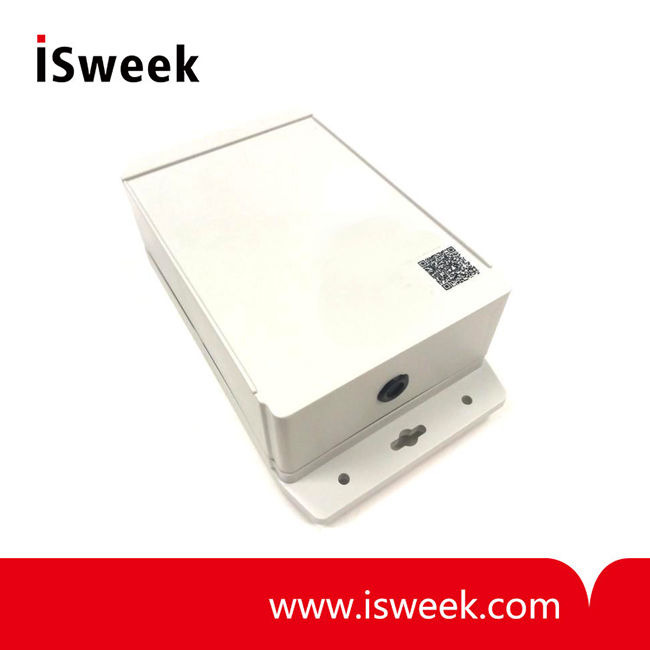

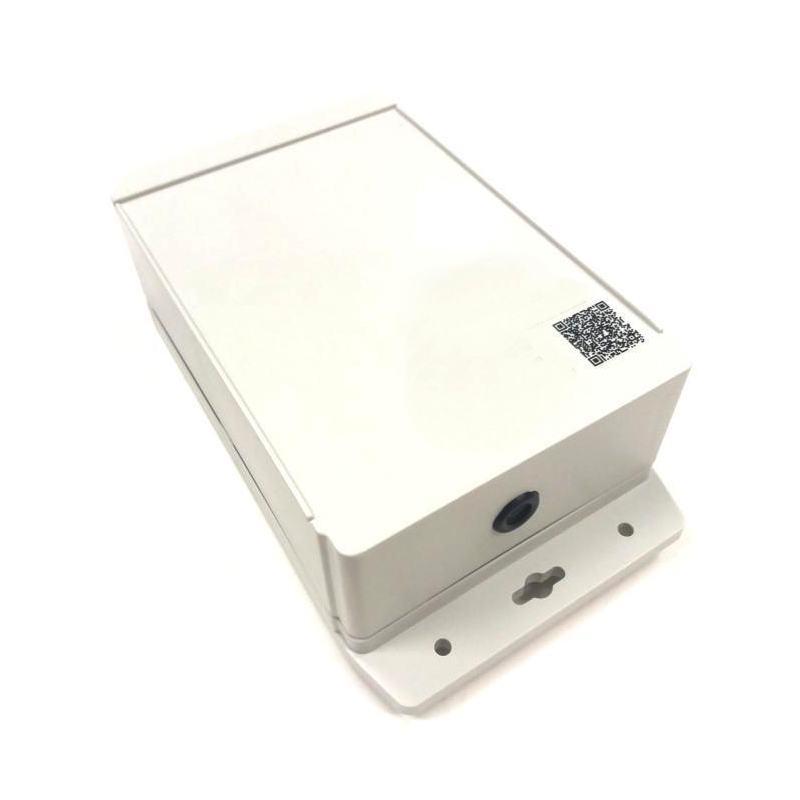

Sound and Noise Sensor - Noise Sensor

• Size: 180 x 160 x 90 mm
• Weight: 450g
• Protecrion: IP66
• Measurement Range: 20 - 100 dBA
• Accuracy: +/-5 dBA
• Temperature: -20℃ to 65℃​
• Power Supply: 2 primary lithium-thionyl chloride high power batteries
• Sensor Description: Electret Microphone

  • Model Number: Noise Sensor
  • Data Sheet: Date Sheet File
- +
  • Sound and Noise Sensor
  • Sound and Noise Sensor
Mouse over image to zoom

Product Specification

Sound Sensor
Sound and noise sensor detects the intensity of ambient sound. In this way it can improve the ambient noise of any city, controlling real-time sound parameters.

Noise Sensor BENEFITS
• Identify areas of high sound intensity of 30-100 dB
• Low maintenance costs
• Continuous Measurement
• Improved sound environment management
• Indoor and outdoor application
• Direct connection to SIGFOX and LoRa communications


Size 180 x 160 x 90 mm
Weight 450g
Protection class IP66
Communication - GSM/M2M/GPRS data transmission network
    • Quad-band, 850/900/1800/1900 Mhz
    • The user must insert the SIM of the network operator
    • Optionally, high-performance external antenna
- WiFi
- LoRa
- Sigfox
- Zigbee
- Bluetooth
Measurement Range 20 - 100 dBA
Accuracy +/-5 dBA
Temperature -20℃ to 65
Power Supply 2 primary lithium-thionyl chloride high power batteries
Sensor Description Electret Microphone
Reports Regular reporting of sound levels and sensor data
Application Level measurements as a basis for noise levels improvement
