ToughSonic CHEM 10 Ultrasonic Level Sensor - LVL-100 Series

• Optimum Range: 80 in. (2 m)
• Max Range: 10 ft. (3 m)
• Deadband: Typ. < 4 in. (100 mm)
• Temperature: -40 to 158 ℉ (-40 to 70℃)
• Outputs: Five selectable, plus serial data
• Humidity: 0 to 100% operating
• Transducer: Rugged piezoelectric
• Compensation: Temperature compensated
• Protection: NEMA-4X, NEMA-6P, IP68

  • Model Number: LVL-100 Series
  • Data Sheet: Date Sheet File
- +

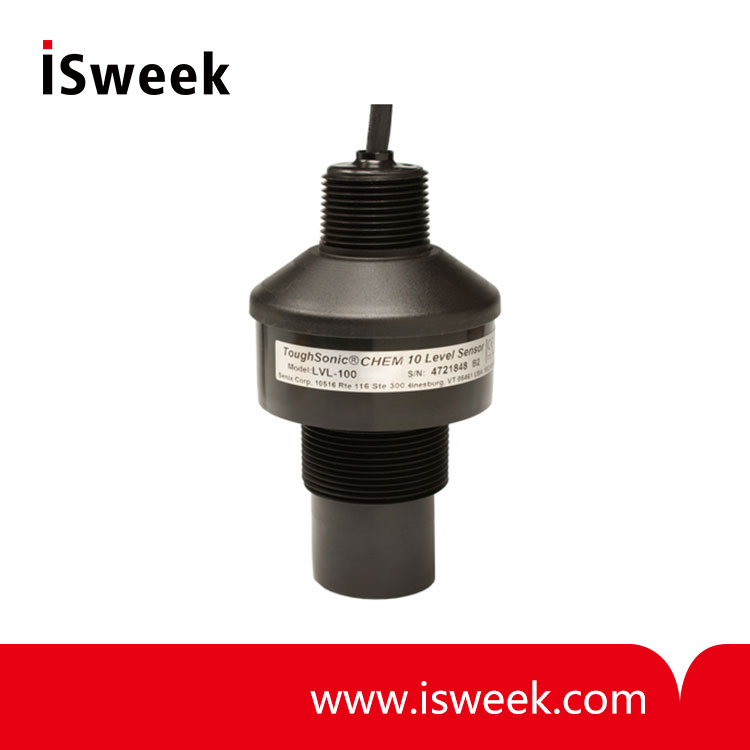

  • ToughSonic CHEM 10 Ultrasonic Level Sensor

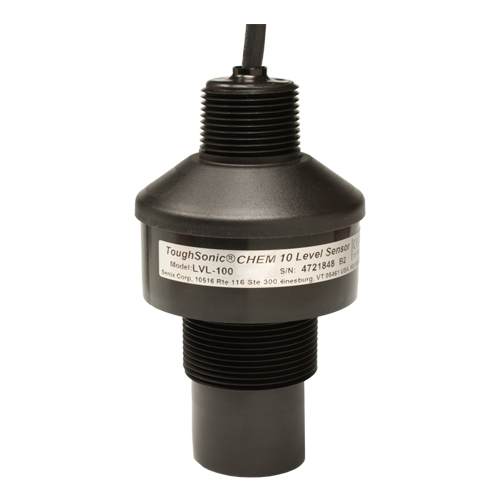

  • ToughSonic CHEM 10 Ultrasonic Level Sensor
Mouse over image to zoom

Product Specification

ToughSonic CHEM 10 Level Sensor
Liquids or Solids in Chemically Aggressive Environments

The ToughSonic CHEM 10 is designed for applications where corrosive liquids or gasses are present, but it is an excellent choice for benign environments as well. The maximum range of 10 feet (3 meters) is the shortest range model in the ToughSonic CHEM sensor family.

The ToughSonic CHEM 10 is sealed in a PVDF (Kynar) housing. It is fully submersible, chemical resistant and shock resistant. It has a potted-in 9-wire cable that connects up to five simultaneous analog and/or switch outputs plus a serial interface. It is fully configurable with SenixVIEW configuration and analysis software.

Please see the full line of ToughSonic and ToughSonic CHEM sensors for alternative ranges, sizes and housing materials.

Non-Contact Ultrasonic Distance & Level Measurement

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Features
Level Measurements
• Long or short measurements
• Unaffected by optical factors like color and transparency
• Computer (PC) software allows remote adjustment
Packaging & Performance
• Durable housing for long life
• Bottom and top thread mounts
• Short & overload protected I/O
• Adjustable filters compensate for tank mixers or turbulence
• Temperature compensation for improved accuracy
• Adjustable sensitivity

Free Functionality

Use adjustable interface features like switch hysteresis and time delays to build complete solutions such as pump controls to maintain level. Save cost by eliminating PLCs, delay circuits and time delay relays!

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Specifications

Optimum Range

 80 in. (2 m)

Max Range

 10 ft. (3 m)


 Typ. < 4 in. (100 mm)


 SenixVIEW software

Case Material



 Stored in non-volatile memory


 -40 to 158 ℉ (-40 to 70 ℃)


 Five selectable, plus serial data


 0 to 100% operating


 Rugged piezoelectric


 Temperature compensated




 Digital:0.0034 in. (0.086 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA)


 Greater of +/-0.03 in. (0.76 mm) or 0.2% of target distance in stable environment

Update Rate

 20 Hz (50 ms), SenixVIEW adjustable; affected by SenixVIEW filter selections

Input Power

 10-30 VDC, 50 mA maximum (not including output currents)

Voltage Output

 0-10, 0-5 VDC or PC customized; 10 mA max. (*)

Current Loop #1

 Current sourcing 4-20 mA or PC customized, max. loop 450Ω(*)

Current Loop #2

 Current sinking 4-20 mA or PC customized, max. loop 450Ω(*)

Sinking Switch

 150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication

Sourcing Switch

 150 mA max. @ input voltage, teachable set point & polarity, fault indication

RS-232, RS-485

 Modbus protocol, 9600-115200 baud (selectable), 8 data bits, 1 stop, no parity

Target Requirements


 Detects flat or irregular surfaces. Target surface must reflect sound back to sensor.

Max. Distance

 Affected by size, shape, orientation of target (sound level reflected back to sensor), environment

 Restrict use to Optimum Range when using over a wide range of environmental conditions

Granular Solids

 De-rate max range by 50%; range affected by material density and orientation


 Orient sensor beam perpendicular to target surface for best performance

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Connections

Cable Connection





 10-30 VDC, 50 mA maximum; Typical:45 mA @ 24 VDC (**)



 Power and interface common

Voltage Output *


 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC

Current Loop Output *


 4-20 mA sourcing (adjustable end values between 4 and 20 mA)

Current Loop Output *


 4-20 mA sinking (adjustable end values between 4 and 20 mA)

Switch #1 Output


 Sinking ("NPN") or Sourcing ("PNP"), user selected

Switch #2 Output


 Sinking ("NPN") or Sourcing ("PNP"), user selected

RS-232 out / RS-485-


 Serial data connection (depends on model - see model selection)

RS-232 in / RS-485+


 Serial data connection (depends on model - see model selection)

(*) Analog outputs share common distance endpoints. Both 4-20 mA outputs share the same adjustable max / min values. The maximum loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included. Sensitivity reduced below 15 VDC input voltage.

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Part Numbers

Model Number



 Serial RS-232 interface (PC COM port compatible)


 Serial RS-485 interface (allows addressable multi-sensor networks)

also offers interconnection, communication, mounting, and display components
