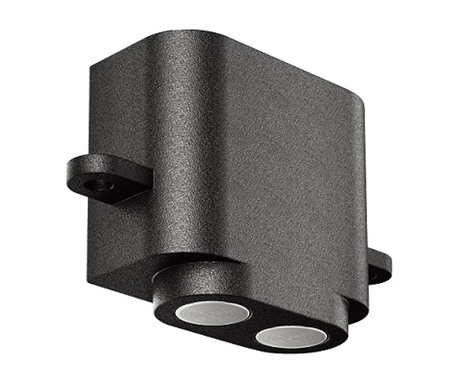

Ultrasonic Rangefinder - UM0034-002

Intelligent garbage can
Intelligent water dispenser
Intelligent liquid level detection system

Model Number: UM0034-002

Quantity:: - +

Mouse over image to zoom

Product Specification

UM0034-002 Ultrasonic Rangefinder Summary:

The ultrasonic rangefinder measures the time interval between emitting the ultrasonic pulses and receiving the echo to determine the distance to nearby objects.

UM0034-002 Ultrasonic Rangefinder Features：

Small size， easy to install

Intelligent and accurate measurement

Small blind zone, high sensitivity

Good anti-interference ability

UM0034-002 Ultrasonic Rangefinder Applications：

Intelligent garbage can

Intelligent water dispenser

Intelligent liquid level detection system

UM0034-002 Ultrasonic Rangefinder Specification：

NO.	Item	Specification
1	Model	UM0034-002
2	Range of measurement	20~1200mm
3	Accuracy	±10mm
4	Response time	＜1ms
5	Rated working voltage	DC 5V
6	Working current	≤ 9mA
7	Working temperature	0℃~+80℃
