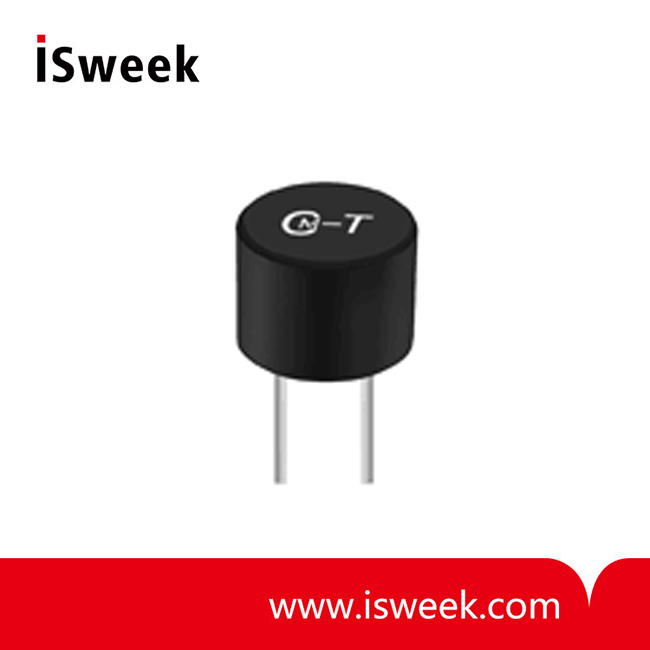

Ultrasonic Sensors - MA300D1-1

1. Short ringing time
2. Wide bandwidth & quick response

  • Model Number: MA300D1-1
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart
  • Ultrasonic Sensors
Mouse over image to zoom

Product Specification

MA300D1-1 Ultrasonic Sensors Specifications:

Operating Temperature Range

-20℃ to 70℃

Construction

High frequency type

Center Frequency

300kHz

Overall Sensitivity

1.5~4.0Vp-p

Directivity

5deg.(Reference Value)

Capacitance

1300pF

Capacitance Tolerance

±20%

Max. Input Voltage

50Vp-p Drive wave number:5 cycles, Drive cycle:300Hz



MA300D1-1 Ultrasonic Sensors Features:

1. Short ringing time

2. Wide bandwidth & quick response



MA300D1-1 Ultrasonic Sensors Applications：

Other Usage

Double feed detection for papers or banknotes



MA300D1-1 Ultrasonic Sensors  Dimensions：
