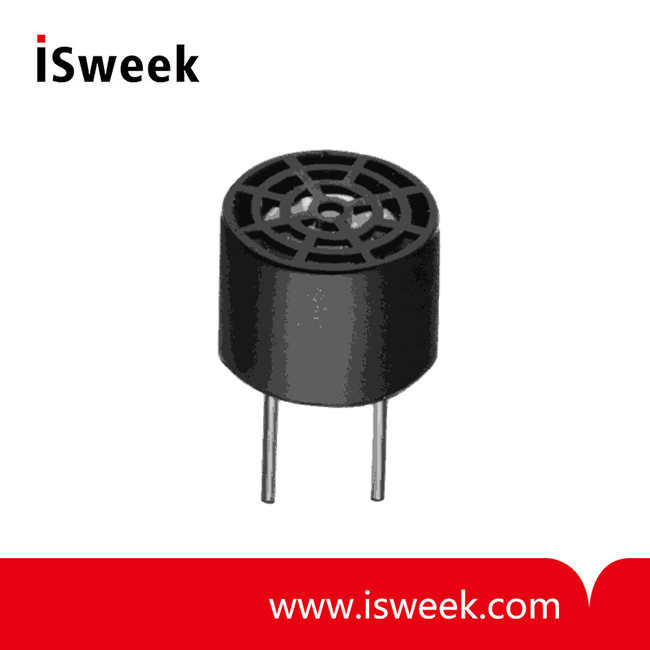

Ultrasonic Sensors - MA40S4R

1. Compact and light weight.
2. High sensitivity and sound pressure.

Mouse over image to zoom

MA40S4R Ultrasonic Sensors Specifications:

Operating Temperature Range	-40℃ to 85℃
Construction	Open type
Center Frequency	40kHz
Sensitivity	-63dB typ. (0dB=10V/Pa)
Directivity	80deg. (typ.)
Capacitance	2550pF
Capacitance Tolerance	±20%

MA40S4R Ultrasonic Sensors Features:

1. Compact and light weight.

2. High sensitivity and sound pressure.

MA40S4R Ultrasonic Sensors Applications:

Automotive Usage

Infotainment

Other Usage

1.Obstacle detection in home

2.Distance measurement

MA40S4R Ultrasonic Sensors Dimensions:
