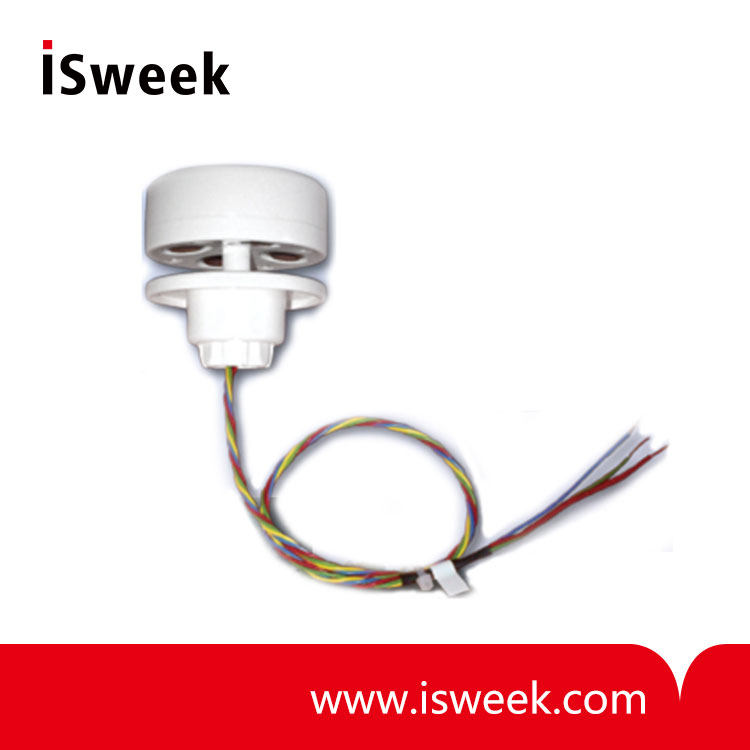

Ultrasonic Wind Speed Sensor - SONIC-ANEMO-MICRO

Output rate: select. 1 meas. and Tx: every 1,6 or 18 s
Wind module sensitivity: 0.12 m/s
Wind module resolution: 0.05 m/s
Wind module dynamic: 0.12 to 40 m/s
Direction sensitivity: +/-1.5°
Direction resolution: 1°
Power supply: 3 V to 3.6 V DC
Electrical consumption: 200µA avg
Op. temp. without icing: -15° C to +50° C

  • Model Number: SONIC-ANEMO-MICRO
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Ultrasonic Wind Speed Sensor
  • Ultrasonic Wind Speed Sensor
Mouse over image to zoom

Product Specification

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Description:

As a result of its very special electronic architecture the SONIC-ANEMO-MICRO shows a very low electrical consumption. It is ideal for remote stations or mobile installation.

SONIC-ANEMO-MICRO is an OEM sensor designed for integration in other original Equipment.

This sensor shows a very low consumption. It operates from 300µA.
SONIC-ANEMO-MICRO is the lowest consumption power solution of all LCJ sensors.

SONIC-ANEMO-MICRO Ultrasonic Wind Speed Sensor Specification:

Output data format

ASCII format, avaibility

Information transmited

Instant. W. Speed, Instant. W. Angle, avaibility

Output rate

select. 1 meas. and Tx: every 1,6 or 18 s

Wind module sensitivity

0.12 m/s

Wind module resolution

0.05 m/s

Wind module dynamic

0.12 to 40 m/s

Direction sensitivity

+/-1.5°

Direction resolution

Power supply

3 V to 3.6 V DC

Electrical consumption

200µA avg

Op. temp. without icing

-15° C to +50° C

Cable

50 cm / 4x0.22 mm2

Connection

4 wires

Weight of the head

100 gr

Weight of unit assembly

N/A

Mounting

N/A


Options
These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.

420 AC
This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.
• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm

ANA-AC
This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
