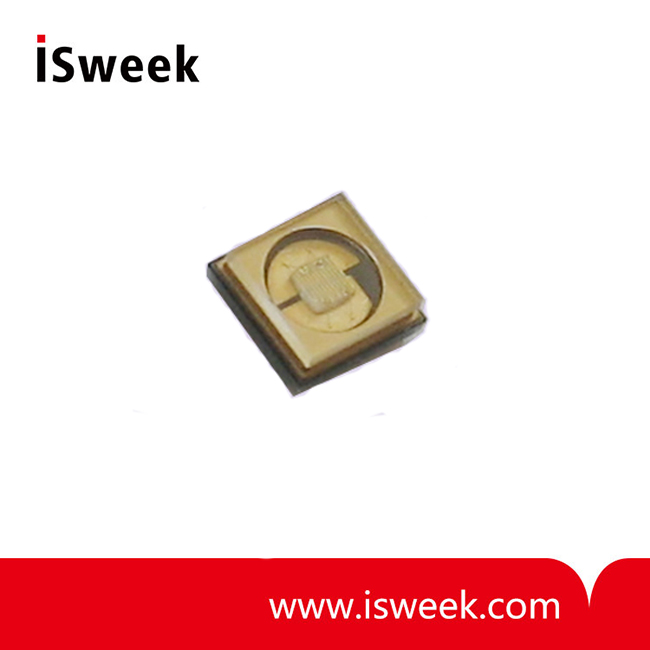

UVC photodiode - GS-UVC-3535LQC
• Selective response to UVC band
• Photovoltaic mode operation
• SMD 3535 ceramic package with quartz window
• Good solar blindness
• High responsivity and low dark current
- Model Number: GS-UVC-3535LQC
- Data Sheet:
- Quantity:
- - +
Product Specification
1. UVC photodiode（GS-UVC-3535LQC）Product info：
Chip size 1 mm2, SMD3535 package with quartz window, solar blind detector.
2. UVC photodiode（GS-UVC-3535LQC）Typical applications：
air purification, water quality measurement
3. UVC photodiode（GS-UVC-3535LQC）General Features：
• Selective response to UVC band
• Photovoltaic mode operation
• SMD 3535 ceramic package with quartz window
• Good solar blindness
• High responsivity and low dark current
4. UVC photodiode（GS-UVC-3535LQC）Specifications：
|
Parameters |
Symbol |
Value |
Unit |
|
Maximum ratings |
|||
|
Operation temperature range |
Topt |
-25-85 |
℃ |
|
Storage temperature range |
Tsto |
-40-85 |
℃ |
|
Soldering temperature (3 s) |
Tsol |
260 |
℃ |
|
Reverse voltage |
Vr-max |
-10 |
V |
|
General characteristics (25℃) |
|||
|
Chip size |
A |
1 |
mm2 |
|
Dark current (Vr = -1 V) |
Id |
<1 |
nA |
|
Temperature coefficient |
Tc |
-0.02 |
%/ ℃ |
|
Capacitance (at 0 V and 1 MHz) |
Cp |
18 |
pF |
|
Spectral response characteristics (25℃) |
|||
|
Wavelength of peak responsivisity |
λp |
285 |
nm |
|
Peak responsivisity (at 365 nm) |
Rmax |
0.178 |
A/W |
|
Spectral response range (R=0.1×Rmax) |
— |
225-290 |
nm |
|
UV-visible rejection ratio (Rmax/R400 nm) |
— |
>104 |
— |
5. UVC photodiode（GS-UVC-3535LQC）Package dimensions：
