Wireless Particle Monitor - TD40

• Number of Channels​: 16​
• Particle sizes​: 0.38 - 17 µm​
• Flow Rate​: 1 L/min​
• Power Consumption​: 130mA @ 12V​
• Certification & Compliance​: CE, FCC, ROHS

  • Model Number: TD40
  • Data Sheet: Date Sheet File
- +

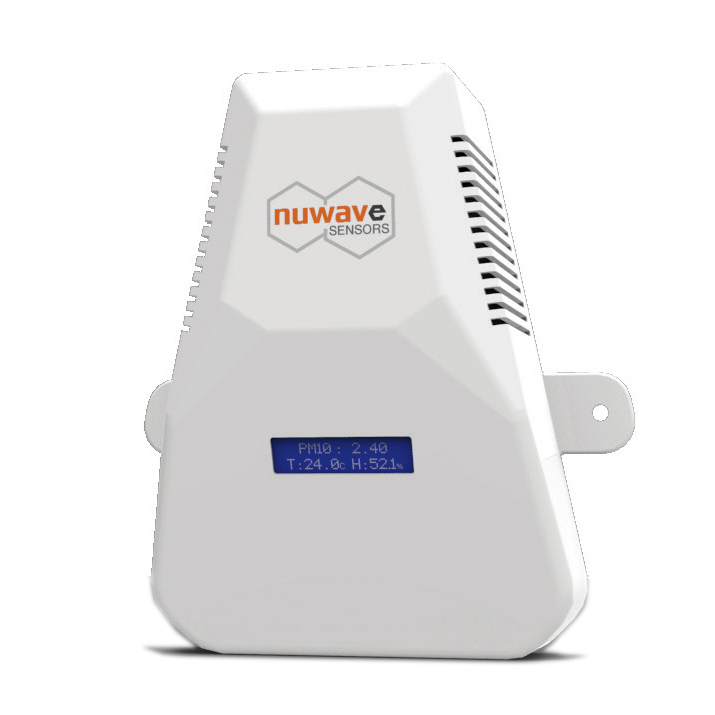

  • Wireless Particle Monitor

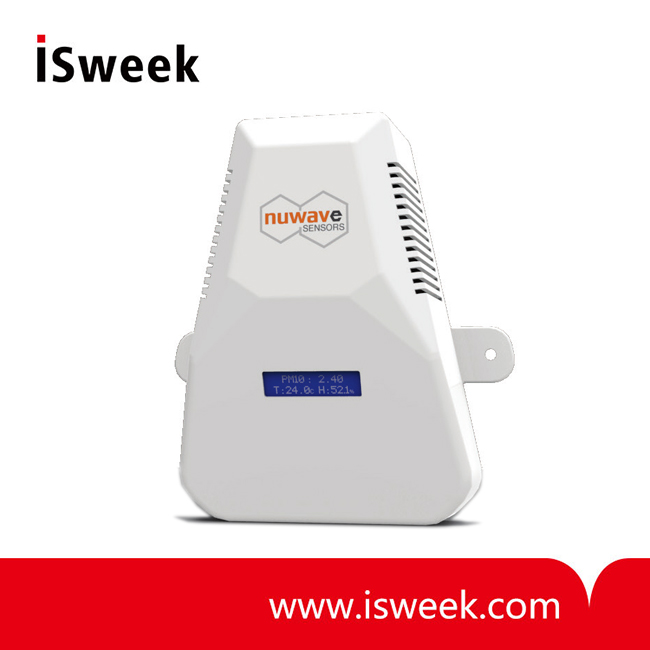

  • Wireless Particle Monitor
Mouse over image to zoom

Product Specification

TD40 Wireless Particle Monitor Overview
The TD40 is a sensitive and concise airborne particle measurement sensor. This unit is well suited to carrying out precise measurements of particle densities in clean and dust free facilities. The unit acquires the current particle concentration in the environment though it's internal air circulation system and particle concentrations at precise diameter intervals are calculated based on the scattering of a laser source. The measurement of concentrations of particles within specific diameter intervals is performed using advanced digital signal processing electronics.

TD40 Wireless Particle Monitor Typical Applications
• Monitoring of dust sensitive manufacturing environments
• Food production and packaging facilities monitoring
• Healthcare environment monitoring
• Office and factory indoor air quality monitoring

TD40 Wireless Particle Monitor Features
• Particle Sensor: 16 Particle Bin sensor that counts particles in the range of 0.38µm to 17µm
• Temperature Sensor: Important measure for a controlled environment
• Wireless: Enables you to connect multiple sensors
• Alert: Get real-time alerts when the values go outside set limits
• Humidity Sensor: Measures the relative humidity in the room
• Easy Set-up: Plug and Play Technology will have the sensor running in minutes

TD40 Wireless Particle Monitor Specifications
Performance (Particle Sensor)

Number of Channels
Particle bins
Particle sizes
0.38 - 17 µm
Flow Rate
Air passing through sensor
1 L/min
Coincidence %
106 particles/L
0.24 %
Laser class
NIST traceable
Certification & Compliance

Inputs and Outputs
100-240V International Adapter
DC 12V +/- 10%, 420mA (Supplied)
Power Consumption
130mA @ 12V
Wireless Outputs
ZigBee 2.4Ghz
Ethernet Gateway
