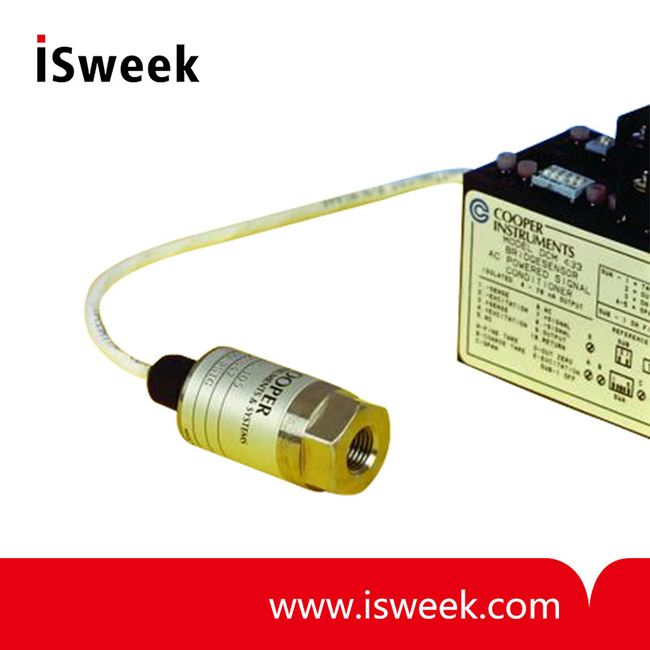

Low Cost Pressure Transducer - PLC 105

• Pressure Ranges: 1 psig to 10,000 psig
• Accuracy: ±0.5% F.S.
• Temperature Range: 60˚ to 160˚ F
• Excitation: 10 Vdc
• Safe Overload: 50% Over Capacity
• Welded Stainless Steel
• Low Cost
• Quick Delivery

Model Number: PLC 105
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PLC 105 - Low Cost Pressure Transducer

The Model PLC 105 is low cost alternative pressure transducers offering good performance in high volume applications. Stainless steel construction provides durability to survive rugged environments. The PLC 105 offers a nominal 2 mv/v output. This transducer is able to handle both liquid and gas pressure with safe overloads to 50% of capacity.

PLC 105 Low Cost Pressure Transducer Feature
• Welded Stainless Steel
• Low Cost
• Quick Delivery

PLC 105 Low Cost Pressure Transducer Specifications

Pressure Ranges	1 psig to 10,000 psig
Accuracy	±0.5% F.S.
Material	Stainless Steel
Temperature Range	60˚ to 160˚ F
Output	1 psi to 5 psi - 5mv/v 15 psi to 100 psi - 10mv/v 150 psi to 10,000 psi - 2 mv/v
Bridge Rresistance	1 psi to 100 psi - 5000 ohm 150 psi to 10,000 psi - 350 ohm
Excitation	10 Vdc
Safe Overload	50% Over Capacity
Pressure Ports	1/4-18 NPT
Cable	3 ft

AVAILABLE RANGES	D”	L”	H”
1; 2.5; 5	1.125	2.26	1 hex
15; 30; 50; 75; 100	1.125	2.23	1 hex
150; 200; 300; 500; 750	1.125	2.00	.875 hex
1000; 1500; 2000; 3000; 5000; 7500; 10,000	1.125	1.78	.750 hex
