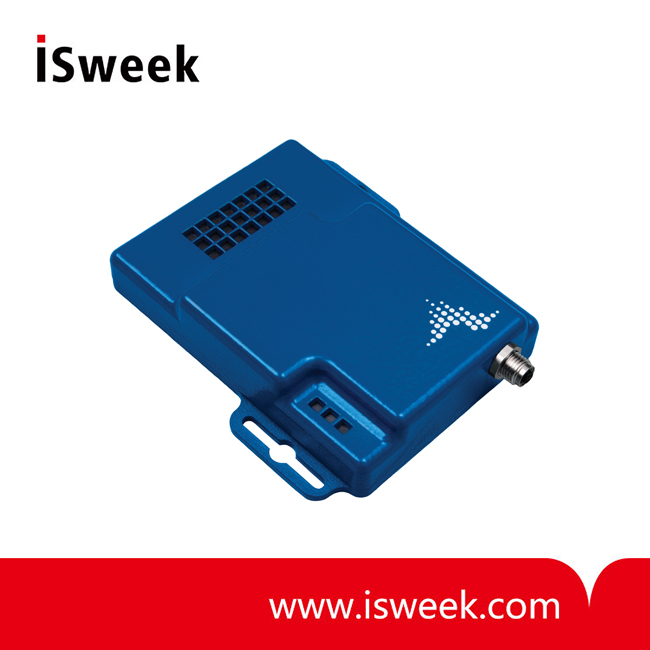

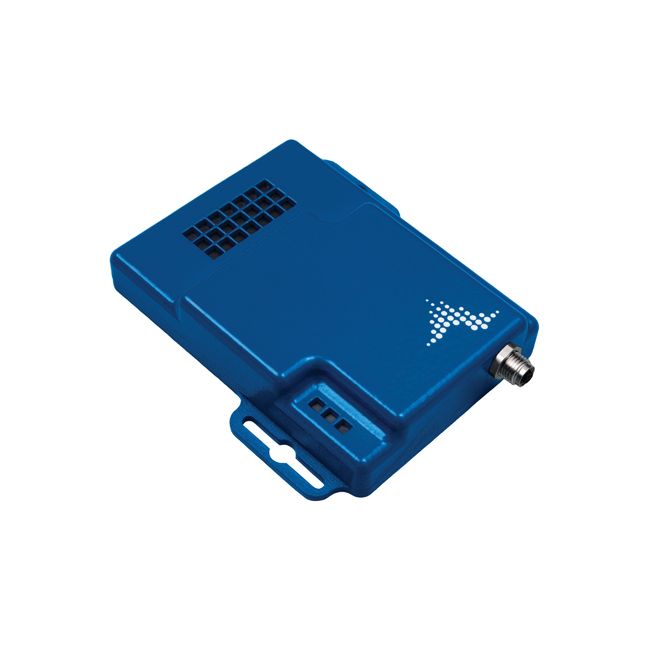

Air Pollution Sensor - INAIR-NO2

• Digital output
• Pre-calibrated
• Proprietary optical sensor technology
• Pumped or Diffusive air flow configuration
• Protective case with slim profile

  • Model Number: INAIR-NO2
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Air Pollution Sensor
  • Air Pollution Sensor
Mouse over image to zoom

Product Specification

Detection of NO2 in ambient air:

    InAir-NO2 is an optochemical sensor based on Insplorions patented Nanoplasmonic Sensing technology (NPS). The active sensor element is a semi-transparent glass chip covered with plasmonic nanostructures and a functional coating. Readout is accomplished using light-emitting diodes and photosensitive detectors to measure the interaction between the sensor element and NO2 gas molecules. Concentrations in the range of a few mg/m3 (ppb) can be detected.

    InAir-NO2 is a miniaturized high performance sensor that enables cost effective detection and measurement of NO2 levels in ambient air.

    The InAir-NO2 is available for both diffusive measurements and with connections for pumped air flow. Both configurations come with a precalibrated sensor element.

    The sensor can be calibrated for optimal performance at a certain temperature and humidity. The drift and temperature compensated signal is presented in ppb by volume [1 ppb NO2 = 1.88 mg/m3]. For purposeful and adaptive calibration at a certain location of interest the raw uncalibrated signal is also presented.



Key features:

Digital output

Pre-calibrated

Proprietary optical sensor technology

Pumped or Diffusive air flow configuration

Protective case with slim profile



Applications:

Urban air quality monitoring; particularly in smart cities

Ventilation control; in public, commercial, and residential buildings, as well as tunnels and garages

Industrial safety; for both workers and the environment
