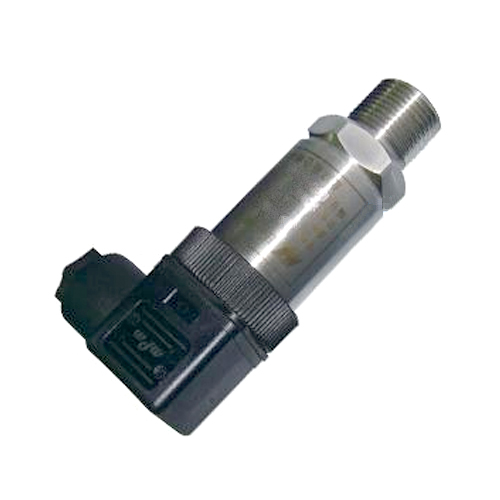

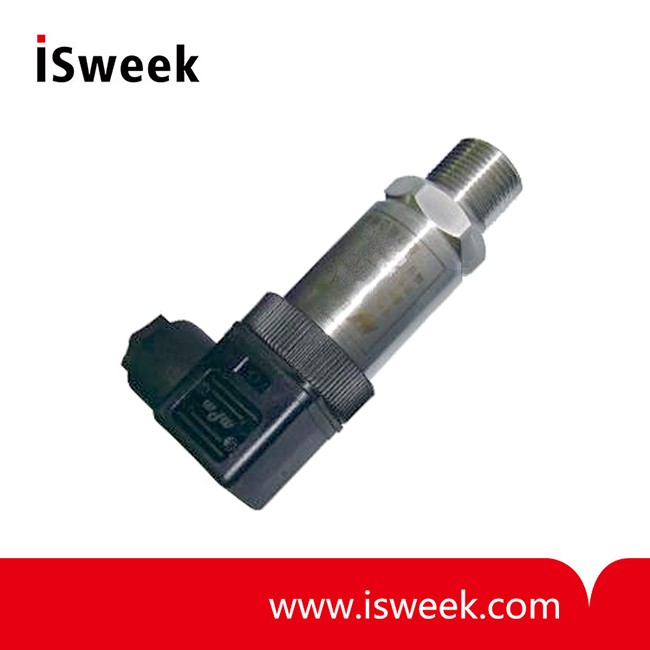

Ceramic Pressure Transmitter - JYB-T-HAG

Measuring range: 0~20MPa
Output: 4~20mA
Power supply: DC 24V (12V~32V)
Medium temperature: -20°C~60°C
Environment temperature: -20°C~60°C
Nonlinear: ± 0.2%F.S
Repeatability: ± 0.2%F.S
Long-term stability: ± 0.5%F.S/y

  • Model Number: JYB-T-HAG
Quantity:
- +
  • Ceramic Pressure Transmitter
  • Ceramic Pressure Transmitter
Mouse over image to zoom

Product Specification

JYB-T-HAG Ceramic Pressure Transmitter Introduction
• Small size is convenient for installation
• Ceramic sensing element, strong corrosion resistance;
• Over-current, over-voltage, reverse polarity protection, reliable in performance.

JYB-T-HAG Ceramic Pressure Transmitter Use
The product is widely used in automobiles, central air-conditioning, refrigeration equipment, water treatment engineering, environmental purification, hydraulic pneumatic control engineering and other fields. It's a good replacement for old pressure equipment.

JYB-T-HAG Ceramic Pressure Transmitter Parameters

Measuring range 0~20MPa
Accuracy class grade 0.5, grade 1
Output 4~20mA
Power supply DC 24V (12V~32V)
Load capacity current mode ≤500Ω (DC24V supply)
Medium temperature -20°C~60°C
Environment temperature -20°C~60°C
VCC DC 24V (12V~32V)
Nonlinear ± 0.2%F.S
Repeatability ± 0.2%F.S
Long-term stability ± 0.5%F.S/y
Temperature drift ± 0.03%F.S/°C
Over load pressure 160KPa - 6MPa, two times of range; 6MPa-20MPa, 1.5 times of range
Electrical connection big Horsman
Process connection M20 x 1.5
Measuring medium  compatible with Al2O3, stainless steel, and nitrile butadiene rubber
IP grade IP 65
