Displacement Sensors - EDS Series

• Power supply​: 24V DC​​
• Analogue output​: 4 - 20mA
• Absolute accuracy​: 0.1% Full Scale​​
• Power consumption​: < 100mA​​
• Update rate​: Up to 10k sam​ples/second​
• Operating temperature​: -20°C to 80°C​​
• Operating humidity​: 5%RH to 80%R​H​
• Ingress protection​: IP63​

  • Model Number: EDS Series
  • Data Sheet: Date Sheet File
- +
  • Displacement Sensors
  • Displacement Sensors
Mouse over image to zoom

Product Specification

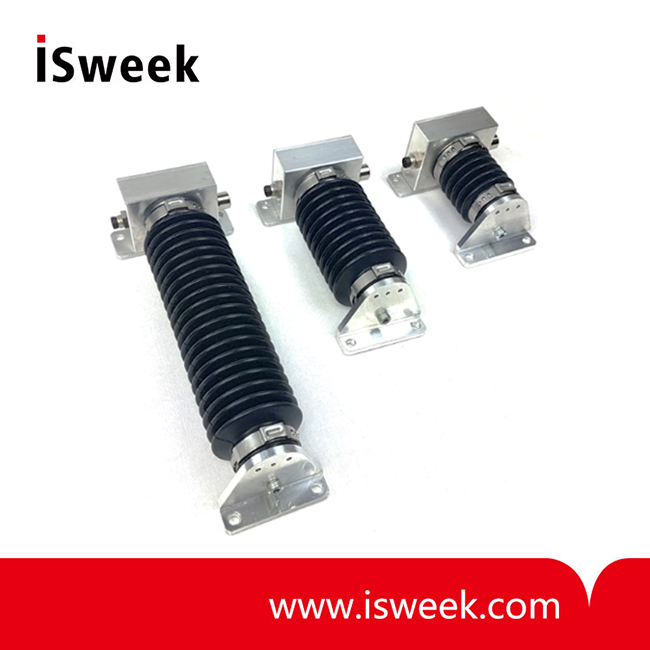

EDS Series Displacement Sensors Description
Our displacement sensor may either be used as a standalone unit or as a part of a system together with other daisy chained sensors. In stand- alone mode the sensor requires 24VDC supply and outputs an analogue current in the range of 4-20mA. The output signal is linearly proportional to the displacement i.e. 4mA corresponds to 0mm and 20mA represents the maximum displacement of the sensor.

The flexible nature of the sensors enables off-axis displacements measurements in all three directions.

EDS Series Displacement Sensors Specifications

Measurement range (mm)
20 50 100 200
Power supply
24V DC
Analogue output
4 - 20mA (1 - 5V or 2 - 10V available as options)
Digital output
Integer value in nm transmitted on full duplex RS485 network
Absolute accuracy
0.1% Full Scale
Power consumption
< 100mA
Update rate
Up to 10k samples/second
Operating temperature
-20°C to 80°C
Operating humidity
5%RH to 80%RH
Ingress protection
Dimension A (mm)
77 116 185 315
Dimension B (mm)
63 102 171 301
