DLVR Series Low Voltage Digital Pressure Sensors - DLVR-L02D-E1NS-C-NI3F

• 0.5 to 60 inH2O Pressure Ranges
• Supply Voltage: 6 Vdc
• Common Mode Pressure: 10 psig
• Lead Temperature (soldering 2-4 sec.): 270 °C
• Operatin​g Temperature: ​-25°C to 85 °C​
• Storage​ Temperature​: -40°C to 125 °C
• Humidity Limits (non condensing): 0 to 95% RH

  • Model Number: DLVR-L02D-E1NS-C-NI3F
  • Data Sheet: Date Sheet File
Quantity:
- +

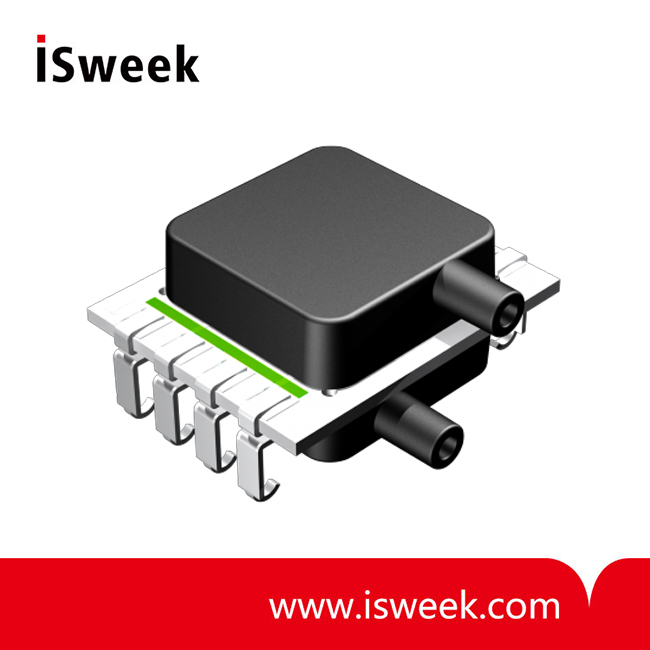

  • DLVR Series Low Voltage Digital Pressure Sensors
  • DLVR Series Low Voltage Digital Pressure Sensors
Mouse over image to zoom

Product Specification

DLVR Series Low Voltage Digital Pressure Sensors General Description
The DLVR Series mini digital output pressure sensor is based on All Sensors' CoBeam Technology. This reduces package stress susceptibility, resulting in improved overall long term stability. The technology also vastly improves position sensitivity compared to single die devices.

The supply voltage options ease integration of the sensors into a wide range of process control and measurement systems, allowing direct connection to serial communications channels. For battery-powered systems, the sensors can enter very low-power modes between readings to minimize load to power supply.

These calibrated and compensated sensors provide an accurate, stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. A protective parylene coating is optionally available for moisture/harsh media protection.

DLVR Series Low Voltage Digital Pressure Sensors Features
• 0.5 to 60 inH2O Pressure Ranges
• 3.3V Supply Voltage Standard / 5V Option
• I2C Standard Interface / SPI Interface Option
• Better than 1.0% Accuracy Over Temperature Typical

DLVR Series Low Voltage Digital Pressure Sensors Applications
• Medical Breathing
• Environmental Controls
• HVAC
• Industrial Controls
• Portable/Hand-Held Equipment

DLVR Series Low Voltage Digital Pressure Sensors

Pressure Sensor Maximum Ratings


Environmental Specifications
Supply Voltage (Vs)
6 Vdc
Compensated Temperature

Common Mode Pressure
10 psig
    Commercial
0°C to 70°C
Lead Temperature (soldering 2-4 sec.)
270 °C
    Industrial
-20°C to 85°C


OperatinTemperature
-25°C to 85 °C


Storage Temperature
-40°C to 125 °C


Humidity Limits (non condensing)
0 to 95% RH

DLVR Series Low Voltage Digital Pressure Sensors Standard Pressure Ranges
Device
Operating Range
Proof Pressure
Burst Pressure
Nominal Span
DLVR-F50D
±0.5 inH2O
100 inH2O
300 inH2O
±6,553 counts
DLVR-L01D
±1 inH2O
100 inH2O
300 inH2O
±6,553 counts
DLVR-L02D
±2 inH2O
100 inH2O
300 inH2O
±6,553 counts
DLVR-L05D
±5 inH2O
200 inH2O
300 inH2O
±6,553 counts
DLVR-L10D
±10 inH2O
200 inH2O
300 inH2O
±6,553 counts
DLVR-L20D
±20 inH2O
200 inH2O
500 inH2O
±6,553 counts
DLVR-L30D
±30 inH2O
200 inH2O
500 inH2O
±6,553 counts
DLVR-L60D
±60 inH2O
200 inH2O
800 inH2O
±6,553 counts
DLVR-L01G
0 to 1 inH2O
100 inH2O
300 inH2O
13,107 counts
DLVR-L02G
0 to 2 inH2O
100 inH2O
300 inH2O
13,107 counts
DLVR-L05G
0 to 5 inH2O
200 inH2O
300 inH2O
13,107 counts
DLVR-L10G
0 to 10 inH2O
200 inH2O
300 inH2O
13,107 counts
DLVR-L20G
0 to 20 inH2O
200 inH2O
500 inH2O
13,107 counts
DLVR-L30G
0 to 30 inH2O
200 inH2O
500 inH2O
13,107 counts
DLVR-L60G
0 to 60 inH2O
200 inH2O
800 inH2O
13,107 counts

DLVR Series Low Voltage Digital Pressure Sensors How to Order
Refer to Table 1 for configuring a standard base part number which includes the pressure range, package and temperature range. Table 2 shows the available configuring options. The option identifier is required to complete the device part number. Refer to Table 6 for the available device package options.
Example P/N with options: DLVR-L02D-E1NS-C-NI3F

Table 1 - How to configure a base part number


Table 2 - How to configure an option identifier
