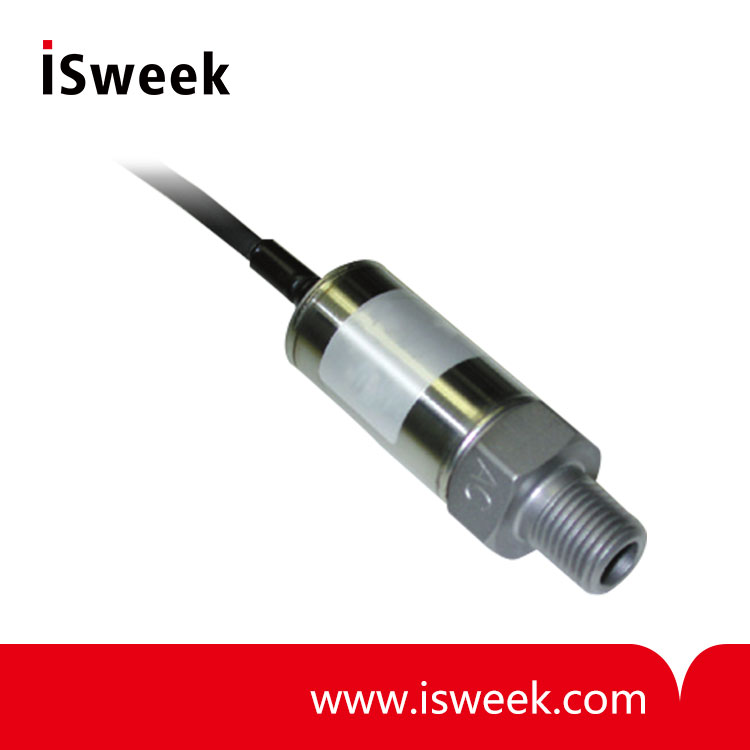

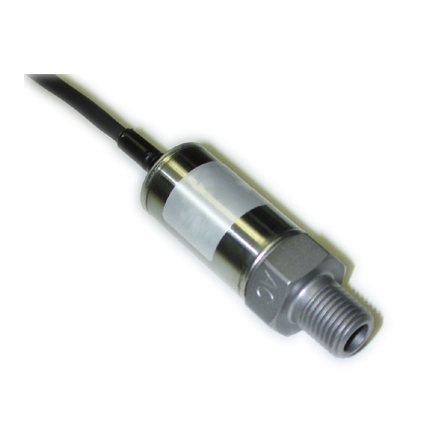

General Purpose Pressure Transducer - PTG 400 Series

• Pressure Ranges: 25 to 10,000 PSI
• Accuracy: ±0.25% to ±.5% F.S
• Material: 17-4PH Wetted Parts 304 SS Housing
• Temperature Range: 30º to 130º F - Compensated
• Low Static and Thermal Errors
• Welded Case
• Suitable For High Shock And Vibration
• EMI/RFI Protection
• Cable, din or 1/2” Conduit Pipe Electrical Termination

Model Number: PTG 400 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PTG 400 Series - General Purpose Pressure Transducer

The PTG 400 is a competitively priced, high quality all stainless steel, pressure sensor intended for use in the measurement of gases and liquids. This series is suitable for automotive diagnostics tools, refrigeration, hydraulics, pneumatics and data loggers. The PTG 400 pressure sensors are designed specifically for applications with demanding price and performance requirements. These sensors offer both millivolt and high level outputs. The high strength sensing element is machined from a solid piece of stainless steel, resulting in construction that contains no silicone oil, welds or internal O-rings. Measurements are available in gauge pressure covering ranges up to 10,000 PSI.

PTG 400 Series General Purpose Pressure Transducer Features
• Low Static and Thermal Errors
• Welded Case
• Suitable For High Shock And Vibration
• EMI/RFI Protection
• Cable, din or 1/2” Conduit Pipe Electrical Termination

PTG 400 Series General Purpose Pressure Transducer Specifications

Pressure Ranges	25 to 10,000 PSI
Accuracy	±0.25% to ±.5% F.S
Material	17-4PH Wetted Parts 304 SS Housing
Temperature Range	30º to 130º F - Compensated
Output	0.5-4.5 Vdc Ratiometric 1-5,1-6 Vdc, 10 mV/V or 4-20 mA
Excitation	5 Vdc, or 10-28 Vdc
Safe Overload	200% Over Capacity
Burst Pressure	5X or 20,000 PSI whichever is less
Cable	Specify Below

NOTE: Certifications available for .5% units at additional cost. Certifications come standard for .25% and .1%.

AVAILABLE RANGES

-14.7-25 (compound), 25, 50, 100, 200,
500, 1000, 2500, 5000, 10,000 PSI

For Accuracy Specify the following:
PTG 400 - .5% F.S. Unamplified (no certs)
PTG 401 - .25% F.S. Unamplified
PTG 402 - .5% F.S. Amplified (no certs)
PTG 403 - .25% F.S. Amplified

Pressure Connection:
A = 1/4” NPT Male
B = 1/8” NPT Male
F = 7/16”-20 UNF Male

Pressure Units:
B=Bar, K=Kg/cm2, P=PSI

Outputs:
1= 0.5- 4.5 V ratiometric
3= 1-5 Vdc
4= 4-20 mA
6= 1-6 Vdc
A= 10 mV/V

Wetted Material:
0=17-4PH
1=316 L

Electrical:
A=2Ft, B=4Ft, C=6Ft, D=10Ft,
E=Mini DIN 43650, F=Packard
Metripack 150 3-Pin Conn.
