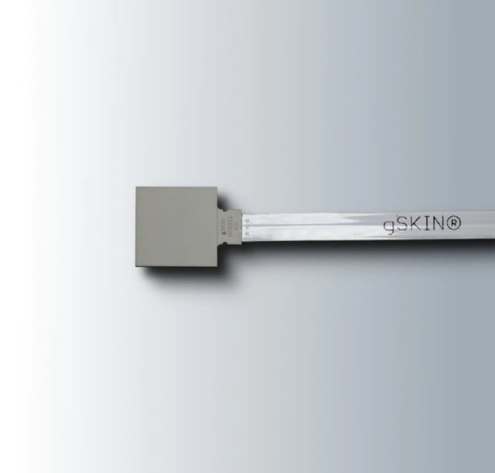

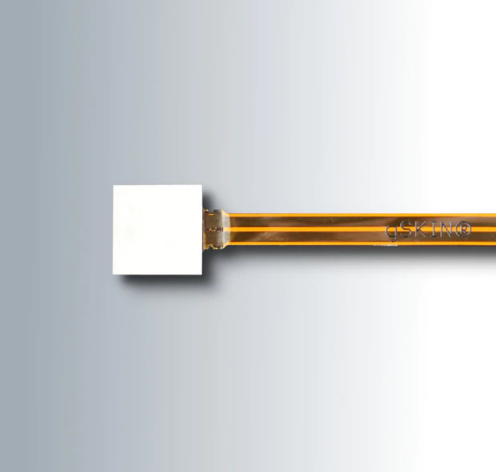

Heat Flux Sensor - gSKIN-XP

• ​Ultra-high resolution of thermal energies and temperature differences.
• ​Low invasiveness and thickness.
• ​Models with connector compatible with all gSKIN®DLOG Data Loggers.
• ​All sensors with conductive heat flux calibration cohering to ISO 8301.

  • Model Number: gSKIN-XP
  • Data Sheet: Date Sheet File
Quantity:
- +
Inquire Now Add to cart
  • Heat Flux Sensor
  • Heat Flux Sensor
  • Heat Flux Sensor
Mouse over image to zoom

Product Specification

1.Heat Flux Sensor - gSKIN-XP Descriprion:

     Our medium-sized heat flux sensor, with superior quality, accuracy, and responsiveness. Available both without and with connector.



2.Heat Flux Sensor - gSKIN-XP Features:

• Ultra-high resolution of thermal energies and temperature differences.

• Low invasiveness and thickness.

• Models with connector compatible with all gSKIN®DLOG Data Loggers.

• All sensors with conductive heat flux calibration cohering to ISO 8301.



3.Heat Flux Sensor - gSKIN-XP Applications:

     R&D, thermal optimization, energy efficiency, industrial monitoring of thermal properties.



4.Heat Flux Sensor - gSKIN-XP Technical parameters:

Product

gSKIN XP

Detector Type

Thermoelectric

Sensing Dimensions (mm)

10.0 x 10.0 x 0.5

Heat Flux Range Min / Max [kW/m²]

-150 / 150

Noise Equivalent Heat Flux per area [W/m²] / absolute [μW]

0.073 / 7.3 (experimentally evaluated values under optimal steady state conditions).

Temperature Difference Resolution [μK]

∼30

Surface Material (Sensing Area)

Aluminum

Response Time (0-95%) [s]

0.7 (Refers to the heat flux measurement).

Min. /Avg. Sensitivity (S) [μV/(W/m²)]

10.0/20.0 (only a reference point)

Max. Compressive Force when clamped [kgf]

< 10

Electrical Resistance [Ohm]

< 150

Thermal Conductivity [W/(m*K)]

∼1.2

Linearity with Power [±%]

1

Operating Temperature Range Min/Max [°C]

-50 / 150

Calibration Accuracy [±%]

3

Calibration Temperature Range Min/Max [°C]

-30 / 70 (Conductive heat flux calibration cohering to the ISO8301 standard with mean temperature of 22.5°C).

Flexprint Length (f) [cm]

5

Temperature Dependence of S [%/°C]

0.25 (The sensitivity increases (decreases) as the temperature goes above (below) 22.5°C).

Homogeneity [±%]

1 (Position dependent signal change across sensing area).

Heat Flux Resolution per area [W/m2] with gSKIN® DLOG / absolute [μW]:

0.09 / 9.0 (Guaranteed minimum heat flux resolution using the gSKIN® DLOG-4219).
