High Concentration Carbon Monoxide Sensor (CO Sensor) - CO-CE

• Range: 10,000 ppm CO limit of performance warranty
• Sensitivity: 10 to 25nA/ppm in 2,000ppm CO
• Response time t90: < 75s from zero to 2,000ppm CO
• Resolution: < 5 RMS noise (ppm equivalent)
• Temperature range: -30 to 50°C
• Pressure range: 80 to 120 kPa
• Humidity range: 15 to 90 % rh continuous
• Weight: < 8 g

  • Model Number: CO-CE
  • Data Sheet: Date Sheet File
Quantity:
- +

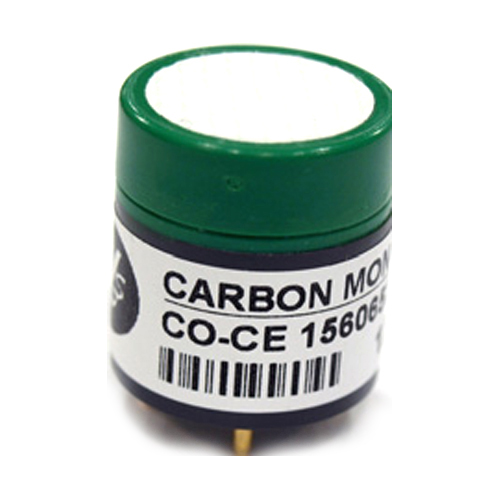

  • High Concentration Carbon Monoxide Sensor (CO Sensor)

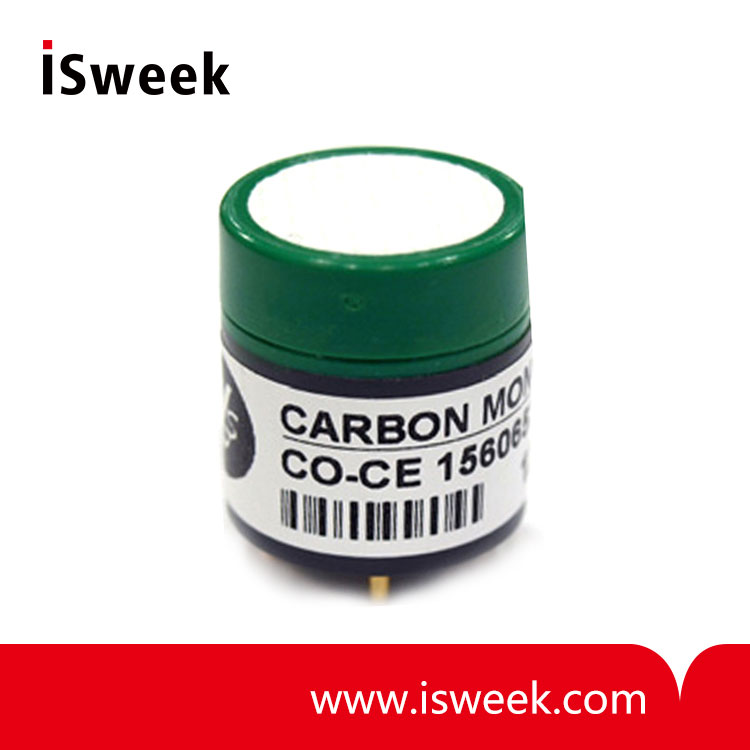

  • High Concentration Carbon Monoxide Sensor (CO Sensor)
Mouse over image to zoom

Product Specification

CO-CE Carbon Monoxide Sensor (CO Sensor) Description
Alphasense Carbon Monoxide gas sensors operate using proven fuel cell technology.

CO-CE Carbon Monoxide Sensor size:
20mm diameter with extra height for additional filter material when measuring combustion gases

The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology.


CO-CE Carbon Monoxide Sensor (CO Sensor) PERFORMANCE
Sensitivity
nA/ppm in 2,000ppm CO
10 to 25
Response time
t90 (s) from zero to 2,000ppm CO
< 75
Zero current
ppm equivalent in zero air
< ± 20
Resolution
RMS noise (ppm equivalent)
< 5
Range
ppm CO limit of performance warranty
10,000
Linearity
ppm error at full scale, linear at zero and 2,000ppm CO
< 500
Overgas limit
maximum ppm for stable response to gas pulse
100,000



CO-CE Carbon Monoxide Sensor (CO Sensor) LIFETIME
Zero drift
ppm equivalent change/year in lab air
< 1
Sensitivity drift
% change/year in lab air, monthly test
< 4
Operating life
months until 80% original signal (24 month warranted)
> 24



CO-CE Carbon Monoxide Sensor (CO Sensor) ENVIRONMENTAL
Sensitivity @ -20°C
% (output @ -20°C/output @ 20°C) @ 400ppm CO
70 to 90
Sensitivity @ 50°C
% (output @ 50°C/output @ 20°C) @ 400ppm CO
102 to 112
Zero @ -20°C
ppm equivalent change from 20°C
< ± 3
Zero @ 50°C
ppm equivalent change from 20°C
< ±5



CO-CE Carbon Monoxide Sensor (CO Sensor) CROSS SENSITIVITY
Filter capacity
ppm-hours H2S
4,000,000
Filter capacity
ppm-hours NO2
10,000,000
Filter capacity
ppm-hours NO
2,000,000
Filter capacity
ppm-hours SO2
5,000,000
H2S   sensitivity
% measured gas @ 20ppm H2S
< 0.1
NO2   sensitivity
% measured gas @ 10ppm NO2
< 0.1
NO    sensitivity
% measured gas @ 50ppm NO
< 0.1
SO2   sensitivity
% measured gas @ 20ppm SO2
< 0.1
Cl2    sensitivity
% measured gas @ 10ppm Cl2
 < 0.1
H2     sensitivity
% measured gas @ 400ppm H2 at 20°C
< 45
C2H4 sensitivity
% measured gas @ 400ppm C2H4
< 2
NH3  sensitivity
% measured gas @ 20ppm NH3
< 0.1



CO-CE Carbon Monoxide Sensor (CO Sensor) KEY SPECIFICATIONS
Temperature range
°C
-30 to 50
Pressure range
kPa
80 to 120
Humidity range
% rh continuous
15 to 90
Storage period
months @ 3 to 20°C (stored in sealed pot)
6
Load resistor
Ω (recommended)
10 to 47
Weight
g
< 8
