Intrinsically Linear Angle Position Sensors - ANG-11HAW1 / ANG-21HAW1

• Angular position sensor with high tolerance for misalignment
• Non-contact angular position sensing and full 360 O rotation
• Comes with 20 AWG 305 mm (12”) discrete wire leads
• RoHS Compliant
• IP68
• Maximum air gap of 6 mm (0.24”)
• Compliant to industrial/automotive EMC/EMI/ESD directives
Operating Temperature: -40 to 140⁰C (-40 to 284⁰F)

  • Model Number: ANG-11HAW1 / ANG-21HAW1
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Intrinsically Linear Angle Position Sensors
  • Intrinsically Linear Angle Position Sensors
Mouse over image to zoom

Product Specification

ANG Sensors

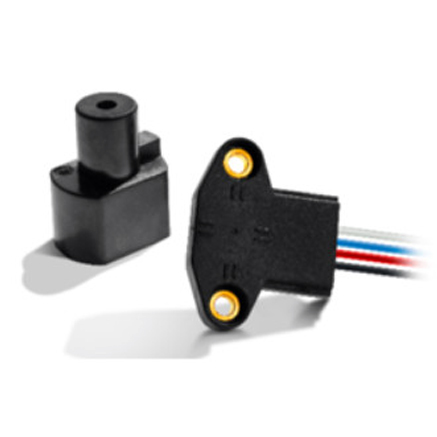

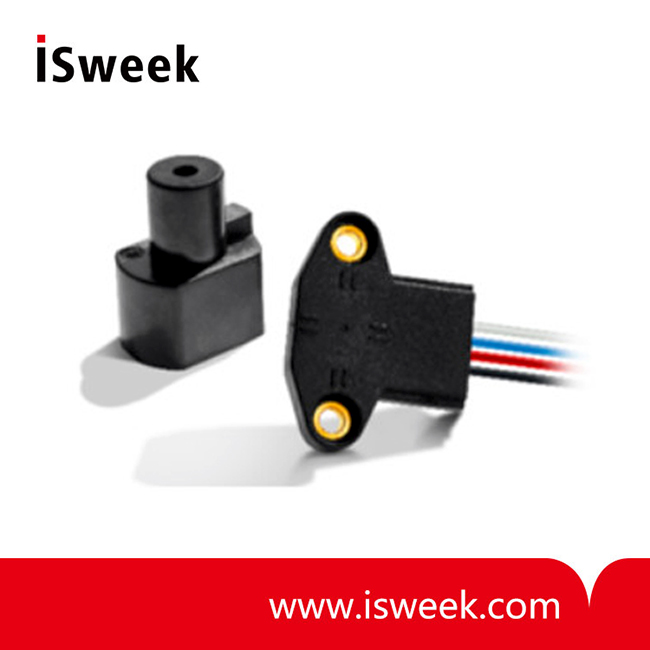

Thin, programmable, non-contact magnetic position sensors capable of continuous rotation, with dual outputs available.

ANG Series Angle Position Sensors Description
The ANG Series sensors are non-contact, intrinsically linear position sensors with one or two independent (redundant) outputs. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.

Actuator magnet part number AS500106 is required to assure proper operation (ordered separately).

ANG Series Angle Position Sensors Features
• Angular position sensor with high tolerance for misalignment
• Non-contact angular position sensing and full 360 O rotation
• Custom programming available for: angle range, slope, PWM output – contact factory
• No mechanical interface means no parts to wear out or jam
• Comes with 20 AWG 305 mm (12”) discrete wire leads
• RoHS Compliant
• IP68*
• Maximum air gap of 6 mm (0.24”)
• Compliant to industrial/automotive EMC/EMI/ESD directives

ANG Series Angle Position Sensors Typical Applications
• Hydraulic valves
• Hydraulic controls
• Electric drives
• Pneumatic controls
• Zero-contact encoder alternative
• Gear selection / shifting position
• Lifting / ride height position
• Throttle / pedal position
• Steering wheel position

ANG Series Angle Position Sensors Environmental Specifications

Operating Temperature
                                                                          -40⁰C to 140⁰C (-40⁰F to 284⁰F)
Ingress Protection
IP68*
**Contact ZF for details on testing conditions

ANG Series Angle Position Sensors Electrical Specifications
Input
Supply Voltage
5.0 VDC ± 10%

Maximum Overvoltage
16 VDC

Reverse Battery Protection
12 VDC
Output Signal

0.5 – 4.5 VDC (with 5 VDC input)
Input Current
Single output
Dual output
8 mA typ., 10 mA max.
16 mA typ., 20 mA max.
Resolution
12 bit
Accuracy, overall
Programmed angle sensing range 35 ⁰ < 65 ⁰ : ± 2.5% Full scale
Programmed angle sensing range: 65 ⁰ < 360 ⁰ : ± 2.0% Full scale
Output Linearity
Programmed angle sensing range 35 ⁰ < 65 ⁰ : ± 2.5% Full scale
Programmed angle sensing range: 65 ⁰ < 360 ⁰ : ± 1.0% Full scale

ANG Series Angle Position Sensors Mechanical Specifications
Measuring Range
 0 ⁰ to 360 ⁰ , customizable (see graph)
Air Gap
         1 mm to 6 mm (application dependent); 2.5 mm typ.
Eccentricity
± 2 mm (0.08”)

ANG Series Angle Position Sensors Products
Part Number
Output
Interface
ANG-11HAW1
Analog single
20 AWG x 305 mm (12") discrete wires
ANG-21HAW1
Analog dual
20 AWG x 305 mm (12") discrete wires
