Mini and Low Cost Diffused Silicon Pressure Transmitter - JYB-KO-M

• Supply Voltage​: 18 to 30VDC or +4.5 to 5.0VDC​
• Operating Range​: 0.35Bar to 100Bar​
• Accuracy​: ±0.2%, ±0.5%, ±1.0% (25℃)​
• Pressure Response​: <200ms​
• Long Term Stability​:<0.1% FS per year​
• Working Temperature Range​: -20 to 85℃​
• 4 to 20 mA output / 0~5VDC output

  • Model Number: JYB-KO-M
  • Data Sheet: Date Sheet File
Quantity:
- +

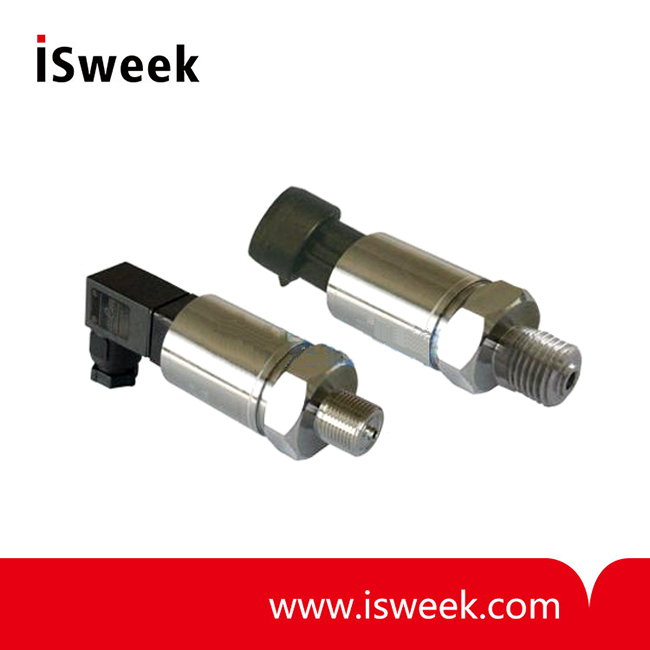

  • Mini and Low Cost Diffused Silicon Pressure Transmitter

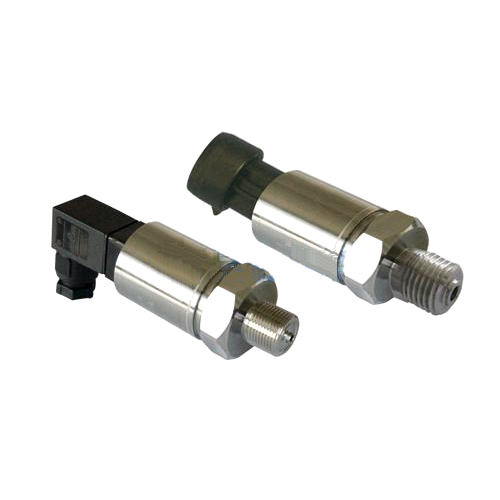

  • Mini and Low Cost Diffused Silicon Pressure Transmitter
Mouse over image to zoom

Product Specification

JYB-KO-M Mini and Low Cost Pressure Transmitter Description
Model JYB-K M is a cost efficient general purpose gage-only diffused Silicon pressure transmitter. Each unit is constructed of welded stainless steel for durability in dry rugged environments. Both gas and liquid pressure overloads of up to 50% over capacity are safely accepted. The transmitter uses our proprietary current output with digital compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.

JYB-KO-M Mini and Low Cost Pressure Transmitter Features
• 0.0015 % FS/°F temperature effect
• 0.2%, 0.5 % or 1.0% accuracy
• 0.35 to 100 Bar range
• True gage or absolute
• 4 to 20 mA output / 0~5VDC output
• Isolated double wall construction
• Enhanced temperature stability
• ROHS and CE Certification

JYB-KO-M Mini and Low Cost Pressure Transmitter Specification

Pressure Measurement
Supply Voltage
18 to 30VDC or +4.5 to 5.0VDC
Operating Range
Any zero based full scale from 0.35Bar to 100Bar
Over Pressure
Three times for the full scale
Output Signal
Current two-wire 4-20mA (<500Ω);
0~5VDC 0r 0.5~4.5VDC(>10KΩ)
Pressure Media
Fluids compatible with 316 stainless steel and
Hastelloy C276 (NACE compatible grades)
Performance Specifications
Accuracy
±0.2%, ±0.5%, ±1.0% (25℃)
Pressure Response
<200ms
Long Term Stability
<0.1% FS per year
Temperature Range
Compensation form 0 to 60℃
Working from -20 to 85℃
Temperature Effects
Max 1.0% FS typical over 0 to 60℃
Max 2.0% FS typical over -20 to 85℃
Physical Connection
Pressure Connection
G1/4 female with Option B screw-in adaptor
Electrical Connection
M12 x 1 Bayonet plug (IP67)
DIN43650 Plug/Socket (IP65)

JYB-KO-M Mini and Low Cost Pressure Transmitter Ordering Codes
