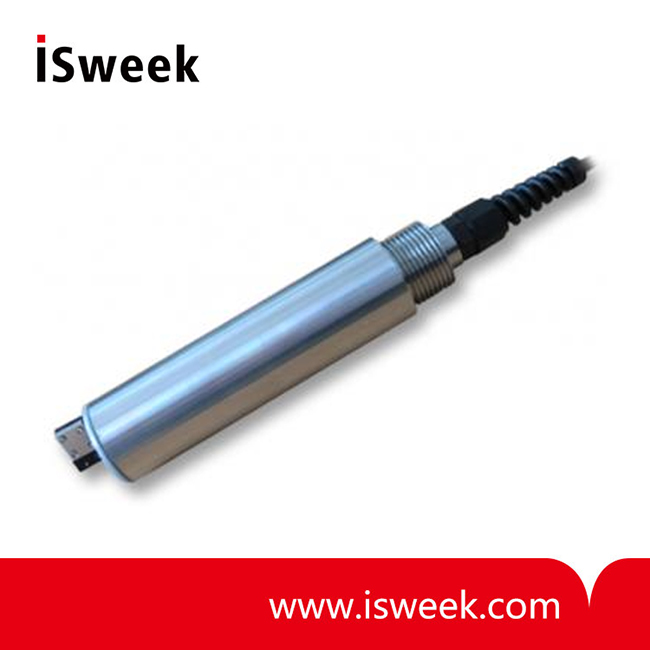

Online Self-cleaning Chlorophyll Sensor - Y514-A

• Range: 0~400ug/L(Chl) or 0~100RFU
• Housing IP Rating: IP68
• Deepest Depth: 10m underwater
• Resolution: 0.1ug/L Chl
• Temperature Range: 0 ~ 50℃
• Interface: Support RS-485, MODBUS protocols
• Power Requirements: DC 5~12V, current <50m

  • Model Number: Y514-A
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Online Self-cleaning Chlorophyll Sensor
  • Online Self-cleaning Chlorophyll Sensor
Mouse over image to zoom

Product Specification

Y514-A Chlorophyll Sensor Description
Chlorophyll sensor is developed for in-situ monitoring. It has integrated wiper system which can automatically clean the optical sensor surface. Its low maintenance and rugged design is especially good for long term deployment for river, lake, pond, and ocean monitoring.

Y514-A Chlorophyll Sensor Features
• 0~400ug/L Chl or 0~100RFU
• Accuracy 0.09ug/L Chl
• 0~50 ℃; IP68 rating, 10m underwater
• Fluorometric method
• RS-485; MODBUS protocol compatible
• One or two point user calibration
• With automatic cleaning wiper, effectively eliminate the bubbles, reducing contamination without interference by the light interference from the outside world

Y514-A Chlorophyll Sensor Technical Parameters

Range
0~400ug/L(Chl) or 0~100RFU
Housing IP Rating
IP68
Deepest Depth
10m underwater
Resolution
0.1ug/L Chl
Temperature Range
0 ~ 50℃
Interface
Support RS-485, MODBUS protocols
User Calibration
one or two point
Power Requirements
DC 5~12V, current <50m
Sensor OD
33 mm
Sensor Length
156 mm
Cable Length
10m standard; 5m, 15m or30m optional
Body Materials
POM
