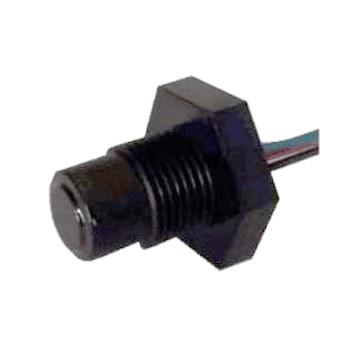

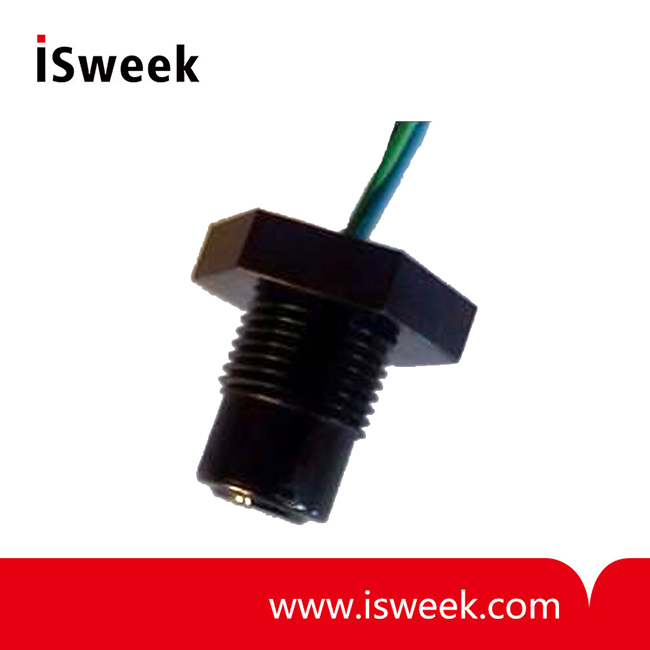

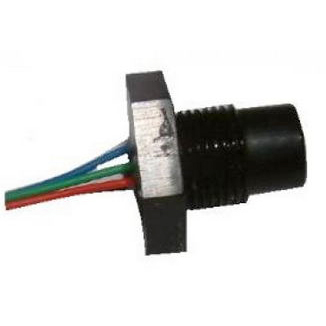

Optoprox Series Proximity Sensors - PSC200D3SH

• Small & Compact
• Reliable Solid State Technology
• Detects all Materials
• Not Sensitive to Magnetic Fields
• Opertates to 1kHz
• Temperature Range from -40 to +125°C
• Low Power Consumption

Model Number: PSC200D3SH
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

PSC200D3SH Proximity Sensors Description

Our OptoProx Series is designed for detection ranges of typically 10mm and can detect any material except from black surfaces. With its very small size, robust structure and non-sensitivity, it is perfect for proximity sensing and switching applications in Automation Equipment, Machinery and Material Handling & Process Control.

The OptoProx Range is the ideal product choice as they are:

PSC200D3SH Proximity Sensors Applications

The OptoProx Optical Proximity Sensor is ideal for use in applications such as:

• Machinery
• Vending Machines
• Production and Packaging Lines (counting items)
• Speed Sensing
• Suitable Alternative to Inductive Proximity Sensors in many applications
• Automation Equipment
• Material Handling and Process Control
• Detects Bulk Materials: Wood Pellets, Grain, Rice

PSC200D3SH Proximity Sensors ELECTRICAL SPECIFICATIONS

Supply Voltage (Vs)	+4.5 Vdc to +15.4Vdc
Supply Current (Is)	Max 2.5mA (Vs = 15.4Vdc)
Output Type	The output of the proximity sensor will be low when no object is within it’s field of vision. Otherwise it will toggle high.
Output Sink and Source Current (lout)	100mA
Operating Temperatures	-25°C to +80°C (Standard) -40°C to +125°C (Extended)
Storage Temperatures	-30°C to +85°C (Standard) -40°C to +125°C (Extended)
