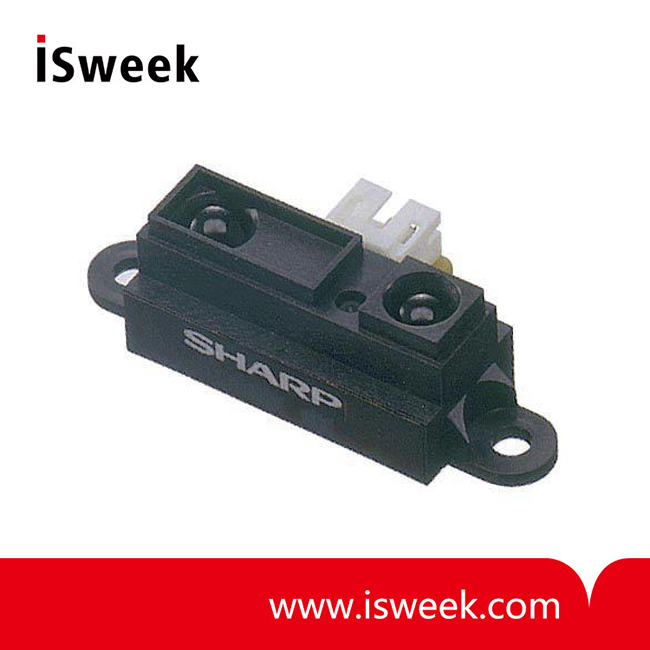

Distance Measuring Sensor Unit Proximity Sensor - GP2Y0A41SK0F

• Distance Measuring Sensor Unit
• Measuring distance : 4 to 30 cm
• Analog output type
• Short measuring cycle (16.5ms)
• Package size (29.5 × 13.0 × 13.5mm)
• Operating supply voltage: 4.5 to 5.5 V
• Operating temperature: -10 to +60°C

  • Model Number: GP2Y0A41SK0F
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Distance Measuring Sensor Unit Proximity Sensor
  • Distance Measuring Sensor Unit Proximity Sensor

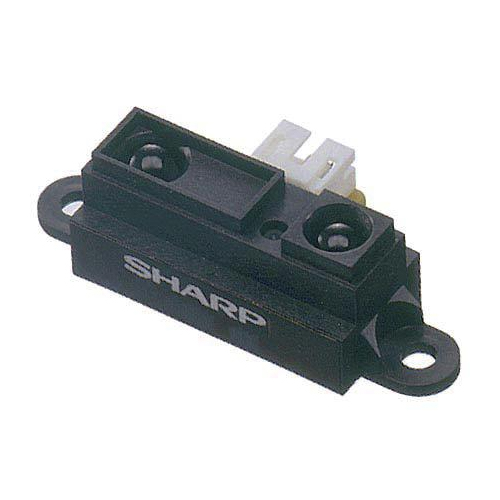

Mouse over image to zoom

Product Specification

GP2Y0A41SK0F

Distance Measuring Sensor Unit
Measuring distance : 4 to 30 cm
Analog output type


GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Description

GP2Y0A41SK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IR-LED (infrared emitting diode) and signal processing circuit.

The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method.

This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.


GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Features
1. Distance measuring sensor is united with PSD, infrared LED and signal processing circuit
2. Short measuring cycle (16.5ms)
3. Distance measuring range : 4 to 30 cm
4. Package size (29.5 × 13.0 × 13.5mm)
5. Analog output type


GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Agency approvals/Compliance

1. Compliant with RoHS directive (2002/95/EC)


GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Applications
1. Cleaning robot
2. Personal robot
3. Sanitary


GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Absolute maximum ratings (Ta=25°C, Vcc=5V)

Parameter
Symbol
Ratings
Unit
Remark
Supply voltage
Vcc
-0.3 to +7
V -
Output terminal voltage
Vo
-0.3 to Vcc+0.3 V -
Operating temperature
Topr
-10 to +60  °C
-
Storage temperature
Tstg
-40 to +70 °C
-


GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Operating supply voltage

Symbol
Rating
Unit
Remark
Vcc
4.5 to 5.5
V -

GP2Y0A41SK0F Distance Measuring Sensor Proximity Sensor Electro-optical Characteristics

Parameter
Symbol
Conditions
MIN.
TYP.
MAX.
Unit
Measuring distance range
ΔL
(Note 1)
4
- 30 cm
Output terminal voltage
Vo
L=30cm (Note 1)
0.25 0.4 0.55 V
Output voltage difference
ΔVo
Output change at L change (30cm → 4cm) (Note 1)
1.95 2.25 2.55 V
Average supply current
Icc
L=30cm (Note 1)
- 12 22 mA
※L : Distance to reflective object
(Note 1) Using reflective object : White paper
                                                  (Made by Kodak Co., Ltd. gray cards R-27・white face, reflective ratio ; 90
