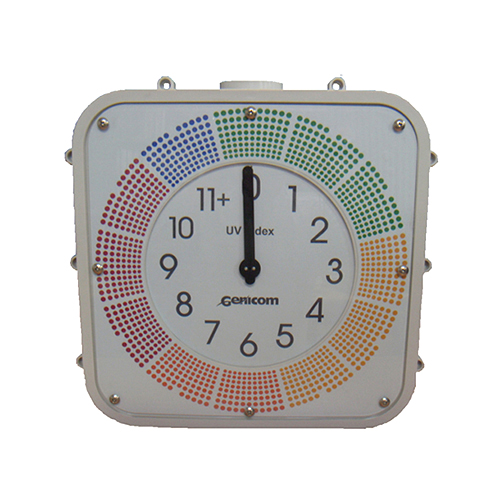

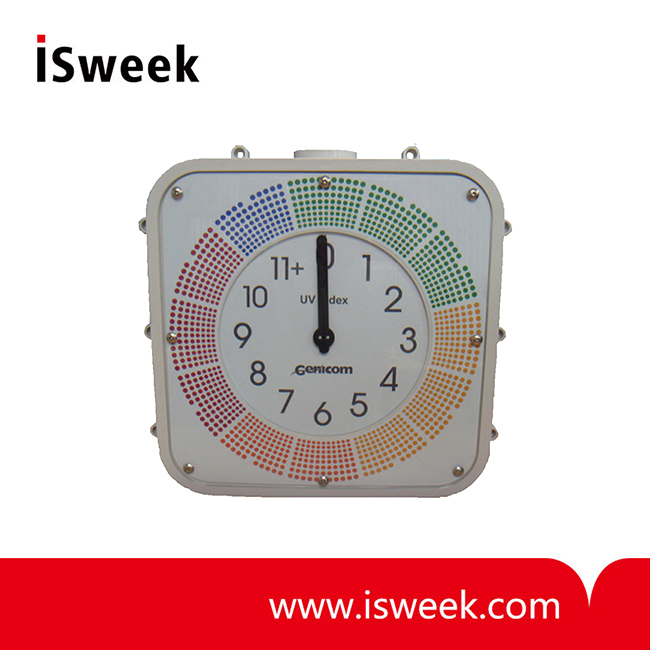

Outdoor UV Index Meter - GUVB-S11GS-AG03.3

- Displays UV index by hand of clock
- Fixing method: Installation at the Pole
- Size of Panel: 460 mm X 460 mm X 150 mm
- Weight: 9 kg
- Operating Temperature: -30 ~ 70℃
- Supply Voltage: 110~220AC, 50/60 Hz
- UV Index Display: 0 UVI to 11 UVI
- Delay Time: 10 sec

  • Model Number: GUVB-S11GS-AG03.3
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Outdoor UV Index Meter
  • Outdoor UV Index Meter
Mouse over image to zoom

Product Specification

GUVB-S11GS-AG03.3 Outdoor UV Index Meter Features
 Displays UV index by hand of clock

GUVB-S11GS-AG03.3 Outdoor UV Index Meter Material
 Case : ABS
 Cover : Acrylic

GUVB-S11GS-AG03.3 Outdoor UV Index Meter Applications
 UV Index indicating in street, beach, swimming pool, park and so on
 UV Index alarm

GUVB-S11GS-AG03.3 Outdoor UV Index Meter Physical Dimensions & Connection  [unit : mm]

GUVB-S11GS-AG03.3 Outdoor UV Index Meter Absolute Maximum Ratings

Parameter
Symbol
Value
Unit
Remark
Storage Temperature
Tsp
-30 ~ 80


Operating Temperature
Top
-30 ~ 70



GUVB-S11GS-AG03.3 Outdoor UV Index Meter Mechanical Data

Parameter
Value
Unit
Remark
Weight
9 kg

Size
460 × 460 × 150
mm3
Supply Voltage
 110 ~ 220
AC 50/60 Hz


GUVB-S11GS-AG03.3 Outdoor UV Index Meter Electrical Characteristic (at 25 ℃)

Parameter
 Symbol
Value
Unit
 Remark
Min.
Typ.
Max.
UV Index Display

0

11+ UVI

Delay Time
Tr

10
sec
