Pocket Meters - 840010/840011

• 840010​ Pocket Light Meter
• 840011 Pocket Laser Power Meter​
• 840010 Range: 0.1 lx to 399.9 klx​
• 840010 Resolution​: 0.1 Lux​
• 840011 Resolution​: 0.01 uW​
• Probe Dim​: 3¼" x ½" x ½"
• Operating Temp.: 0 to 40°C​
• Operating RH​: 80% non condensing, maximum

  • Model Number: 840010/840011
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Pocket Meters
  • Pocket Meters
Mouse over image to zoom

Product Specification

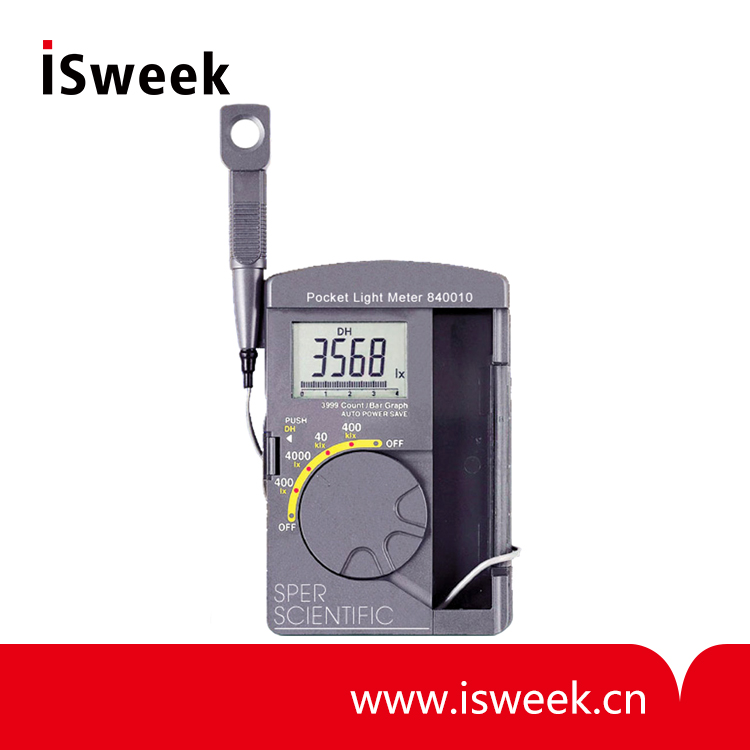

Pocket Meters

Easily carried in a shirt pocket

These tiny meters are less than ¾" thick and weigh only 4 oz (120 g). The controls, display and sensor are all neatly contained and protected within the folding case.


Directions are printed right inside the cover. When open, the sensor may be extended for remote use or snaps into a fixed position atop the case. Both units feature bar graph display, auto power off, hold functions and indicate low battery and over range. Powered by 2 button cell batteries (included).

Dim: 4½" x 3" x ¾" (177 x 76 x 18 mm).

Pocket Meters Specifications
Model
840010
840011
Range
0.1 lx to 399.9 klx
Calibrated at 633 nm but can also read any other
wavelength in the 400 to 1100 nm range using a

chart inside the case cover.

Can calibrate directly to any other 400 to 1100 nm
wavelength for special orders (minimum order of 50),
with a 4 month lead time.

Resolution
0.1 Lux
0.01 uW
Accuracy
±4% fs
±5% @ calibrated wavelength
633 nm / 1 mW
Additional Features

Min/Max
Cord Length
36"
15"
Probe Dim
3¼" x ½" x ½"
(84 x 16 x 10 mm)
3¼" x ½" x ½"
(84 x 16 x 10 mm)
Operating Temp.
0 to 40°C
0 to 40°C
Operating RH
80% non condensing, maximum
80% non condensing, maximum

No.
Description
840010
Pocket Light Meter
840010C
Pocket Light Meter Certified
840011
Pocket Laser Power Meter
