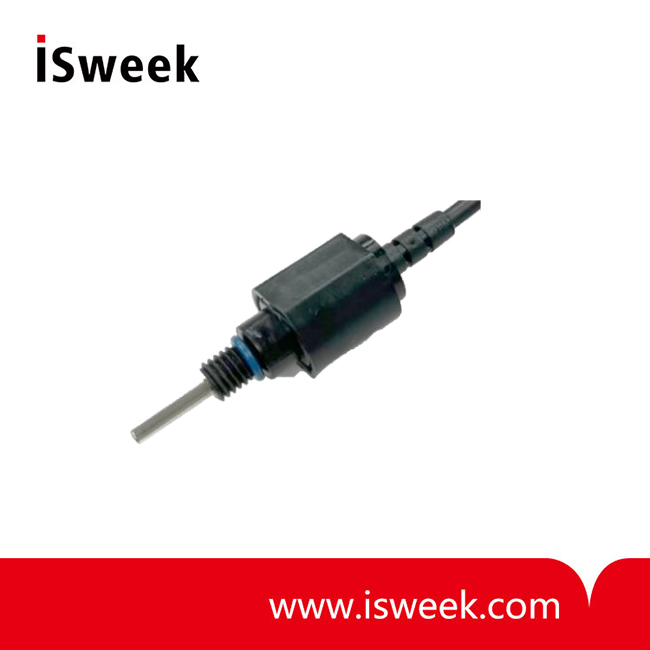

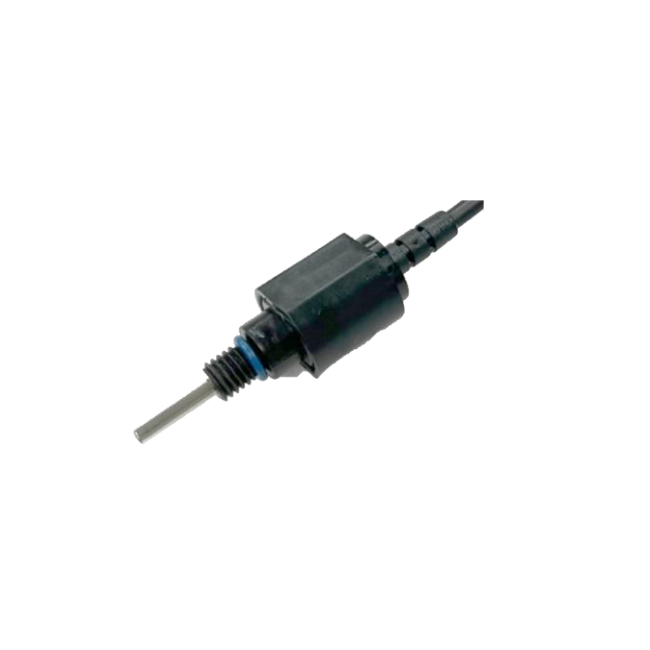

Pressure Temperature Sensor - SY-PT Series

Analog Voltage Output
Absolute Pressure
Integrated Sensor for Fuel Cell

Model Number: SY-PT Series
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

Pressure Temperature Sensor SY-PT Series Description：

The SY-PT is a compact integrated sensor of measuring pressure and temperature at once by applying absolute pressure element & NTC Thermistor. It can be applied to lightweight hydrogen fuel cell drones for long-distance flights.

Maintaining a precise pressure and temperature reading in fuel cell is critical for its efficiency, endurance, and safety. The SY-PT is designed to measure both the fuel cell stack and thermal management coolant system. Also, it is optimized to function in environments with pressure and temperature range during fuel cell operation.

Pressure Temperature Sensor SY-PT Series FEATURES：

• Analog Voltage Output

• Absolute Pressure

• Integrated Sensor for Fuel Cell

Pressure Temperature Sensor SY-PT Series APPLICATIONS：

Industrial

• Fuel Cell system (Drone)

• Thermal management System (Coolant)

Automotive

• Fuel Cell system

• Thermal management System (Coolant)

Pressure Temperature Sensor SY-PT Series PRODUCT SPECIFICATION：

Detection range	0.2～3.0 bar
Accuracy	±1.8 %FS
Supply Voltage	5 V DC
Output Voltage	0.4 ~4.65 V
Current Consumption	12 mA
NTC Resistance (@25℃)	10 kΩ±1%
NTC B (25/85)	3,435 K±1%
Temperature Response time	3.5 Sec (25/85)
Measuring Temperature	- 40℃ ～120℃
Operation Temperature	- 40℃ ～100 ℃
Storage Temperature	- 40℃ ～100 ℃
