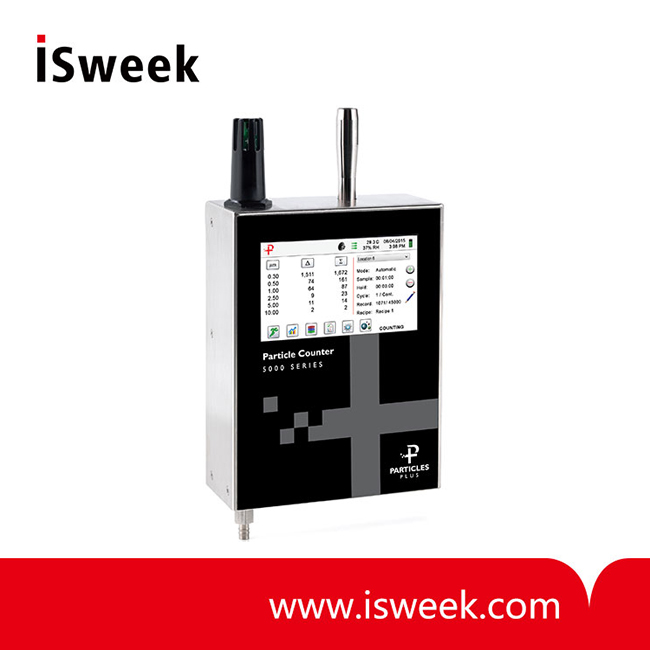

Remote Airborne Particle Counter 0.3 µm @ 0.1 CFM - 5301

• Size Range: 0.3 to 25 μm
• Size Channels: Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
• Flow rates: 0.1 CFM (2.83 LPM)
• Concentration Limit: 4,000,000 Particles/ft³ @ 5% coincidence loss
• Counting Efficiency: 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
• Count Alarms: 1 to 9,999,999 counts
• Number of Channels: 6

  • Model Number: 5301
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Remote Airborne Particle Counter 0.3 µm @ 0.1 CFM
  • Remote Airborne Particle Counter 0.3 µm @ 0.1 CFM
Mouse over image to zoom

Product Specification

5301 Remote Particle Counter
0.3 µm @ 0.1 CFM with (optional) long-life internal pump
The 5301 Remote Particle Counter is the most feature-advanced remote particle counter available. Integration is easy into a building automation and cleanroom management system via Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232.

The 5301 remote particle counters display and report 6 user-selectable particle size channels, as well as temperature and relative humidity, flow and sensor status, date of last calibration, serial number, laser on-time and date of manufacture for easy maintenance and warranty management.

This remote particle counter stores up to 45,000 time stamped particle count and environmental data records which provides data redundancy on every instrument. Particles Plus counters can be controlled and monitored remotely via web browser.

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 5301 ensures compliance with an on-board pulse height analyzer.

5301 Remote Particle Counter Features and Benefits
• Measures 0.3 μm to 25 μm
• 0.1 CFM (2.83 LPM) flow rate
• Long-life laser diode technology
• Measures up to 6 channels of simultaneous data
• Approximates mass concentration in μg/m³
• Large easy-to-use icon driven color touch screen display
• (Optional) temperature and relative humidity probe
• (Optional) internal vacuum pump
• Stores up to 45,000 sample records for on-board data redundancy
• Easy configuration and transferable from instrument to instrument
• Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.
• Static or dynamic IP address (DHCP)
• Internal audible alarm
• User-selectable channel sizes
• Complies with ISO 21501-4 and JIS B9921 standards
• Easy to clean and wipe down with minimal particle traps
• Versatile mounting options
• Seamless integration into a facility monitoring system
• Light weight stainless steel enclosure
• 2 year warranty. Extended warranties available.

5301 Remote Particle Counter Specifications‍

Size Range 0.3 to 25 μm
Size Channels Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Flow rates 0.1 CFM (2.83 LPM)
Concentration Limit 4,000,000 Particles/ft³ @ 5% coincidence loss
Counting Efficiency 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Light Source Long Life Laser Diode
Zero Count <1 count / 5 minutes (<2 particles / ft³) (per ISO 21501-4 & JIS)
Count Modes Automatic, manual, real-time meter, cumulative/differential, count or concentration
Count Alarms 1 to 9,999,999 counts
Calibration NIST traceable
Display 4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Vacuum Requirements External vacuum >15” (38.1 cm) of Hg
Optional Internal
Vacuum Pump
Internal pump with automatic flow control
Number of Channels 6
Custom Size Channels Calibration for custom size channels available
Airflow Internally monitored
Audible Alarm Adjustable built-in alarm
Communication Modes Ethernet and USB
Optional Communication
Modes
Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor Optional temperature and relative humidity probe 32º to 122ºF (0º to 50ºC) ±1ºF (0.5ºC),
15-90% ±2% relative humidity
Alarm Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow
Standards ISO 21501-4 and JIS B9921
Calibration Recommended minimum once per year
External Surface Stainless steel
Dimensions (L x W x H) 5.2” x 2.3” x 8.9” (13.3 cm x 5.8 cm x 22.6 cm) includes barb fittings
Weight 2.6 lb (1.18 kg)
Accessories Quick start guide, operating manual on USB flash drive, isokinetic probe, power supply & cable
Optional Accessories Printed manual, temperature relative humidity sensor, isokinetic probes, purge filter, data
cable, mounting bracket and sample tubing
Buffer Memory 45,000 sample records (rotating buffer) including particle count data and environmental data
Sample Time 1 second to 99 hours
Power 110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions 41º to 104ºF (5º to 40ºC) / 20% to 95% non-condensing
Storage Conditions 32º to 122ºF (0º to 50ºC) / Up to 98% non-condensing
Warranty 2 Years. Extended warranties available.
