Remote Particle Counter - P235

• Measures 0.5 μm and 5.0 μm
• 0.1 CFM (2.83 LPM) flow rate
• Measures 2 channels of simultaneous data
• Power: 9-30 VDC
• Long life laser diode
• Concentration limit of 2,000,000 per ft³
• Operating Temperature: 5 to 35°C
• Operating Humidity: 20% to 95%RH non-condensing

  • Model Number: P235
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Remote Particle Counter
  • Remote Particle Counter
  • Remote Particle Counter
Mouse over image to zoom

Product Specification

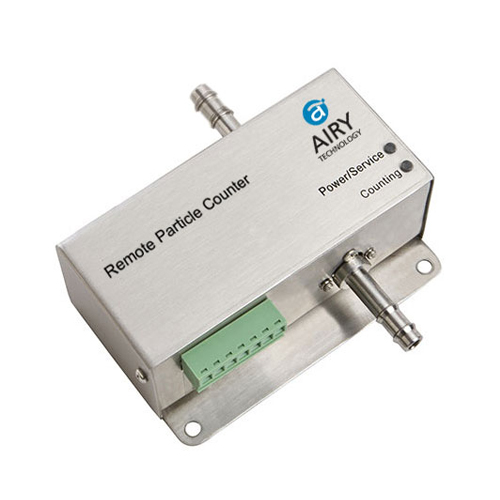

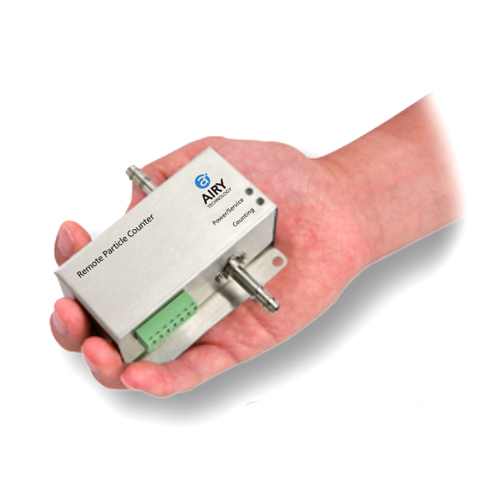

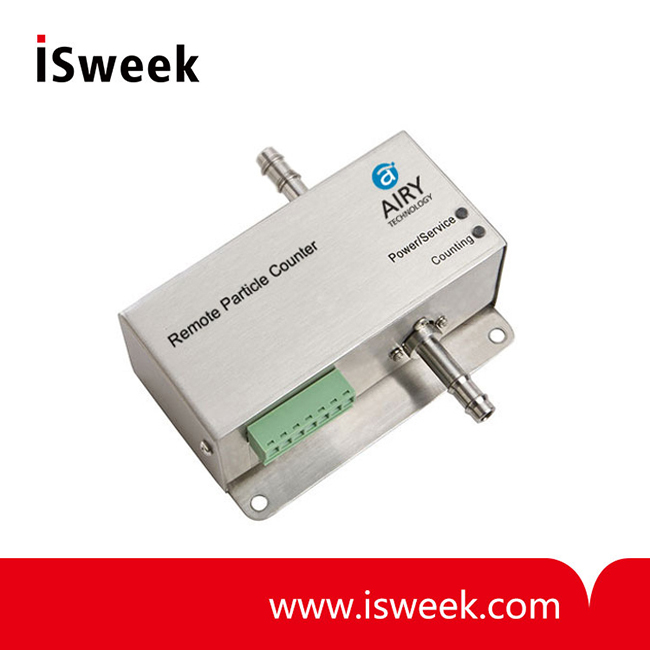

Remote Particle Counter
Model P235


The P235 remote particle counter measures 0.5 µm and 5.0 µm with a flow rate of 0.1 CFM (2.83 LPM). Integration is easy into a real-time monitoring or building management system via Modbus™ RTU or Modbus™ ASCII. The P235 is the smallest remote particle counter in the market and has easy mounting options. The P235 complies with ISO 21501-4 and includes a 2 year limited warranty.


P235 Remote Particle Counter Features & Benefits
• Measures 0.5 µm and 5.0 µm
• 0.1 CFM (2.83 LPM) flow rate
• Measures 2 channels of simultaneous data
• Long life laser diode
• Modbus™ RTU or Modbus™ ASCII outputs
• Concentration limit of 2,000,000 per ft³
• Complies with ISO 21501-4 and JIS B9921 standards
• Lightweight stainless steel enclosure
• Easy to clean and wipe down
• 2 year limited warranty


P235 Remote Particle Counter Specifications

Channel Sizes  0.5 µm and 5.0 µm
Counting Efficiency  50% at 0.5 µm; 100% for particles > 0.75 µm (per JIS)
Concentration Limits  2,000,000 particles / ft3 at 5% coincidence loss
Light Source  Long life laser diode
Zero Count Level  <1 count / 5 minutes (per JIS B9921)
Flow Rate  0.1 CFM (2.83 LPM)
Flow Control  Critical orifice
Vacuum Requirements  External vacuum >15" (38.1 cm) of Hg
Calibration  NIST traceable
Sample Probe/Tubing  Isokinetic sampling probe
Communication Interface  Modbus™ RTU or ASCII outputs (specified upon order)
Power  9-30 VDC
Dimensions (L x W x H)  1.8" x 3.7" x 1.5" (4.5 cm x 9.3 cm x 3.8 cm) does not include probes
Weight  0.62 lb (0.28 kg)
Standards  ISO 21501-4 and JIS B9921
Warranty  2 year limited warranty
Operating Conditions  5 to 35°C, 20% to 95%RH non-condensing
Storage Conditions  -20 to 50°C, Up to 98%RH non-condensing
Optional Accessories  Isokinetic sampling probe, purge filter, data cable, vacuum and sample tubing
