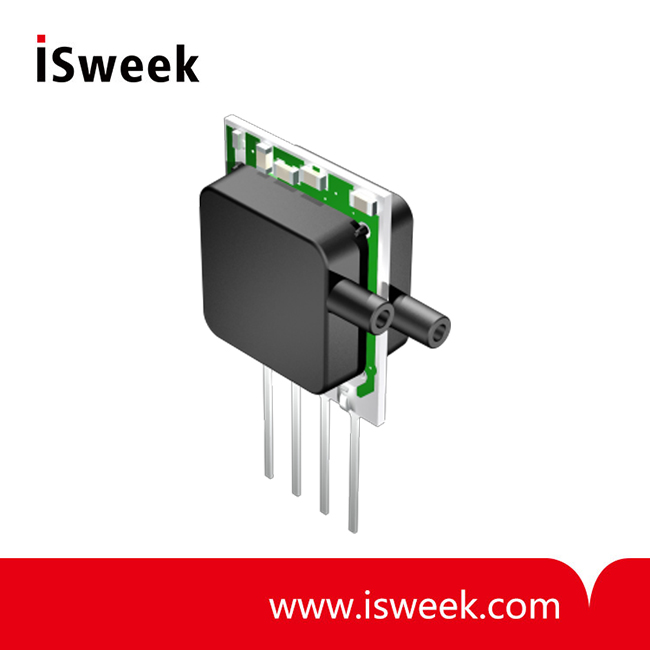

SAMP Series Barometric Amplified Pressure Sensors - BARO-A-4V-MINI

Product Specification

Barometric Amplified Pressure Sensors
600 to 1,100 mbar Barometric Pressure Sensor

SAMP Series Barometric Amplified Pressure Sensors General Description
The Miniature Amplified Output pressure sensors is based upon a proprietary technology to reduce all output offset or common mode errors. This model provides a calibrated amplified output with superior output offset characteristics.  Output offset errors due to change in temperature, stability to warm-up, stability to long time period, and position sensitivity are all significantly reduced when compared to conventional compensation methods. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage and operation from any D.C. supply voltage between 4.5 and 5.5 volts.

SAMP Series Barometric Amplified Pressure Sensors Features
• Barometric Pressure Range
• Temperature Compensated
• Calibrated Zero and Span

SAMP Series Barometric Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Monitoring
• Altimeters
• Chemical Analysis
