SMD Gage Pressure sensor Module - MS5536C

• Pressure range -400 to 1000 mbar (Optional -1000 to 400 mbar)
• 0.1 mbar Resolution
• 3-wire serial interface
• Low voltage / low power
• 16-Bit ADC Resolution
• Supply voltage 2.2 V to 3.6 V
• Operating temperature range -40°C to +60°C

  • Model Number: MS5536C
  • Data Sheet: Date Sheet File
Quantity:
- +

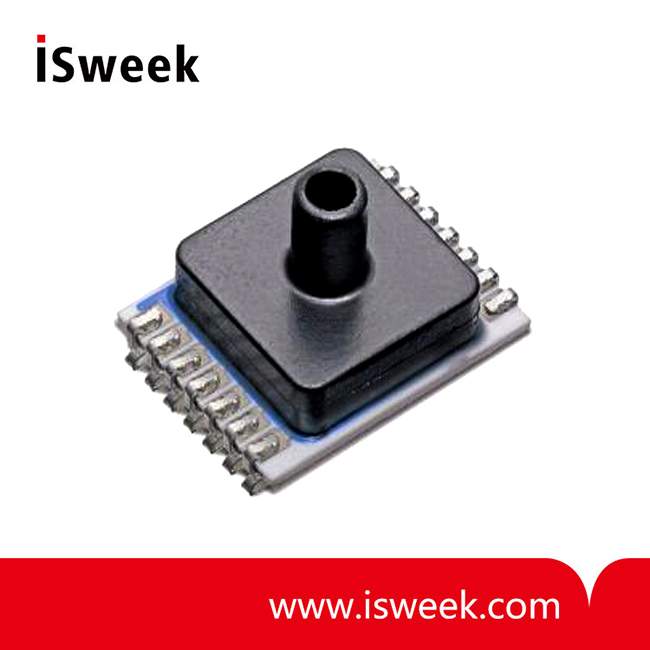

  • SMD Gage Pressure sensor Module

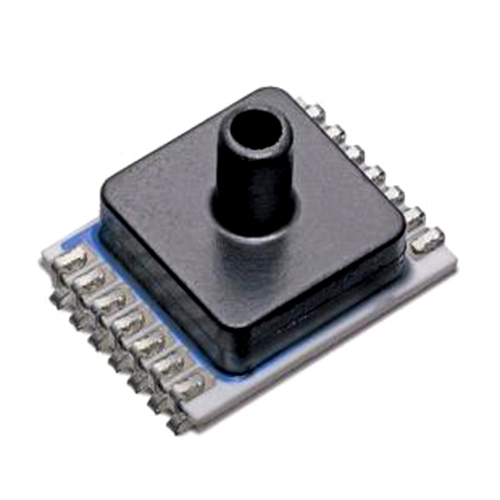

  • SMD Gage Pressure sensor Module
Mouse over image to zoom

Product Specification

MS5536C
SMD Gage Pressure Module

MS5536C SMD Gage Pressure Module Specifications
• Pressure range -400 to 1000 mbar (Optional -1000 to 400 mbar)
• 0.1 mbar resolution (16 bits)
• Factory Calibrated (coefficients for software compensation stored on-chip)
• 3-wire serial interface
• Low Voltage  / low power


MS5536C SMD Gage Pressure Module Description
MS5536C is a family of high-resolution factory calibrated pressure sensors. The devices include a piezoresistive pressure sensor and an ADC-Interface IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64-Bit of individually calibrated compensation coefficients are stored allowing for a highly accurate software compensation of process spread and temperature effects.

The devices have a very low standby current and automatically enter power down mode after each conversion. The optimum compromise of refresh rate and average current consumption can be defined by the application software.

MS5536C SMD Gage Pressure Module Features
• 16-Bit ADC Resolution
• Supply voltage 2.2 V to 3.6 V
• Low supply current
• -40°C to +60°C
• Small size
• No external components required


MS5536C SMD Gage Pressure Module Applications
• Medical application
• Blood pressure meter
• Air flow measurement
• HVAC application


MS5536C SMD Gage Pressure Module Device Package Outlines



MS5536C SMD Gage Pressure Module Ordering Infomation

Product Code
Product
Art. No
Package
Comments
MS5536-CPJU
SMD Gage
Pressure Module
RoHS

325536008
Gage with plastic cap, upright
nozzle, vent hole on backside,
J-Lead type
Pressure Range (port1 - port2):
-400 mbar …+1000 mbar
MS5536-CNJU
SMD Gage
Pressure Module
RoHS

325536009
Gage with plastic cap, upright
nozzle, vent hole on backside,
J-Lead type
Pressure Range (port1 - port2):
-1000 mbar …+400 mbar
