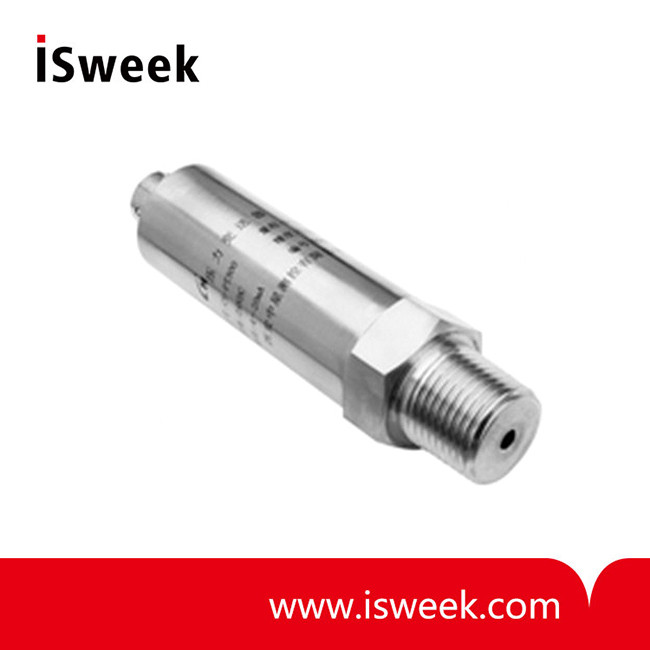

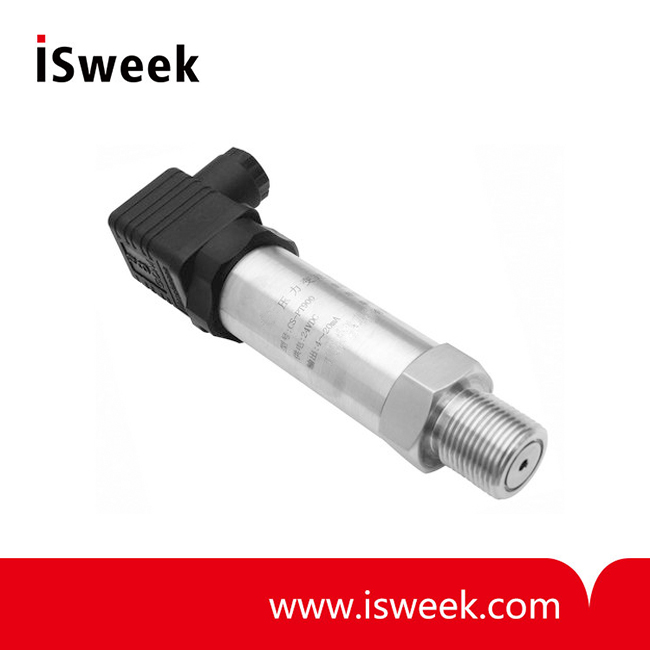

Sputtered Thin Film Pressure Transducer - CS-PT800

• Range 0...10bar to 2200bar
• Accuracy ±0.25%F.S, ±0.5%F.S
• Operating temperature: -50℃~200℃
• Output: 4~20mA (2 wires), 0-10Vdc (3 wires),1-10Vdc (3 wires),etc
• Power supply: 12~30Vdc,etc
• Insulation: >100M Ω@50V
• Electrical capacity: 500V@60 second

Model Number: CS-PT800
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CS-PT800 Sputtered Thin Film Pressure Transducer

CS-PT800 Thin Film Pressure Transducer Features

• Whole weld without O-ring
• Excellent temperature stability
• High over pressure and burst pressure
• Customized pressure and electrical connection
• Rugged housing

CS-PT800 Thin Film Pressure Transducer Applications
• Engineering machinery
• High alpine environment
• Natural gas storage equipment

CS-PT800 Thin Film Pressure Transducer Specifications

Items	Specs
Range	0...10bar to 2200bar	1MPa=10bar 1bar≈14.5PSI 1PSI=6.8965KPa
Over pressure	2 times (2X)
Burst pressure	4 times (4X)
Accuracy	±0.25%F.S, ±0.5%F.S
Stability	Typical: 0.25%F.S, Maximum: 0.4%F.S
Operating temperature	-50℃~200℃
Housing material	1Cr18Ni9Ti SS
Output	4~20mA (2 wires), 0-10Vdc (3 wires),1-10Vdc (3 wires),etc
Power supply	12~30Vdc,etc
Load capacity	(U-10)/0.02(Ω) for 4-20mA
Insulation	>100M Ω@50V
Electrical capacity	500V@60 second
Vibration/impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Durability	2 x 10⁸ Circles @ 25℃
Electrical connection	Din43650, M12, Direct cable, Packard,D eutsch DT04-4P, etc
Pressure port	M20 x 1.5, G1/4, G1/2, R1/2, NPT1/2, NPT1/4, etc
Certificate	CE
Electromagnetic compatibility	Electromagnetic radiation: EN50081-1/-2 Electromagnetic sensitivity: EN50082-2
