Thermal Mass Flow Sensor - P1K0/050.232.2K.C.050.M.U

• Suitable for aggressive liquids
• High chemical resistance
• No contact between sensor and liquid
• Simple flow switches possible

  • Model Number: P1K0/050.232.2K.C.050.M.U
  • Data Sheet: Date Sheet File
Quantity:
- +
  • Thermal Mass Flow Sensor
  • Thermal Mass Flow Sensor
Mouse over image to zoom

Product Specification

Further advantages of the Out of Liquid flow sensor include:

• Suitable for aggressive liquids

• High chemical resistance

• No contact between sensor and liquid

• Simple flow switches possible



The IST AG Out of Liquid flow sensors are optimal for measuring liquid flow in aggressive liquids.

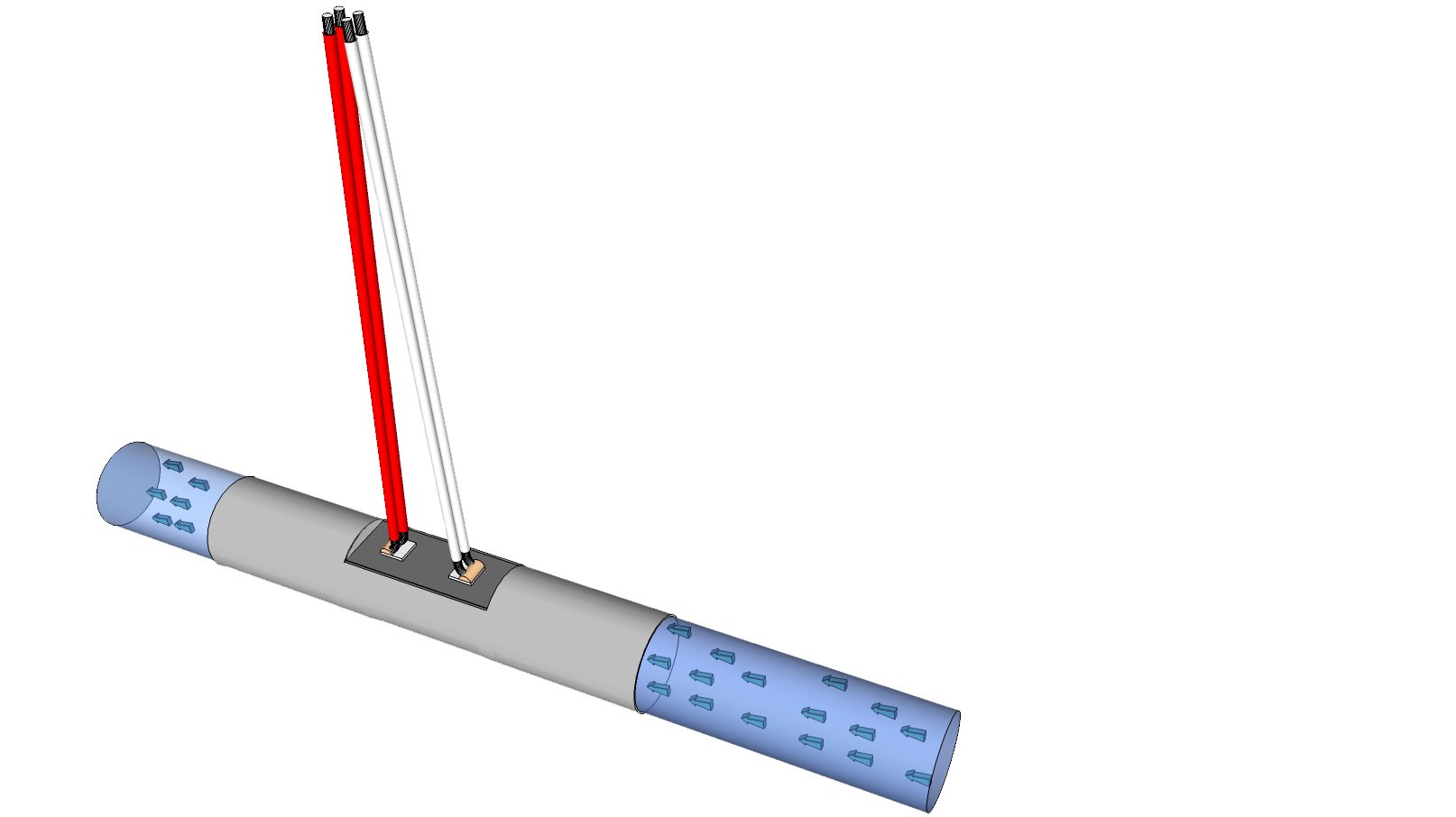

Illustration:1)



1) For actual size, see dimensions



Technical Sensor Data:

Tube dimensions (L x ØOUTER (x ØINNER) in mm)*

40.0 x 4.0 (x 3.8)

Operating temperature range

-50to +150

The temperature range has an impact on the accuracy, depending on variations in the thermal properties of flowing media

Heater resistance*

RH (0) = 50 Ω (red wires)

Temperature sensor resistance*

Rs (0) = 1000 Ω (white wires)

Operating measuring range

0 ml/min to 3000 ml/min (4 m/s)

Characteristics curve (TCR)

3850 ppm/K

Accuracy

IEC 60751 F0.6 (class C)

Sensor wire*

Cu/Ag, stranded wires PTFE isolated, AWG 30/19, 50 mm

Measurement frequency

1 kHz to 100 kHz (recommended 10 kHz)

Sensor dimensions (L x W x H x LW in mm)

2.3. x 2.0 x 1.3

Tube Material*

Stainless steel 1.4301/304

 *customer specific versions on request
