Tiny Differential Pressure Transmitter - JYB-DW

• Supply Voltage: 12 to 30VDC
• Operating Range: 0.07psi (500 Pa) to 0.7psi (5000 bar)
• Accuracy: ±1.0% (25°C)
• Response: <100ms
• Long Term Stability: <0.2% FS per year
• Temperature Range: -10 to 60°C
• 4 to 20 mA, 0 to 5VDC or RS-485/232

  • Model Number: JYB-DW
  • Data Sheet: Date Sheet File
- +

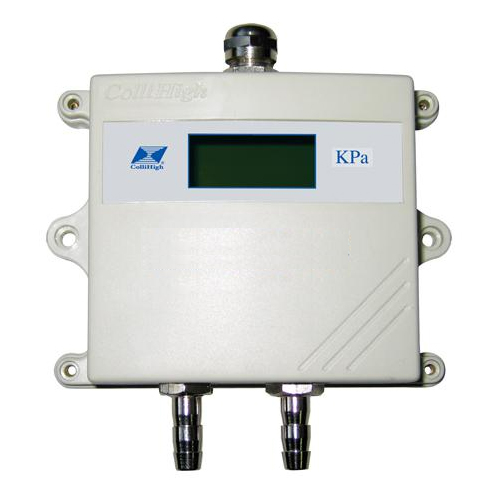

  • Tiny Differential Pressure Transmitter

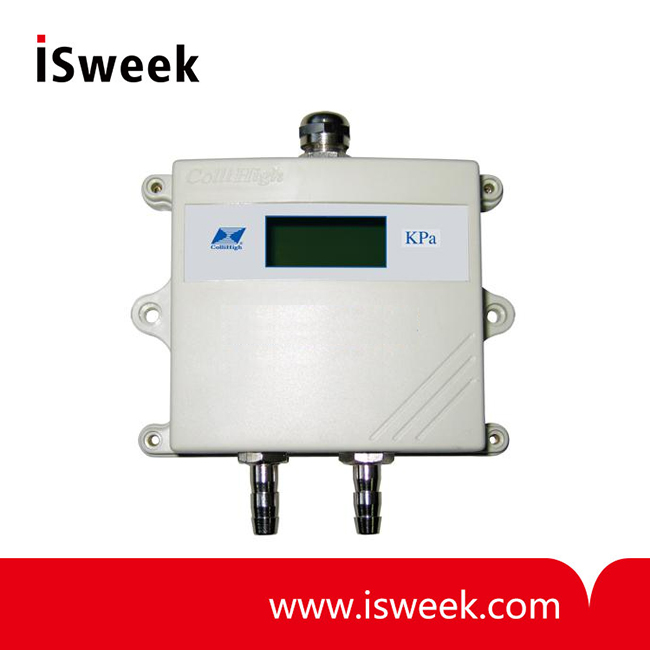

  • Tiny Differential Pressure Transmitter
Mouse over image to zoom

Product Specification

JYB-DW Tiny Differential Pressure Transmitter Introduction
Model JYB-DW is a cost efficient and tiny differential pressure transmitter for atmosphere in dry rugged environments. The transmitter uses our proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.

JYB-DW Tiny Differential Pressure Transmitter Use
This product Uses diffusion silicon sensor, specially used for differential pressure measurement. It has a wide range of applications in petroleum, chemical industry, environmental protection, medicine and other fields.

JYB-DW Tiny Differential Pressure Transmitter Characteristic
• 0.04 % FS/°F temperature effect
• 1.0 % accuracy
• 0.07 psig (500Pa)  to 0.7psig (5000Pa) range
• 4 to 20 mA, 0 to 5VDC or RS-485/232
• Enhanced temperature stability
• CE Certification

JYB-DW Tiny Differential Pressure Transmitter Specification

Pressure Measurement
Supply Voltage
12 to 30VDC
Operating Range
Any zero based full scale from 0.07psi (500 Pa) to 0.7psi (5000 bar)
Over Pressure
Two times for the full scale
Output Signal
Current two-wire 4 to 20mA (Load < 500Ω); Voltage 0 to 5VDC
Pressure Media
Dry gas without cankering
Performance Specifications
±1.0% (25°C)
Long Term Stability
<0.2% FS per year
Temperature Range
-10 to 60°C
Temperature Effects
Max 1.0% FS typical over 0 to 60°C
Max 1.5% FS typical over -20 to 85°C

Physical Connection
Pressure Connection
M8x1.0 screw-in adaptor
Electrical Connection
Cable Line

JYB-DW Tiny Differential Pressure Transmitter Ordering Codes
