ToughSonic 14 Ultrasonic Level & Distance Sensor - TSPC-30S1 Series

• Optimum Range: 10 ft. (3 m)
• Max Range: 14 feet (4.3 m)
• Temperature: -40 to 158 ℉ (-40 to 70℃)
• Humidity: 0 to 100% operating
• Outputs: Two selectable, plus serial data
• Transducer: Ruggedized piezoelectric
• Compensation: Temperature compensated
• Protection: NEMA-4X, NEMA-6P, IP68

  • Model Number: TSPC-30S1 Series
  • Data Sheet: Date Sheet File
- +

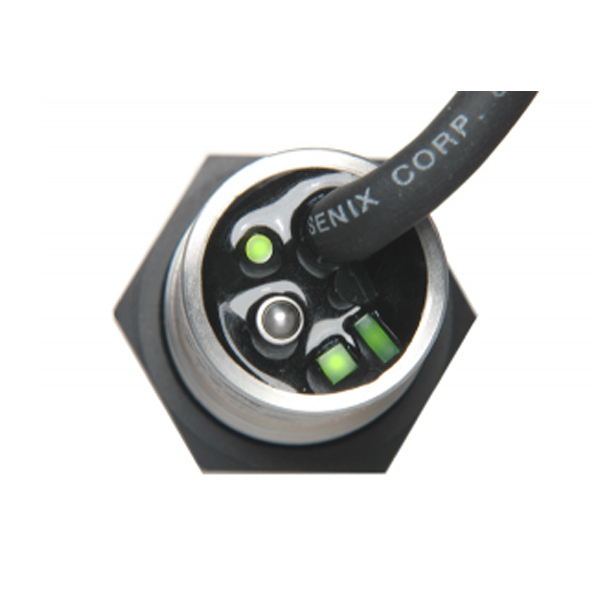

  • ToughSonic 14 Ultrasonic Level & Distance Sensor

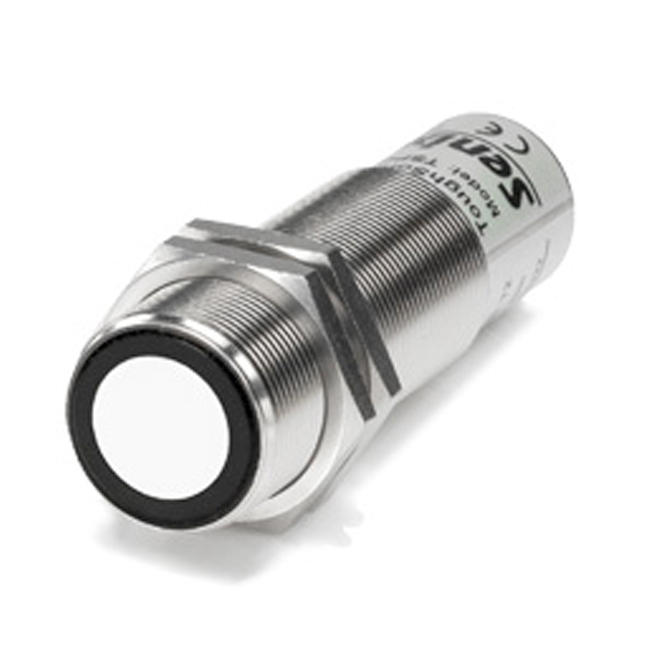

  • ToughSonic 14 Ultrasonic Level & Distance Sensor

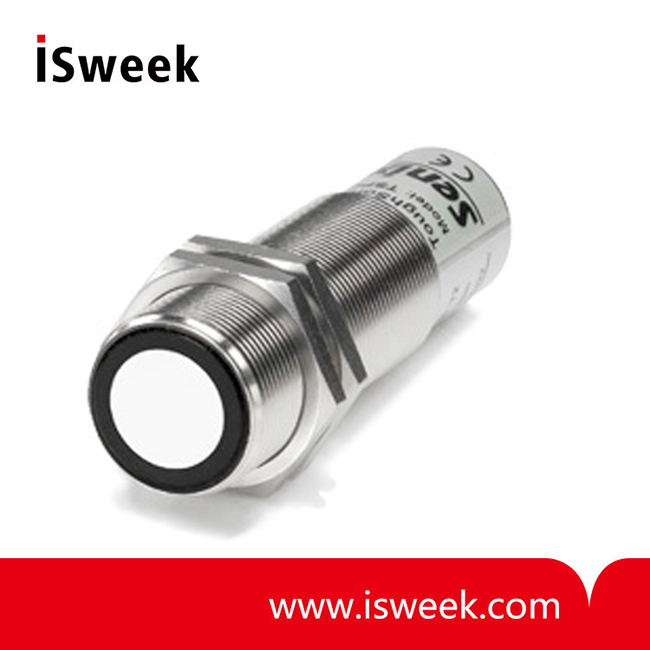

  • ToughSonic 14 Ultrasonic Level & Distance Sensor
Mouse over image to zoom

Product Specification

ToughSonic 14 Level & Distance Sensor
PC or Button Setup, Waterproof, Two Selectable Outputs

The ToughSonic 14 ultrasonic sensor has a maximum range of 14 feet (4.3 meters).  Like all ToughSonic sensors, it’s built for durability and ease of use in tough industrial environments. It’s fully submersible, corrosion resistant, shock resistant ultrasonic sensors are housed in 316 stainless steeland all around tough. It’s also fully configurable with  our SenixVIEW software. ToughSonic 14s include our famous “Teach” feature for push button configuration. This compact sensor is used around the world on remote liquid level systems, heavy equipment, factory automation applications and more. This is our most popular sensor.

For longer range applications or for chemically resistant sensors, please see our full line of ToughSonic and ToughSonic CHEM sensors.

Non-Contact Ultrasonic Distance & Level Measurement

ToughSonic ultrasonic sensors are built Tough with:
• 1.88 inch (48 millimeter) type 316 stainless steel housing.
• Sealed epoxy potting for wet and dirty applications.
• Ruggedized piezoelectric ultrasonic transducer, potted in place.
• Hardened ToughSonic internal electronics.
• UV resistant, potted-in, 9-wire cable.
• Short and overload protected input / output.

ToughSonic ultrasonic sensors are built Smart with:
• SenixVIEW configuration and analysis software controls more than 60 performance parameters and dozens of viewing, analysis and maintenance options.
• Multi-sensor network capable.
• Up to six simultaneous, industry standard outputs.

TSPC-30S1 Series Ultrasonic Level & Distance Sensor Specifications

Optimum Range

 10 ft. (3 m)

Max Range

 14 feet (4.3 m)


 Typ. < 4 in. (100 mm)


 Button "teach" or SenixVIEW

Case Material

 316 stainless steel


 Stored in non-volatile memory


 -40 to 158 ℉ (-40 to 70℃)


 Two selectable, plus serial data


 0 to 100% operating


 Ruggedized piezoelectric


 Temperature compensated




 Digital:0.0034 in. (0.086 mm); Analog:4099 steps (0-10 VDC), 3279 steps (4-20 mA)


 Nominal 0.2% of range @ constant temp. Affected by target, distance, environment

Update Rate

 20 Hz (50 ms), SenixVIEW adjustable; also affected by SenixVIEW filter selections

Output Selection

 Voltage & 4-20 mA current loop (defaults), switches, or a combination; see C ONNECTIONS below

Voltage Output

 0-10, 0-5 VDC or PC customized, 10 mA max; also push-button teachable endpoints

Current Loop

 4-20 mA or PC customized, current sourcing, max. loop 450Ω, teachable endpoints

Sinking Switch

 150 mA max. @ 40 VDC max., teachable set point & polarity, fault indication

Sourcing Switch

 150 mA max. @ input voltage, teachable set point & polarity, fault indication

RS-232, RS-485

 Modbus protocol, 9600 to 115200 baud, 8 data bits, 1 stop, no parity

SYNC feature

 Permits up to 32 sensors to operate in close proximity without interaction

Target Requirements


 Detects flat or curved objects. Surface must reflect ultrasound to sensor

Max. Distance

 Affected by size, shape, orientation of target (sound level reflected back to sensor), environment

 Restrict use to Optimum Range when using over a wide range of environmental conditions


 Flat surfaces should be oriented perpendicular to sensor output beam


 Unaffected by target color, light, transparency or other optical characteristics

TSPC-30S1 Series Ultrasonic Level & Distance Sensor Connections

Cable Connection





 10-30 VDC @ 60 mA maximum; Typical:45 mA @ 24 VDC (**)



 Power and interface common

Voltage Output

 White *

 0-10 VDC, 0-5 VDC or custom end values between 0 and 10 VDC

Current Loop Output

 Black *

 4-20 mA or user adjusted end values between 4 and 20 mA

Switch #1 Output

 Black *

 Sinking ("NPN") or Sourcing ("PNP"), user selected

Switch #2 Output

 White *

 Sinking ("NPN") or Sourcing ("PNP"), user selected

RS-232 out / RS-485-


 Serial data connection (depends on model - see part numbers)

RS-232 in / RS-485+


 Serial data connection (depends on model - see part numbers)

(*) Outputs on the black and white wires are SenixVIEW selected. The black wire options are 4-20 mA current loop or switch. White wire options are 0-10 VDC or switch. Switches can be sourcing or sinking. Max current loop resistance is derated below 15 VDC input voltage.
(**) At default update rate. Output currents not included. Sensitivity reduced below 15 VDC input voltage.

TSPC-30S1 Series Ultrasonic Level & Distance Sensor Part Numbers


 Number Description


 Serial RS-232 interface (PC COM port compatible)


 Serial RS-485 interface (allows addressable multi-sensor networks)
